Video Conference M8*P0.35 Thread Lens YT-3551P-B8

  • Low Distortion M8*P0.35 Thread Lens
  • Video conference lens φ7.9mm Imaging Circle with F2.4 Aperture
  • Face recognition lens OS02G10 1/2.9'' Sensor for High-Quality Imaging
  • Item No :

    YT-3551P-B8
  • Sensor :

    OS02G10
  • F/NO. :

    2.4
  • EFL :

    2.96
  • Optical TTL :

    14.59
  • Thread Size :

    M8*P0.35
  • FOV(H/V/D) :

    86°/54°/96°
  • Structure :

    2G2P+1IR



YT-3551P-B8: The Elite Choice for Video Conferencing Excellence



know more about YT-3551P-B8 Video Conferencing Lens parameters

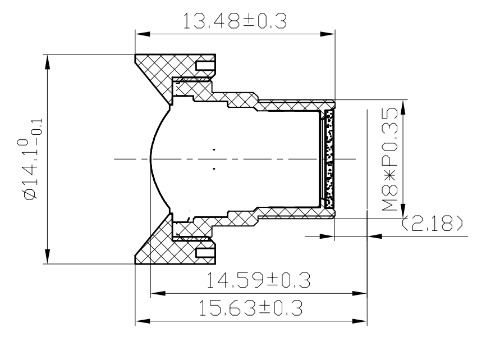

MAX Img-Circle( mm) ∅7.9
EFL( mm) 2.96
F/NO 2.4
Optical TTL 14.59
Mechanical TTL 15.63
BACK FOCAL LENGTH 3.21
FLANGE BACK LENGTH 2.18
TV DISTORTION -1.33%
RELATIVE ILLUMINATION ≥60%
CRA 19%
Pixel Size (μm) 2.8um*2.8um
Storage At Temperature -20℃~+70℃
Operating Temperature

-0℃~+50℃

Recent Camera Distance

0.2

WAVELENGTH

@420~620nm Tacg≥90%

Dust Level

IP5X

Structure

2G2P+1IR


φ7.9mm Imaging Circle with F2.4 Aperture for Superior Lighting


The YT-3551P-B8 lens is designed with a φ7.9mm imaging circle and a F2.4 aperture, ensuring optimal light capture for vibrant and lifelike video quality. This configuration provides a perfect balance of brightness and clarity, making every video conference feel more engaging and real.

3mm Optical Focal Length for Intimate and Clear Communication


With a 3mm optical focal length, the YT-3551P-B8 is crafted to deliver detailed and clear images that are essential for effective communication. This focal length is ideal for capturing facial expressions and nuances, ensuring that every participant in the video conference feels connected and seen.

Compact 14.6mm Optical Total Length for Sleek Integration


The compact 14.6mm optical total length of the YT-3551P-B8 allows for seamless integration into a variety of video conferencing setups. Its sleek design does not compromise on performance, fitting discreetly into any environment without drawing attention away from the communication.


OS02G10 1/2.9'' Sensor for High-Quality Imaging


The lens is optimized for the OS02G10 1/2.9'' sensor, which delivers two million pixels of high-quality imaging. This resolution ensures that every video is crisp and clear, providing the detail necessary for professional video conferencing.


Blue Glass Filter for Enhanced Color Fidelity


The YT-3551P-B8 comes equipped with a blue glass filter that enhances color fidelity and contrast, resulting in more accurate and pleasing colors in your video conferences. This filter also helps to reduce glare and protect the lens from potential damage.



Low Distortion M8*P0.35 Thread Lens for Accurate Representation


Featuring a low distortion design and an M8*P0.35 thread, the YT-3551P-B8 ensures that the images captured are true to life. This precision is crucial for video conferencing, where accurate representation of participants is key to effective communication.



Temperature Range of -20℃ to +70℃ for Reliable Performance


Built to withstand a wide range of temperatures, the YT-3551P-B8 maintains its performance in a temperature range of -20℃ to +70℃. This reliability ensures that your video conferencing system operates flawlessly, regardless of the environmental conditions.



In conclusion, the YT-3551P-B8 is the epitome of video conferencing lens technology, offering a combination of high-quality imaging, compact design, and robust performance. It's the perfect choice for businesses and individuals who demand excellence in their virtual communication, providing a lens that enhances every aspect of the video conferencing experience.
