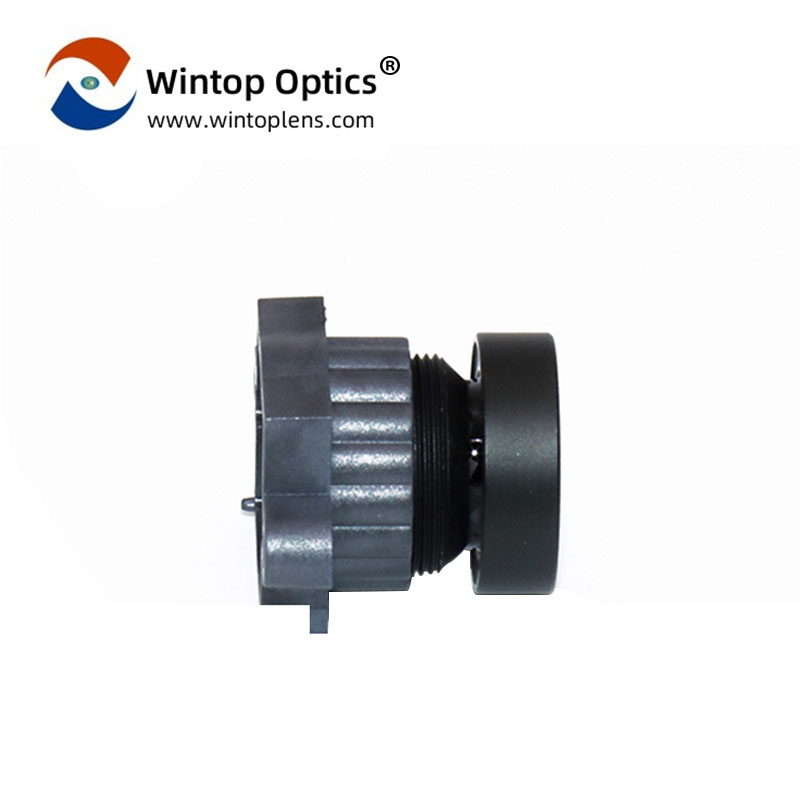

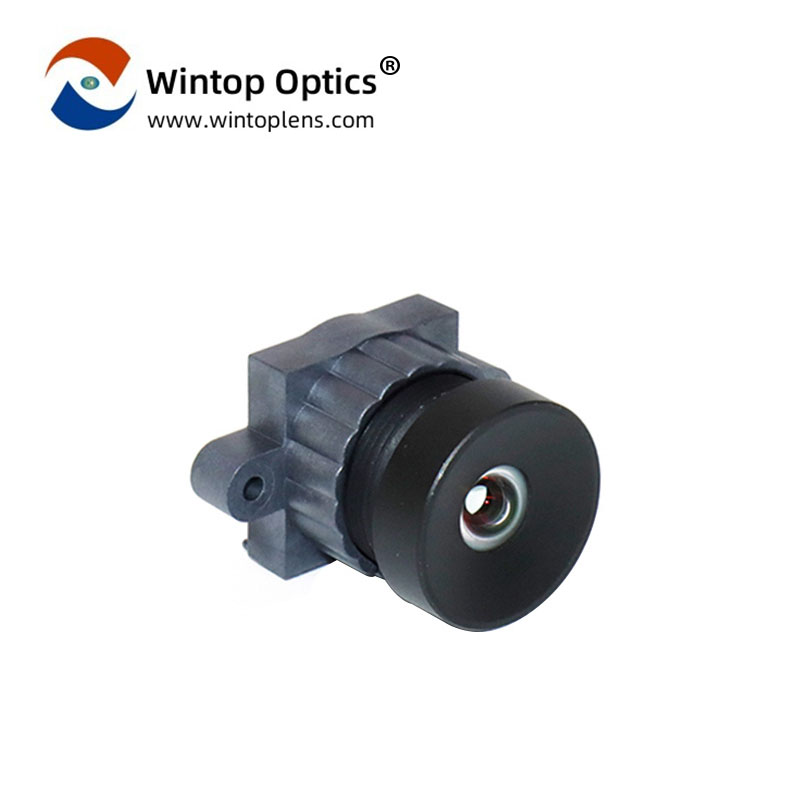

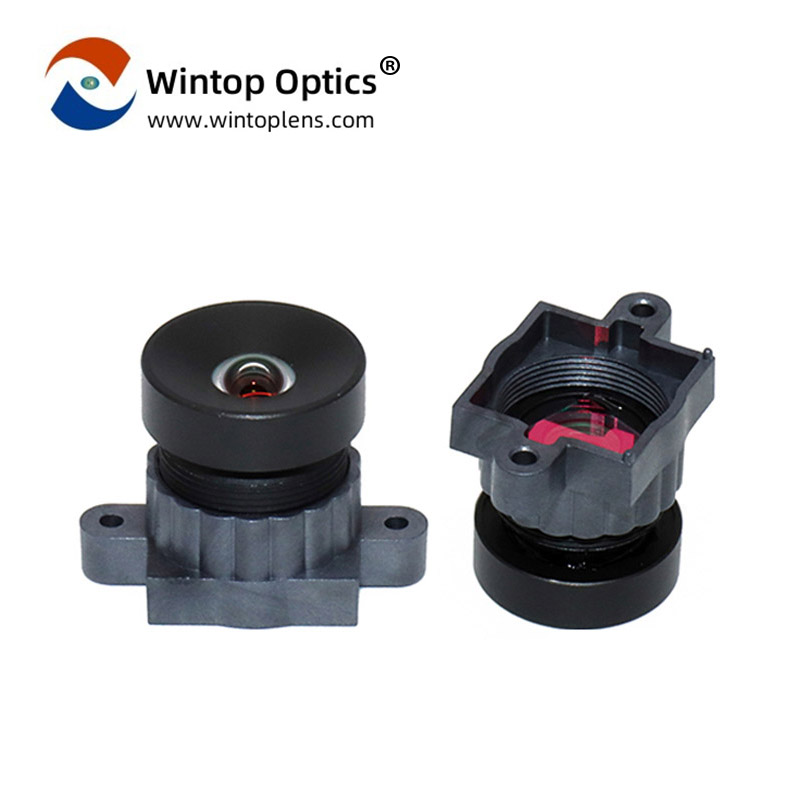

Facial Recognition Zero Distortion Lens M12*P0.5 YT-3555P-C1

  • Focal length 3.3mm combined with 14.5mm optical total length
  • JX-F37 Chip Compatibility for 1920*1080 Pixel Excellence
  • Zero Distortion lens for Accurate Facial Features M12*P0.5
  • Item No :

    YT-3555P-C1
  • Sensor :

    JX-F37
  • F/NO. :

    2.2
  • EFL :

    3.37
  • Optical TTL :

    14.5
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    76.5°/46.5°/84.5°
  • Structure :

    1G3P



YT-3555P-C1: The Benchmark Lens for Facial Recognition Precision



know more about YT-3555P-C1 Facial Recognition Lens parameters
MAX Img-Circle( mm) ∅6.75
EFL( mm) 3.37
F/NO 2.2
Optical TTL 14.5
Mechanical TTL 14.5
BACK FOCAL LENGTH 4.38
FLANGE BACK LENGTH 3.43
TV DISTORTION <-1.1%
RELATIVE ILLUMINATION >50%
CRA 14°
Pixel Size (μm) 2.7um*2.7um
Storage At Temperature -20℃~+70℃
Recent Camera Distance

0.2

WAVELENGTH

@420~600nm Tavg≥90%

@650±10nm T=50%

Dust Level

IP5X

Sensor

JX-F37


F2.2 Aperture for Enhanced Low-Light Facial Recognition


The YT-3555P-C1 is engineered with an F2.2 aperture that excels in low-light environments, ensuring that facial recognition remains accurate and reliable even in challenging lighting conditions. This advanced aperture design allows for superior light gathering, resulting in clear and detailed facial images.

3.3mm Optical Focal Length for Precise Imaging


The lens features a 3.3mm optical focal length, which is optimized for capturing high-quality images with precision. This focal length, combined with its 14.5mm optical total length, ensures that the YT-3555P-C1 is perfectly suited for facial recognition applications, providing the right balance between field of view and image detail.

JX-F37 Chip Compatibility for 1920*1080 Pixel Excellence


Tailored to match the JX-F37 chip with 1920*1080 pixels, the YT-3555P-C1 delivers five million high-definition, detailed pixels. This resolution ensures that every facial feature is captured with the utmost clarity, essential for accurate and efficient facial recognition systems.


650nm Filter for Optimal Infrared Performance


Equipped with a 650nm filter, the YT-3555P-C1 is designed to filter out unwanted infrared light, which can interfere with facial recognition accuracy. This specialized filter ensures that the lens operates at peak performance, even under infrared lighting commonly used in access control systems.


Zero Distortion at Just 1% for Accurate Facial Features


The YT-3555P-C1 boasts an incredibly low distortion rate of just 1%, ensuring that facial features are captured accurately and without distortion. This level of precision is critical for facial recognition technology, where even the slightest deviation can lead to misidentification.



M12*P0.5 Thread for Secure and Easy Integration


The lens is fitted with an M12*P0.5 thread, which provides a secure and easy connection to a variety of facial recognition systems. This standardized thread ensures quick installation and compatibility with existing infrastructure, simplifying the setup process.



Temperature Range of -20℃ to +70℃ for All-Season Reliability


The YT-3555P-C1 is built to operate reliably in a wide temperature range, from -20℃ to +70℃. This robust design ensures that the lens maintains its high performance, regardless of the season or climate, providing consistent facial recognition capabilities all year round.



In conclusion, the YT-3555P-C1 is the pinnacle of facial recognition lens technology, offering unparalleled precision, clarity, and reliability. Its advanced features make it the ideal choice for security-conscious businesses and institutions seeking to enhance their access control and surveillance systems with accurate and dependable facial recognition capabilities.
