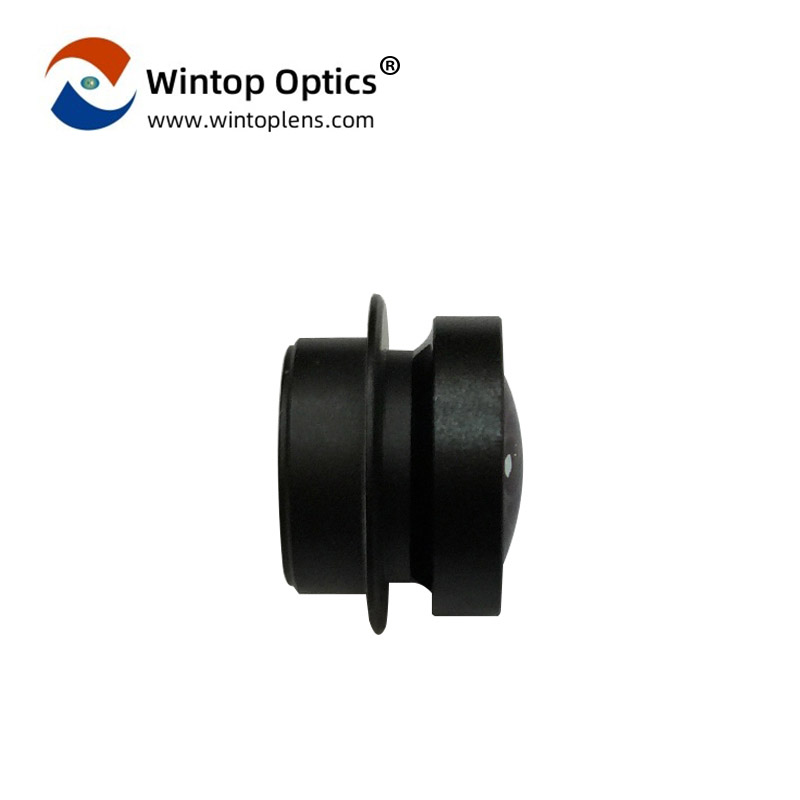

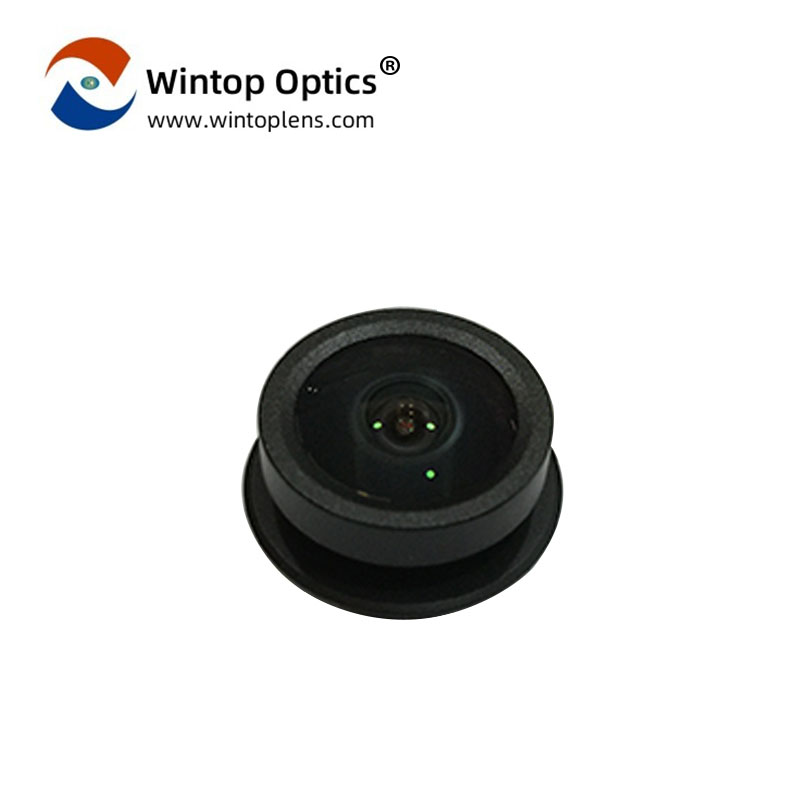

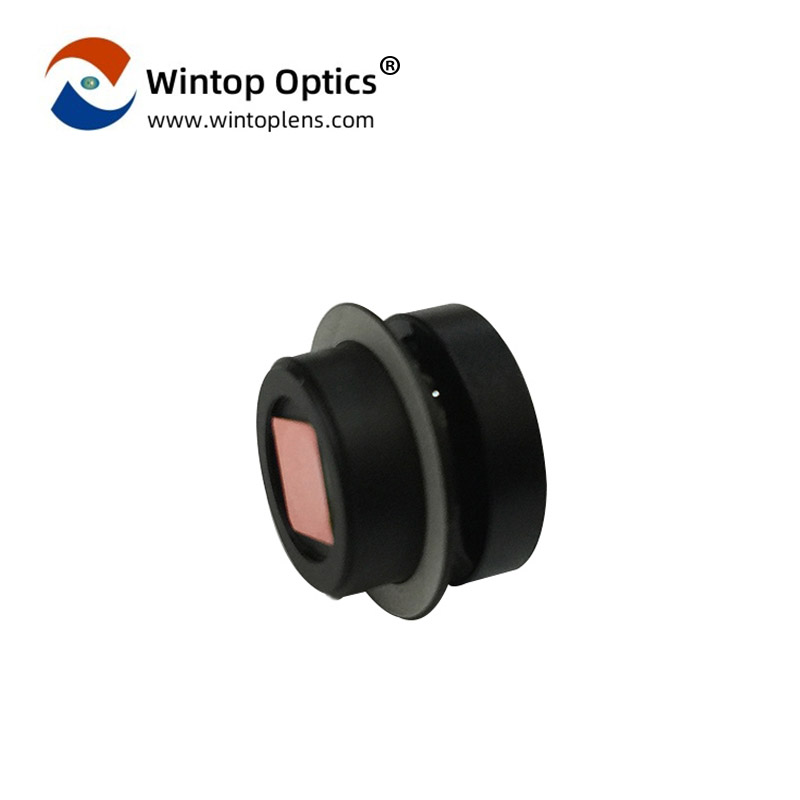

AA Gluing Car Rearview Camera Lens Wide-angle Fisheye Panoramic Lens YT-7018-E1-A

YT-7018-E1-A: The Omniscient Eye for Vehicle Surveillance and Beyond

Unparalleled Vision with Ultra-Wide Angle

The YT-7018-E1-A panoramic surveillance camera lens is a game-changer in the automotive and security camera industries. With an optical focal length of 1.67mm and a compact total optical length of 13.02mm, this lens offers a staggering 168° diagonal fov and 136° horizontal field of view. Its ultra-wide perspective ensures minimal blind spots, providing a comprehensive coverage that is second to none.

High-Definition Imaging with Low Distortion

Engineered to match the CMOS chip OX01E10, the YT-7018-E1-A delivers 2 million clear pixels with an output of 1340*1020. The lens's performance is further enhanced by its minimal distortion rate of less than -28% and a maximum imaging circle diameter of 5.8mm, ensuring that every detail is captured with precision and clarity.

Superior Night Vision for Enhanced Safety

Equipped with an F/NO.2.0 aperture, the YT-7018-E1-A optical lens offers exceptional night vision capabilities. This feature is crucial for maintaining visibility and safety during nighttime parking or driving, providing drivers with the confidence to navigate in low-light conditions.

Robust and Reliable Construction

Certified to the IATF16949 international standards, this automotive-grade lens is built to withstand the elements. With an IP69K rating for dust and water resistance and an operational temperature range of -40℃ to +85℃, the YT-7018-E1-A optical lens is designed for reliable performance in any environment.

Innovative AA Glue Joint Interface

The lens features an advanced AA glue joint interface with a 12mm AA Lens diameter, ensuring a adequate and stable connection. Custom dimensions are available to meet specific customer requirements, and the lens end cap diameter is 14mm. This innovative technology supports real-time environmental perception and feedback, enhancing the driving experience.

High-Transmittance Glass-Plastic Hybrid Lens

Constructed with a hybrid of glass and plastic in a 4G2P configuration and an IR filter, the lens offers high transmittance (greater than 90%) across the 420~600nm spectral band. This ensures that the lens captures clear and vibrant images, improving overall imaging performance.

Versatile Applications Beyond Vehicle Surveillance

The YT-7018-E1-A is not limited to automotive applications. Its exceptional imaging capabilities make it suitable for a wide range of surveillance needs, including smart home monitoring, USB surveillance, IP cameras, facial recognition cameras, and more. This versatility makes it a valuable asset for any security system.

In Summary

The YT-7018-E1-A optical lens is a testament to the power of innovation in optical technology. Its ultra-wide field of view, high-definition imaging, superior night vision, and robust construction make it an indispensable tool for vehicle surveillance and security applications. Experience the future of vision technology with the YT-7018-E1-A, where every angle is covered, and every detail is captured.
