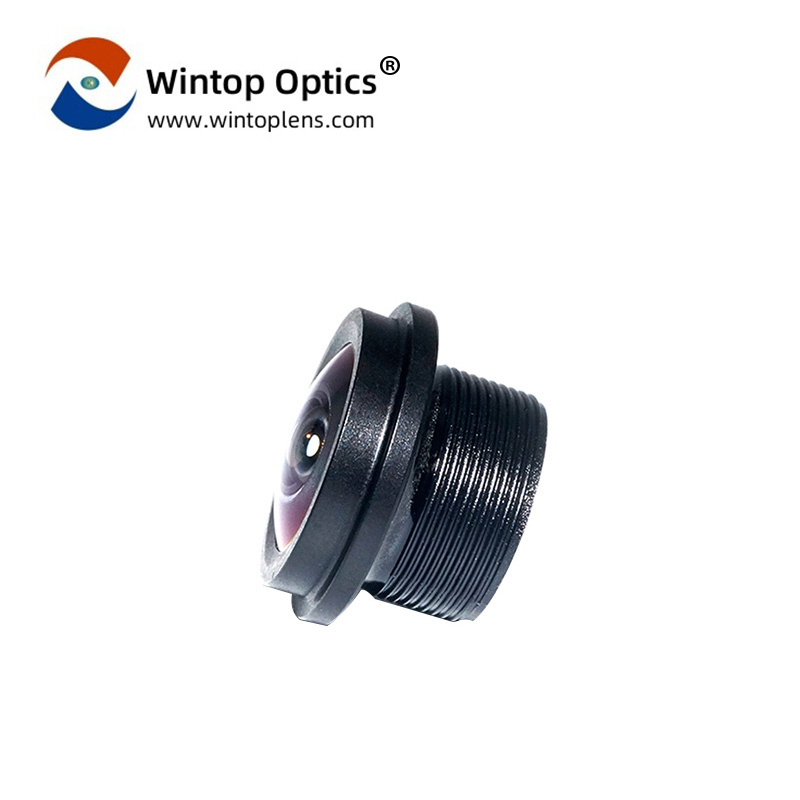

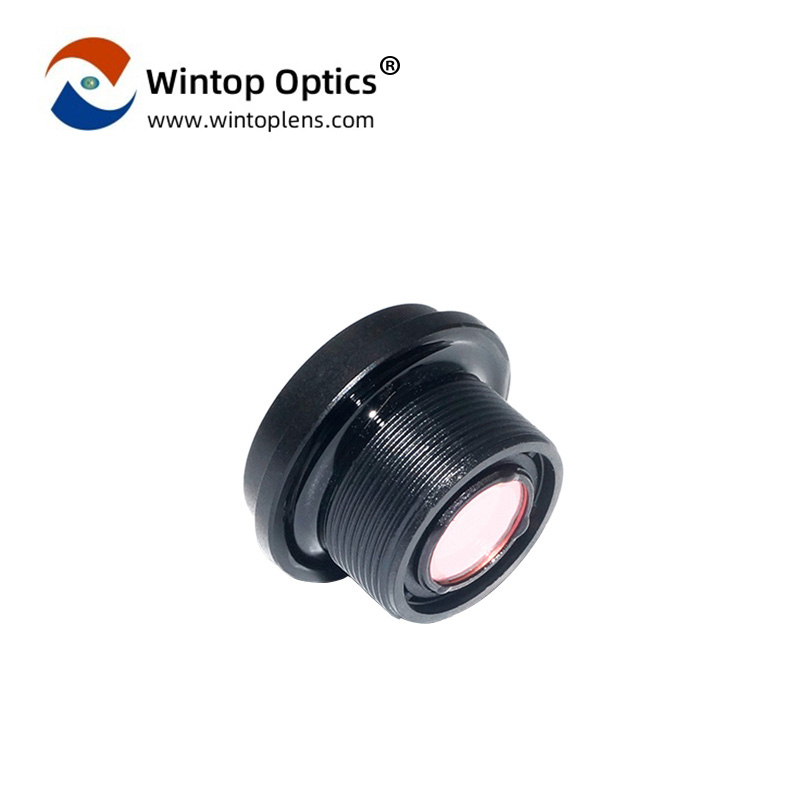

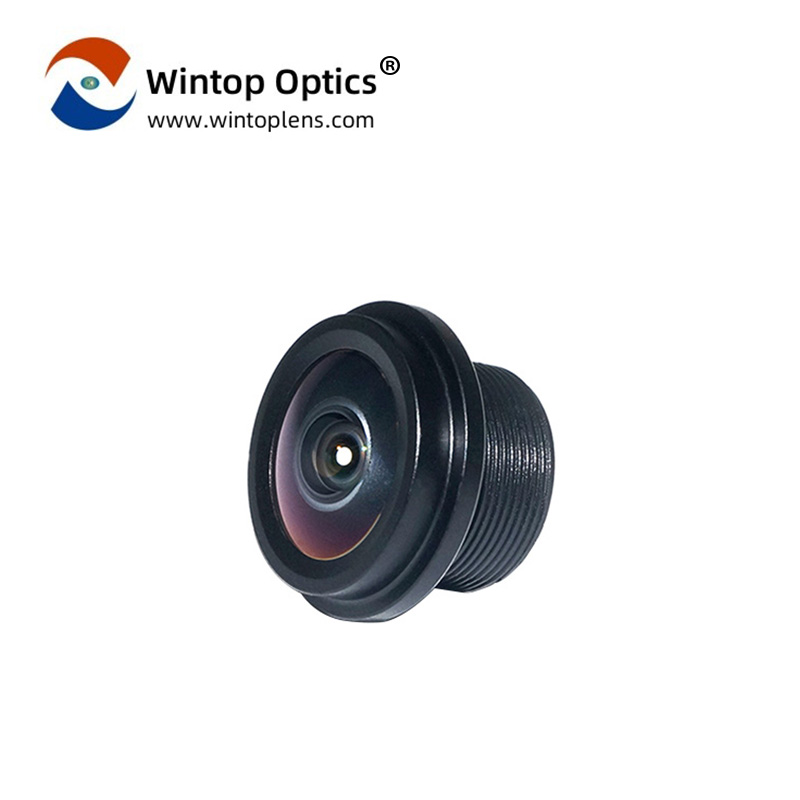

IMX225 Vehicle HD Rear View Camera Lens M12x0.5 Board Camera Lens YT-7018P-A1

YT-7018P-A1: The All-Seeing Rearview Lens Guardian for Vehicles

A Panoramic Perspective for Safety

The YT-7018P-A1 rearview monitoring camera lens is designed to provide an unparalleled 190° diagonal, 160° horizontal, and 113° vertical field of view. With an optical focal length of 1.67mm and a compact total optical length of 13.02mm, this lens ensures that every detail behind your vehicle is captured with precision, reducing blind spots and enhancing safety during reversing and parking.

High-Definition Imaging with Minimal Distortion

Pairing seamlessly with the CMOS sensor IMX225 1/3'' inch, the YT-7018P-A1 optical lens delivers 2 million clear pixels with an output of 1820*960. The lens's expansive field of view, combined with its low distortion rate of less than -1.1%, ensures that the images are true to life, providing a reliable visual aid for drivers.

Superior Night Vision with F/NO.2.0 Aperture

The F/NO.2.0 aperture of the YT-7018P-A1 allows for superior light intake, ensuring that the lens performs exceptionally well in low-light conditions. This feature is essential for maintaining visibility and safety during nighttime parking or driving, providing clear and bright images when you need them the most.

Robust and Reliable Automotive-Grade Lens

Certified to the IATF16949 international standards, this automotive-grade lens is built to withstand the harshest conditions. With an IP69K rating for dust and water resistance and an operational temperature range of -40℃ to +85℃, the YT-7018P-A1 optical lens is designed for reliable performance in any environment.

Customizable and Easy Integration

The lens features a standard M12*P0.5 interface, with the option for custom AA Gluing Lens solutions to meet specific customer requirements. The lens end cap diameter is 14mm, ensuring compatibility with a wide range of camera systems. This flexibility allows for easy integration into various vehicle models and configurations.

Advanced Lens Structure with High Transmittance

Constructed with a hybrid glass-plastic 4G2P structure and an IR filter, the lens offers high transmittance (greater than 90%) across the 420~600nm spectral band. This ensures that the lens captures clear and vibrant images, improving overall imaging performance.

Versatile Applications Across Diverse Fields

The YT-7018P-A1 is not limited to vehicle rearview monitoring. Its wide field of view and high imaging quality make it suitable for a variety of applications, including surround view monitoring, driver monitoring system, smart home surveillance camera,board camera lens, webcam monitoring camera,imaging module camera and video conference cameras.

In Summary

The YT-7018P-A1 is the epitome of automotive rearview camera technology, offering a combination of a wide field of view, high-definition imaging, superior night vision, and robust construction. Its advanced features make it an indispensable tool for vehicle safety and surveillance applications. Experience the future of driving with the YT-7018P-A1 optical lens, where every journey is safer and more reliable.
