Item No :
YT-5098P-I1Sensor :
1/3''CCD OV7960F/NO. :
F2.5EFL :
2.3mmOptical TTL :
13.04mmThread Size :
M12 mount LensFOV(H/V/D) :
125 degree/105 degree/160 degreeStructure :
3G1P+IR Filter

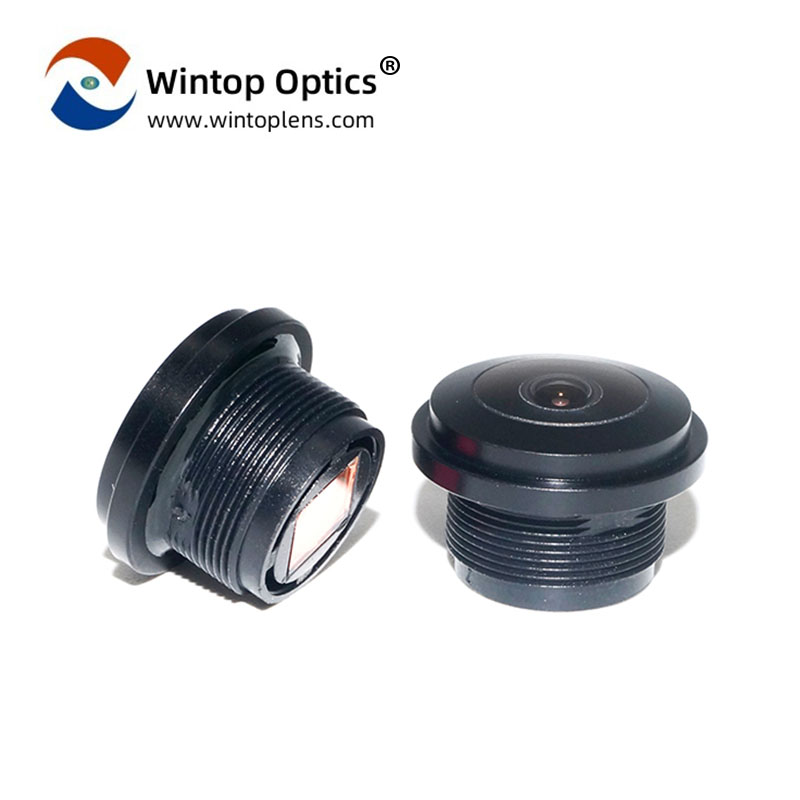

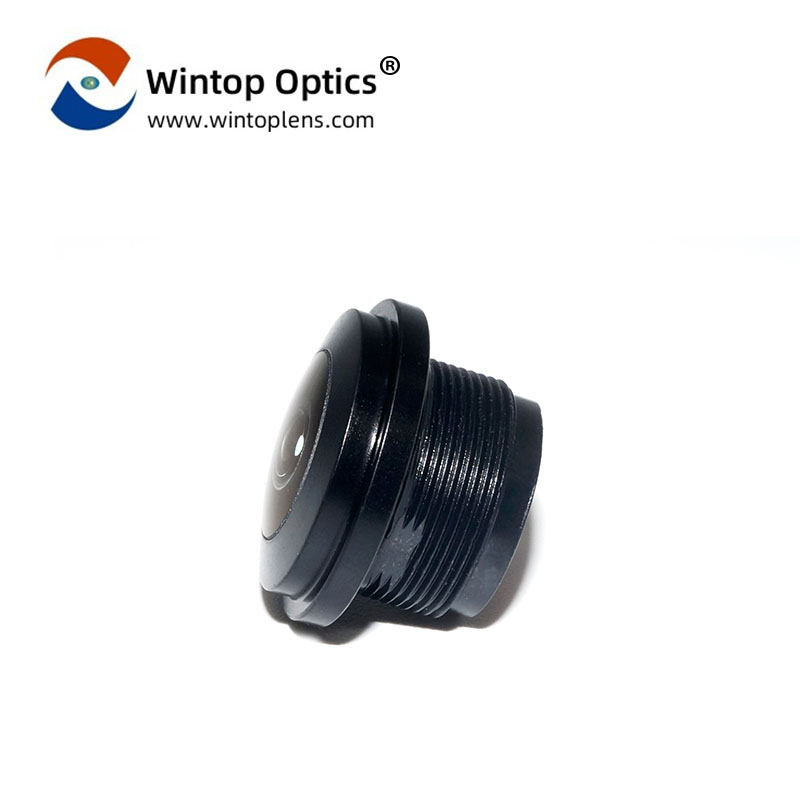

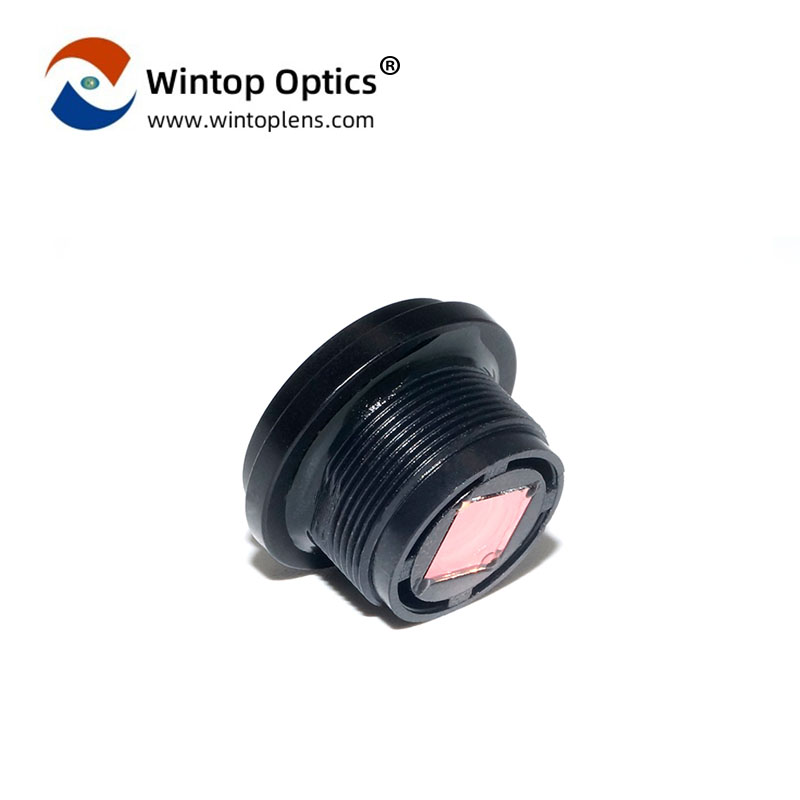

YT-5098P-I1: The Clarity of Vision for Safe Rearview Surveillance
know more about YT-5098P-I1 Car Rear View Camera Lens parameters | |
MAX Img-Circle( mm) | ∅6.20 |
EFL( mm) | 2.3 |
F/NO | 2.5 |
Optical TTL | 13.04mm |
BACK FOCAL LENGTH | 3.00mm |
FLANGE BACK LENGTH | 1.81mm |
Sensor |
1/3'' CCD OV7960 |
Uncompromising Rearview Coverage
Introducing the YT-5098P-I1, a car rearview lens meticulously crafted for comprehensive rear surveillance. With an optical focal length (EFL) of 2.3mm and a total length (TTL) of 13.04mm, this lens is designed to cover every angle behind your vehicle. The Back Focal Length (BFL) of 3.00mm ensures a clear and focused image projection, making the YT-5098P-I1 the guardian of your vehicle's rearview safety.
Ultra-Wide Field of View for Enhanced Surveillance
The YT-5098P-I1 car rearview lens is tailored to match the 1/3'' CCD sensor OV7960, offering a 160-degree diagonal field of view (Dfov), a 125-degree horizontal field of view (Hfov), and a 105° vertical angle. This ultra-wide coverage ensures that the driver has a complete view of the area behind the vehicle, significantly reducing blind spots and enhancing safety during reversing and driving.
F/NO2.5 Aperture for Reliable Visibility in Any Light
Equipped with an F/NO2.5 aperture, the YT-5098P-I1 automotive reverse camera lens ensures clear visibility in various lighting conditions. This feature is crucial for maintaining a clear view of the road and surroundings, day or night, ensuring that drivers have the confidence to make safe maneuvers.
Customizable Mounting Options for Seamless Integration
The car rearview lens features an M12*P0.5 mount lens, with a front cover diameter of 13mm, offering a secure and standardized connection to various camera systems. It can be customized to an AA Gluing lens according to specific project requirements, ensuring adaptability for different automotive applications.
Durable Construction with Advanced Optical Technology
The YT-5098P-I1 rear view lens is encased in a robust plastic barrel, showcasing its high-quality build. It includes a 650nm IR filter, enhancing the lens's performance in various lighting conditions and ensuring clear and vibrant images.
Rugged and Reliable for Extreme Conditions
With an IP67 rating for water and dust resistance and TS16949 certification, the YT-5098P-I1 m12 S-mount lens is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it suitable for all weather conditions.
Versatile Applications Beyond Rearview Monitoring
The YT-5098P-I1 car rear view lens's utility extends beyond rearview monitoring. It is suitable for a multitude of applications, including passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-5098P-I1 reverse camera lens is the epitome of automotive rearview lens technology, offering a combination of ultra-wide field of view, reliable visibility in various lighting conditions, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-5098P-I1, ensuring comprehensive surveillance and enhanced safety on the road.
In the world of optics, web searches are no substitute for our direct, comprehensive, customer-tailored application assistance. Send specific requirements email (lina@yuntal.com) to have a professional lens application engineer contact you for personal assistance.
Our lens specification include: AA lens,M12*P0.5 lens, M10*P0.5 lens, M9*P0.5 lens,M8*P0.5 lens, M7*P0.35 lens, 2 megapixel lens, 3 megapixel lens, 5 megapixel lens, 12 megapixel lens, 14 megapixel lens, 16 megapixel lens,low distortion lens,zero distortion lens,F1.6 Lens, F2.0 lens,F2.2 lens, F2.4 lens, F2.5 lens, F2.8 lens....Support Customized Lenses!
