Item No :
YT-5018P-A1Sensor :
OV2312(1600*1300)F/NO. :
F2.0EFL :
1.67mmOptical TTL :
13.02mmThread Size :
M12 LensFOV(H/V/D) :
161 degree/132 degree/200 degreeStructure :
4G2P+IR Filter
YT-5018P-A1: The Rear Visionary for Vehicle Safety
know more about YT-5018P-A1 Car Surround View Camera Lens parameters | |

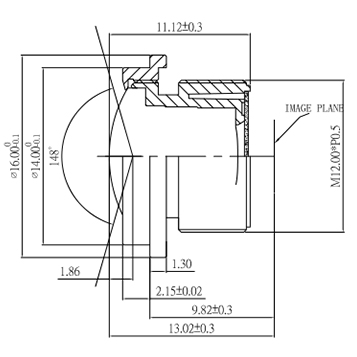

MAX Img-Circle( mm) | ∅5.80 |
EFL( mm) | 1.67 |
F/NO | 2.0 |
Optical TTL | 13.02mm |
BACK FOCAL LENGTH | 2.91mm |
FLANGE BACK LENGTH | 1.90mm |
Sensor |
OV2312(1600*1300) |
Unparalleled Optics for Vehicle Surveillance
The YT-5018P-A1 Rear view lens is a 360 panoramic surveillance camera lens designed specifically for automotive applications, featuring a EFL1.67mm optical focal length and a compact TTL13.02mm optical total length with a Back Focal Length (BFL) of 2.91mm. This precision engineering ensures a wide field of view that is essential for comprehensive vehicle monitoring.
Ultra-Wide Angle Lens for Complete Coverage
This ultra-wide angle fisheye lens YT-5018P rear view lens is tailored to match the CMOS sensor IMX307, delivering 2 million clear pixels with a 1920*1080 resolution. The lens offers a DFOV of 200 degrees, an Horizontal Field of View (HFOV) of 188 degrees, and a vertical angle of 106°, ensuring that no blind spots are left undetected. The maximum imaging circle diameter of 5.8mm captures the entirety of the vehicle's surroundings.
F/NO.2.0 Aperture Lens for Enhanced Night Vision
Equipped with a large F/NO.2.0 aperture, the YT-6018P-A1 Rear view camera lens excels in low-light conditions, providing clear night vision capabilities. This feature is crucial for maintaining visibility and safety during nighttime driving, ensuring that drivers have a clear view of their surroundings at all times.
Customizable Mounting Options for Seamless Integration
The Rear view lens features an M12 mount (M12*P0.5), with a lens end cover diameter of 14mm, allowing for easy integration with various vehicle camera systems. Custom adjustments can be made according to specific project requirements, ensuring a perfect fit for any automotive application.
Durable Construction with Advanced Lens Technology
The YT-5018P-A1 rear view lens is housed in a robust plastic barrel and utilizes a hybrid glass-plastic lens (4G2P lens) for superior optical performance. The inclusion of an IR filter enhances the lens's capabilities in various lighting conditions, while its excellent MTF performance and reliability ensure high-quality imaging.
Versatile Applications Beyond Vehicle Surveillance
The YT-5018P-A1 rear view lens's wide-ranging applications extend beyond vehicle surveillance. It is suitable for 360-degree panoramic cameras, backup/park assist cameras, intelligent robot cameras, AI cameras, consumer electronics, action cameras, USB high-definition cameras, dash cameras, rearview cameras, front view cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-5018P-A1 car camera lens is the epitome of automotive panoramic surveillance technology, offering a combination of ultra-wide angle imaging, superior night vision, and robust construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-5018P-A1, ensuring that every perspective is captured with clarity and precision for a safer and more informed driving experience.
In the world of optics, web searches are no substitute for our direct, comprehensive, customer-tailored application assistance. Send specific requirements email (lina@yuntal.com) to have a professional lens application engineer contact you for personal assistance.
Our lens specification include: AA lens,M12*P0.5 lens, M10*P0.5 lens, M9*P0.5 lens,M8*P0.5 lens, M7*P0.35 lens, 2 megapixel lens, 3 megapixel lens, 5 megapixel lens, 12 megapixel lens, 14 megapixel lens, 16 megapixel lens,low distortion lens,zero distortion lens,F1.6 Lens, F2.0 lens,F2.2 lens, F2.4 lens, F2.5 lens, F2.8 lens....Support Customized Lenses!
