6.1mm Vehicle Intelligent Assisted Driving ADAS Camera Lens YT-7598-C1

YT-7598-C1: The Sentinel of Advanced Driver Assistance Systems (ADAS)

Introducing the YT-7598-C1, a premium automotive ADAS camera lens designed to set new standards in intelligent driving assistance. This lens is meticulously crafted to meet the rigorous demands of the automotive industry, featuring IATF16949 international certification and an IP69K rating for dust and water resistance, ensuring reliable operation in the harshest environments.

Robust Construction for Extreme Temperatures

Built to withstand a wide range of temperatures from -40℃ to +85℃, the YT-7591-C1 is the epitome of resilience. Whether traversing icy roads or scorching highways, this lens maintains its performance without fail, providing unwavering support to your vehicle's ADAS.

Optimized Optical Specifications for Precision

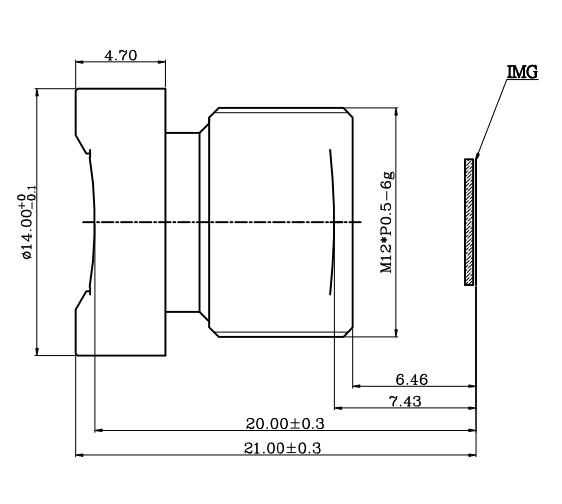

The lens boasts a 6.12mm optical focal length and a total optical length of 20mm, with a mechanical total length of 21mm and an optical rear focus of 7.43mm. These precise measurements are tailored to deliver clear, high-resolution images that are essential for ADAS functionalities.

High-Definition Imaging with IMX462 CMOS Sensor Compatibility

Pairing seamlessly with the 1/2.7'' inch IMX462 CMOS sensor, the YT-7598-C1 achieves a 2-million-pixel high-definition clarity. This resolution, coupled with a 60° diagonal and 56° horizontal field of view, ensures comprehensive coverage with minimal distortion (less than -5%), providing a true representation of the road ahead.

Superior Low-Light Performance

Equipped with an F/NO.1.6 aperture, the YT-7598-C1 allows for substantial light intake, enhancing visibility in low-light conditions. This feature is crucial for night-time driving, offering drivers a clear view of the road and contributing significantly to their safety.

Standard M12*P0.5 Thread for Easy Integration

Featuring a standard M12*P0.5 thread, the YT-7598-C1 ensures easy and secure attachment to various ADAS camera systems. The 14mm lens end cap diameter further ensures compatibility and a snug fit, facilitating quick installation and adjustment.

High-Transparency Glass Lens Structure

The lens structure consists of a 6G glass configuration and an IR filter, which together offer high transmittance (greater than 90%) in the 420~620nm spectral band. This ensures that the lens delivers clear and vibrant images, enhancing the overall imaging performance of the ADAS.

Unmatched Value for Investment

The YT-7598-C1 offers exceptional value, combining high performance with cost-effectiveness. It is an investment that not only improves the safety and functionality of your vehicle but also represents a smart choice for those seeking quality and affordability.

In conclusion, the YT-7598-C1 is more than just an ADAS camera lens; it's a guardian of the road that empowers drivers with clarity, precision, and safety. With its advanced features and robust construction, this lens is the perfect ally for the evolving landscape of intelligent transportation systems.
