Item No :
YT-7625-J8Sensor :
1960*1080 2.79umF/NO. :
f2.0 lensEFL :
3.07mmOptical TTL :
13.54mmThread Size :
M8 mount LensFOV(H/V/D) :
102°/57°/120°Structure :
4E+ blue glass IR FilterYT-7625-J8: The Aerial Eye for Toy Drone Wonders
know more about YT-7625-B8 HD Aerial Toy Drone Camera Lens parameters |
||||
Img-Circle( mm) | ∅6.9 | |||
EFL( mm) | 3.07mm | |||
F/NO. | 2.0 | |||
Optical TTL | 13.54 | |||
Mechanical TTL | 13.71 | |||
BACK FOCAL LENGTH | 4.22 | |||
FLANGE BACK LENGTH | 2.98 | |||
TV DISTORTION | -42% | |||
RELATIVE ILLUMINATION | 50% | |||
CRA | 18° | |||
Pixel Size (μm) | 2.79um*2.79um | |||
Storage At Temperature | -40℃~+85℃ | |||
Recent Camera Distance | 0.2 | |||
Infrared | Non-infrared | |||
WAVELENGTH | @420~600nm Tavg≥90% @650nm±10nm T=50% |
|||
Dust Level | IP69K | |||
STRUCTURE | 4E+ Blue Glass IR Filter |
Captivating Clarity from the Skies

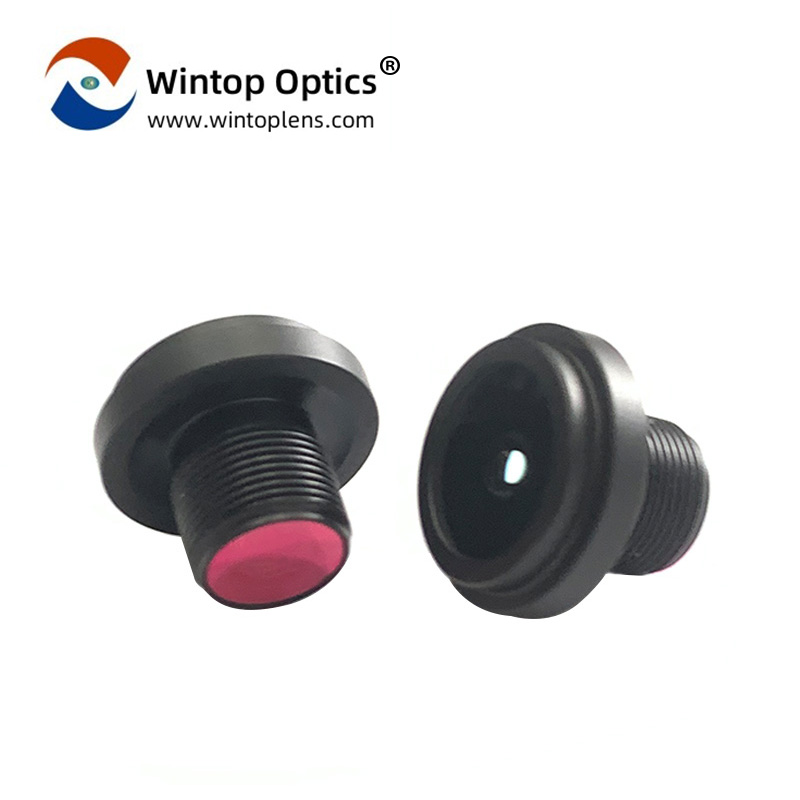

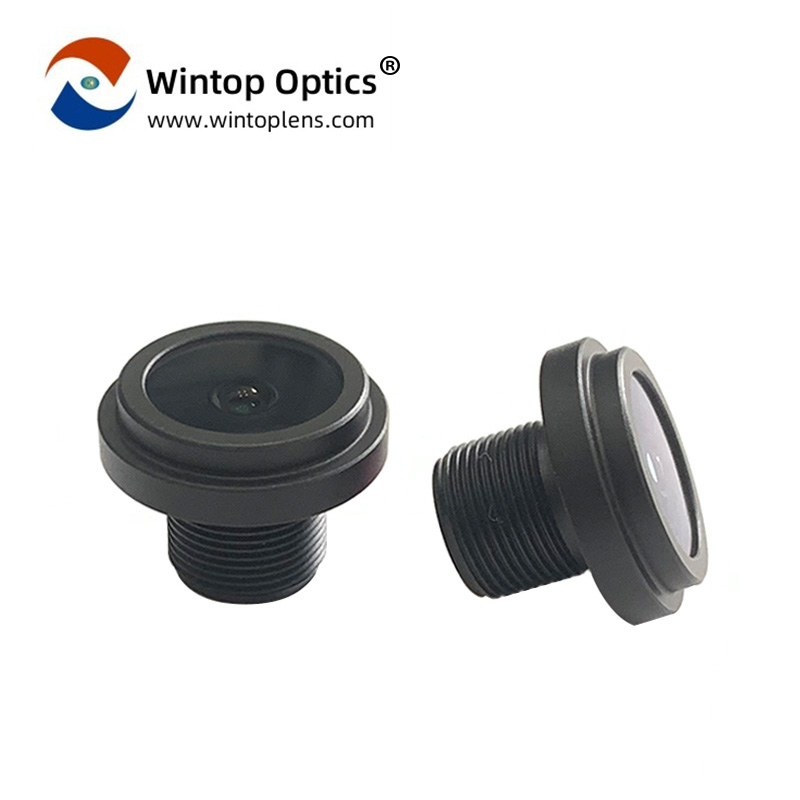

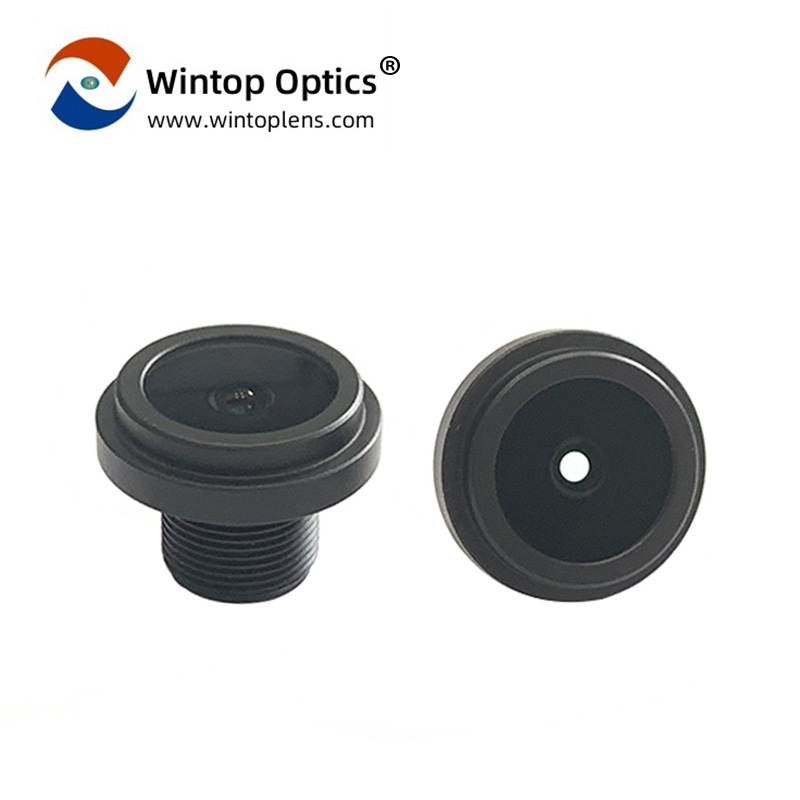

The YT-7625-J8 1080P lens is a high-definition drone camera lens designed for the aerial enthusiasts who demand the best in visual capture. With an optical focal length (EFL) of 3.07mm and a total length (TTL) of 13.54mm, this lens offers a detailed perspective that makes every flight a visual delight.
Ultra-Wide Field of View for Boundless Discovery
The YT-7625-J8 sport camera lens boasts a 120-degree diagonal field of view (Dfov), a 102-degree horizontal field of view (Hfov), and a 57° vertical angle, ensuring that your toy drone captures the full expanse of the scenery below. The maximum imaging circle diameter of 6.9mm leaves no corner of the world unseen.
F/NO2.0 Aperture for Exceptional Light Capturing
Equipped with an F/NO2.0 large aperture, the YT-7625-J8 pocket gimbal camera Lenses excel in various lighting conditions, ensuring that your aerial footage is crisp and clear, whether you're soaring during the golden hour or navigating through the shadows.
High-Definition Imaging with 3MP Resolution
Tailored to match the CMOS sensor with 1080P resolution, the YT-7625-J8 uav lens delivers 3MP high-definition imaging. This clarity allows for the capture of intricate details and vibrant colors, perfect for the discerning eye of aerial photographers and videographers.
Customizable Mounting Options for Flexible Use
The toy drone lens features an M8 mount, with a front cover diameter of 12mm and a 14mm step, offering a secure and standardized connection to various drone camera systems. It can be customized to AA Gluing lenses or other thread sizes such as M12, according to specific project requirements.
Durable Metal Barrel with Advanced Optical Technology
The YT-7625-J8 wide angle fisheye lens is encased in a robust metal barrel, showcasing its high-quality build. With a blue glass IR filter included for better MTF performance, this lens is designed to meet diverse needs and can be customized without the filter for different applications.
Rugged and Reliable for Extreme Conditions
With an IP69K rating for water and dust resistance and TS16949 certification, the YT-7625-J8 uav lens is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it suitable for all weather conditions.
Versatile Applications for Diverse Fields
The YT-7625-J8 m8 mount lens's utility extends beyond toy drones. It is suitable for handheld gimbals, pocket cameras, smart robot cameras, car 360-degree surveillance, side view monitoring, smart door locks, facial recognition systems, driving recorders, backup cameras, passenger and driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, and IP cameras.
In Summary
The YT-7625-J8 camera lens is the epitome of drone camera lens technology, offering a combination of ultra-wide field of view, high-definition imaging, and durable construction. Its advanced features make it an indispensable tool for aerial photography and videography. Experience the versatility and excellence of the YT-7625-J8, ensuring that every flight captures the world in stunning clarity.
