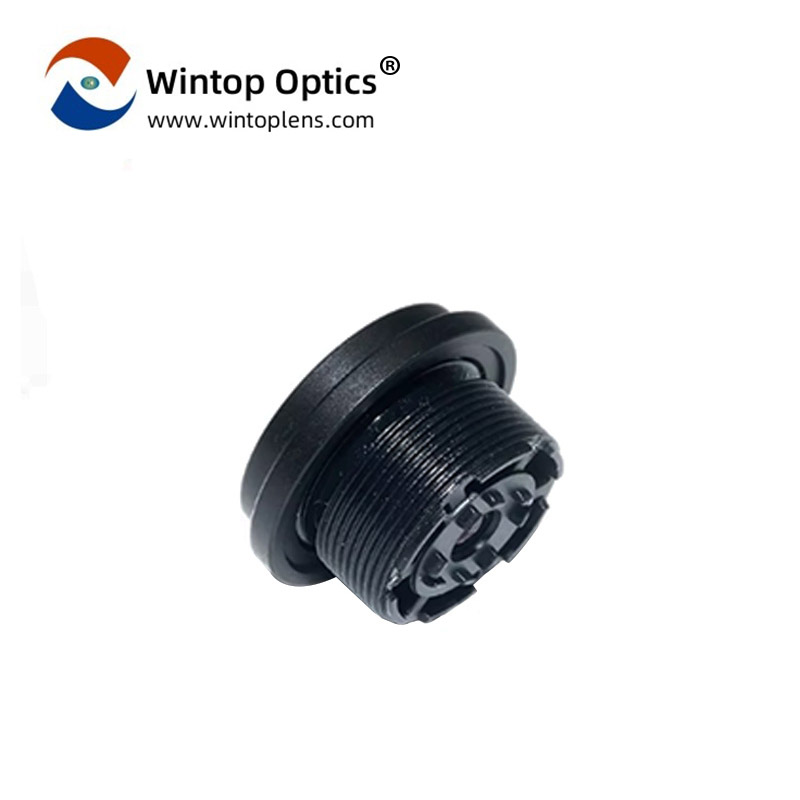

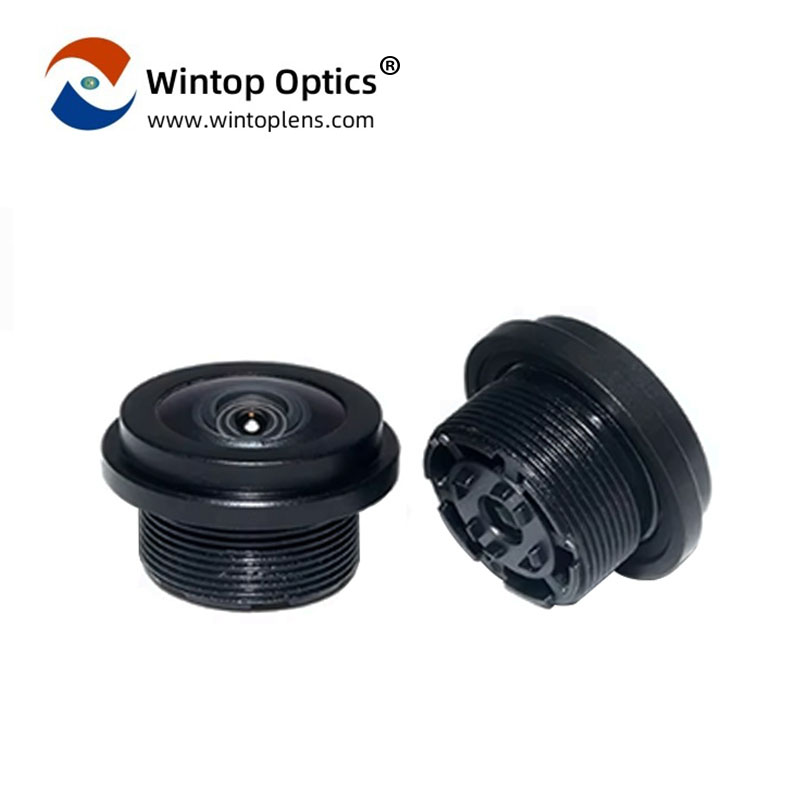

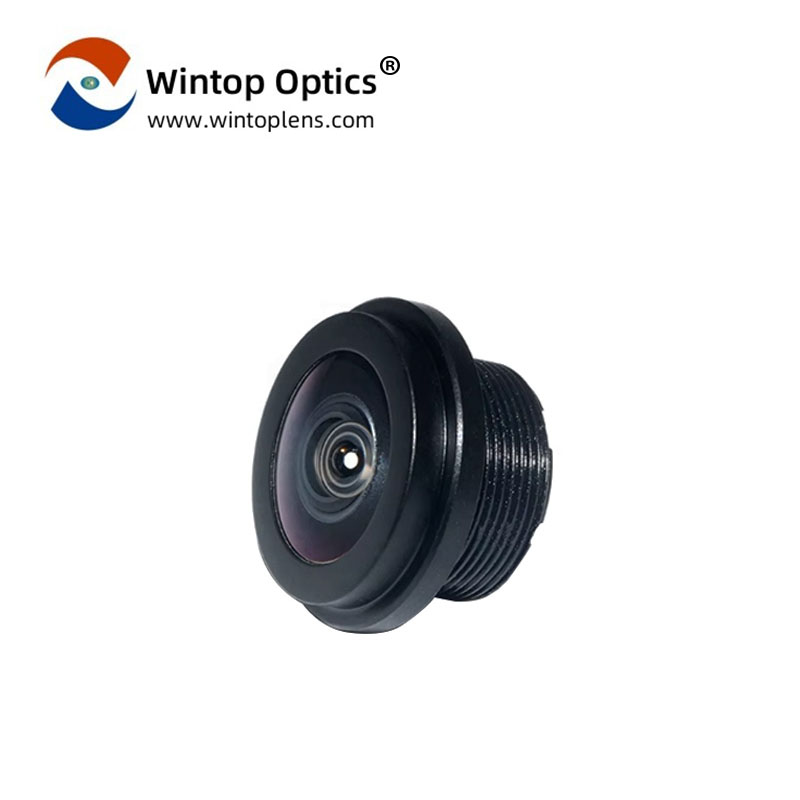

M12 Mount 360 ° Panoramic Image Surround Camera Lens 2M Megapixel Video Doorbell Lens YT-6045P-A1

  1. Precise thermal compensation to maintain good quality in a variety of environments and applications
  2. Good lighting, maintaining clear imaging in low-light environments
  3. Strictly control stray light, no obvious ghost shadow under strong light irradiation
  4. The lens can be attached with anti-fog function
  • Item No :

    YT-6045P-A1
  • Sensor :

    GC2053
  • F/NO. :

    2
  • EFL :

    1.29
  • Optical TTL :

    13.01
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    190/112/190
  • Structure :

    2G3P+1R
know more about YT-6045P-A1  Lens parameters
Img-Circle( mm) ∅4.8
EFL( mm) 1.29
F/NO. 2
Optical TTL 13.01
Mechanical TTL 13.01
BACK FOCAL LENGTH 3.45
FLANGE BACK LENGTH 2.67
TV DISTORTION -38%
RELATIVE ILLUMINATION 50%
CRA 25°
Pixel Size (μm) 2.8um*2.8um
Storage At Temperature -40℃~+85℃
Recent Camera Distance 0.2
Infrared Non-infrared
WAVELENGTH Tavg=90%@420-600mm
Dust Level IP67K
STRUCTURE 2G3P+1R



Highlight people: A larger aperture (smaller F-value) can produce a shallower depth of field, making the subject more prominent and the background blurred. This can make the person in front of the doorbell clearly visible, while the background is blurred.


Safety: The high-resolution video doorbell also has night vision, which can provide clear black-and-white or color images in low-light conditions. This means you can still get a clear view at night or in low-light environments, keeping your family safe.


View Angle Adjustment: Video doorbells typically need to cover a wide area to ensure a panoramic view of the doorway can be captured. Lenses with the M12 mount can offer different focal length and view angle options, allowing users to adjust the lens's field of view according to specific installation needs.User experience: A visual doorbell with IP67 waterproof rating can provide users with a more reliable experience. Users don't need to worry about the device malfunctioning in rainy or humid environments, and can use the doorbell function at any time to check visitors or monitor the situation at the door.


Reduce Light Interference: Visual doorbells are usually installed outdoors and may be subject to interference from direct sunlight or other strong light. Filters can block or reduce the strong light entering the lens and prevent image overexposure or light spots from appearing, thus improving image quality. Visual doorbells are usually installed outdoors and may be subject to interference from direct sunlight or other strong light. Filters can block or reduce the strong light entering the lens and prevent image overexposure or light spots from appearing, thus improving image quality.


Security surveillance: 360 ° panoramic cameras can cover a wider area and provide a more comprehensive monitoring field of view. It can be used in driving recorder lenses, CCTV lenses, video conference lenses, facial recognition lenses, intelligent machine lenses and other related fields.
