Item No :
YT-7625-A8Sensor :
1960*1120 2.9umF/NO. :
f2.0 lensEFL :
3.07mmOptical TTL :
13.54mmThread Size :
M12 mount LensFOV(H/V/D) :
105°/59°/123°Structure :
4E+ blue glass IR FilterYT-7625-A8: The Smart Lock's Eye for Enhanced Security and Clarity
know more about YT-7625-A8 Smart Home Doorbell Lens parameters |
||||
Img-Circle( mm) | ∅6.9 | |||
EFL( mm) | 3.07mm | |||
F/NO. | 2.0 | |||
Optical TTL | 13.54 | |||
Mechanical TTL | 13.71 | |||
BACK FOCAL LENGTH | 4.22 | |||
FLANGE BACK LENGTH | 2.98 | |||
TV DISTORTION | -15.5% | |||
RELATIVE ILLUMINATION | 50% | |||
CRA | 16° | |||
Pixel Size (μm) | 2.9um*2.9um | |||
Storage At Temperature | -40℃~+85℃ | |||
Recent Camera Distance | 0.2 | |||
Infrared | Non-infrared | |||
WAVELENGTH | @420~600nm Tavg≥90% @650nm±10nm T=50% |
|||
Dust Level | IP69K | |||
STRUCTURE | 4E+ Blue Glass Filter |
Precision Focus for Smart Home Security
The YT-7625-A8 M12 Lens is a cutting-edge lens designed for smart doorbell and facial recognition camera systems, offering an optical focal length (EFL) of 3.07mm and a total length (TTL) of 13.54mm. With a Back Focal Length (BFL) of 4.22mm, this lens ensures precise focus and clarity for smart door lock monitoring.
Ultra-Wide Field of View for Complete Coverage
Featuring a diagonal field of view (Dfov) of 123 degrees, a horizontal field of view (Hfov) of 105 degrees, and a vertical angle of 59°, the YT-7625-A8 consumer electronic lens provides an extensive view that covers every angle. The maximum imaging circle diameter of 6.9mm captures the full spectrum of activity, ensuring no detail is missed.
F/NO2.0 Aperture for Clear Imaging in All Lighting Conditions
Equipped with an F/NO2.0 , the YT-7625-A8 large aperture lens is designed to perform exceptionally well in various lighting conditions. This ensures that the lens captures clear images, day or night, providing reliable recording for smart door lock security systems.
High-Definition Imaging with 3MP Resolution
Tailored to match the OnSemi CMOS chip with 1080P resolution, the YT-7625-A8 smart home lens delivers 3MP high-definition imaging. This clarity allows for the capture of intricate details and clear images of faces, essential for accurate monitoring and identification.
Customizable Mounting Options for Seamless Integration

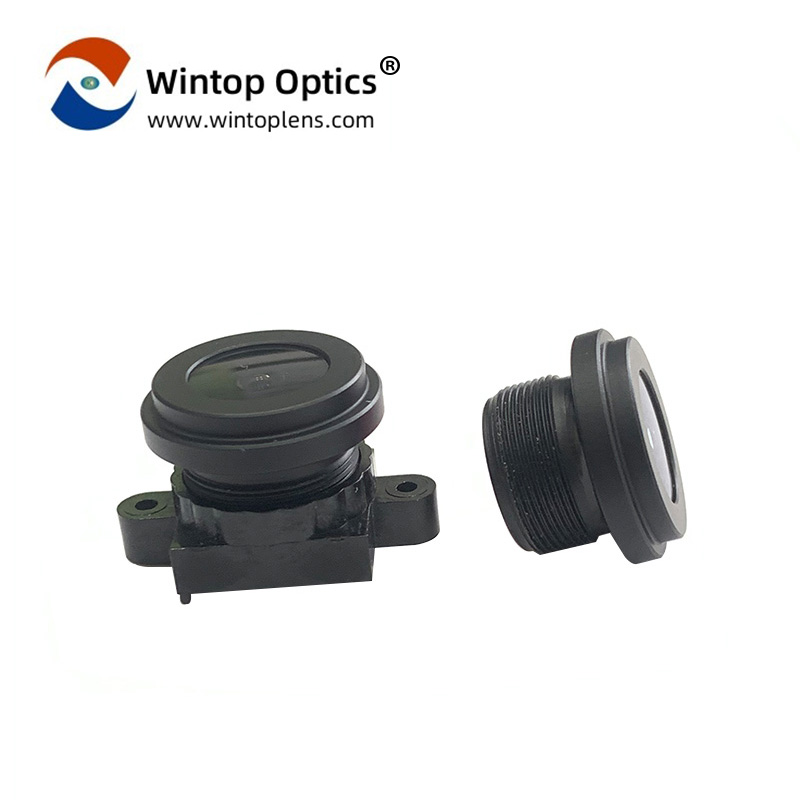

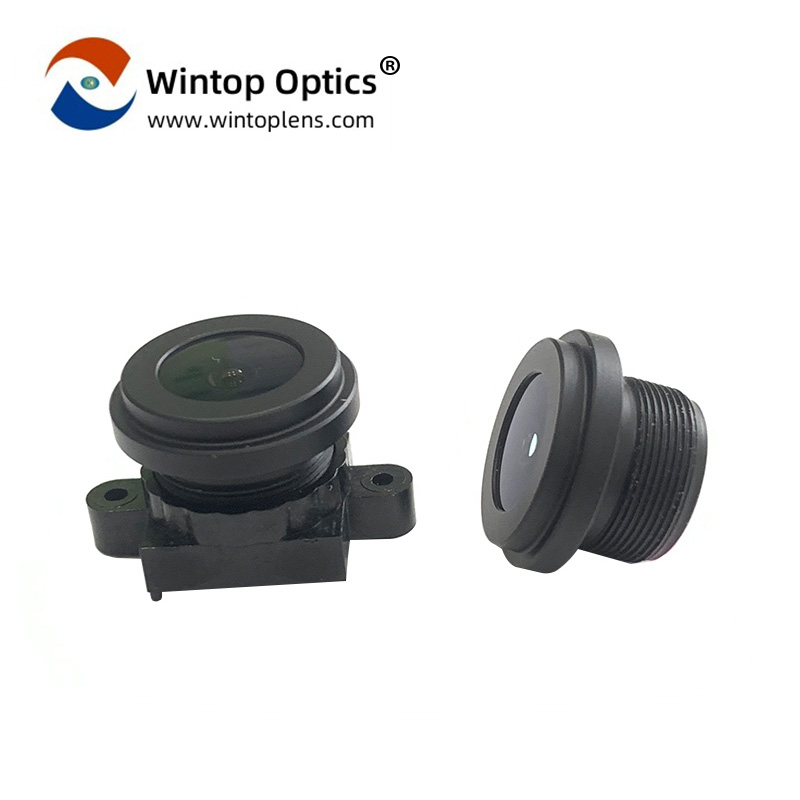

The smart lock lens features an M12 mount, with a front cover diameter of 14mm, offering a secure and standardized connection to smart door lock systems. It can be customized to AA Gluing lenses or other thread sizes according to specific project requirements, ensuring adaptability for different applications.
Durable Metal Housing with Advanced Optical Technology

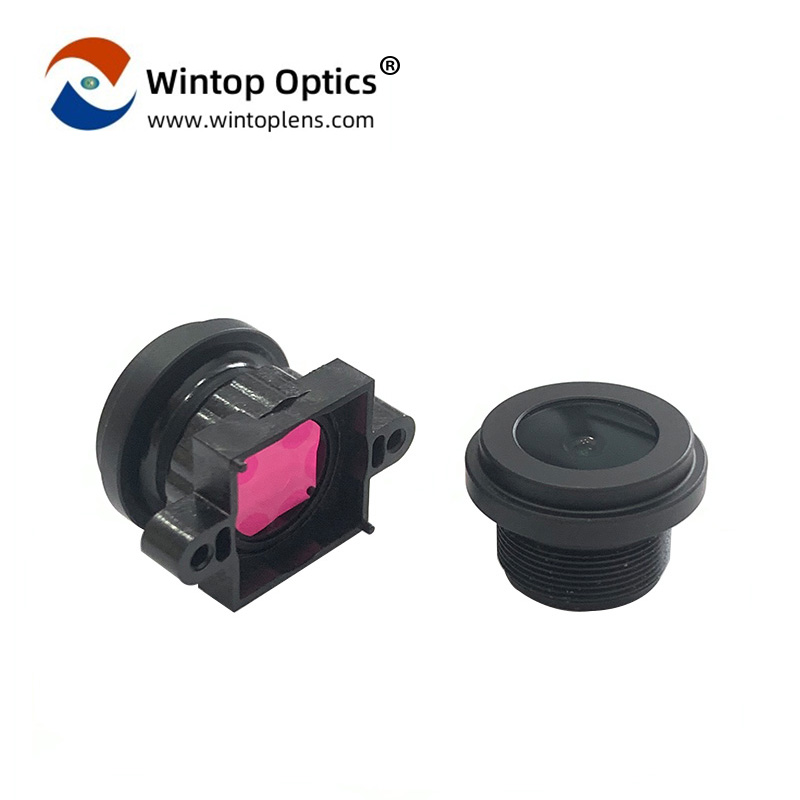

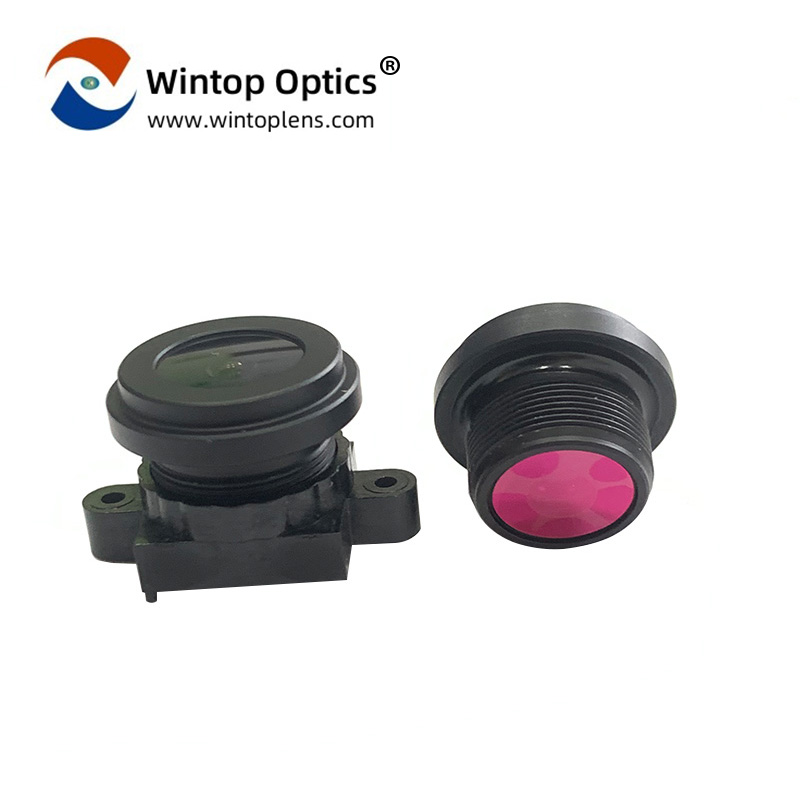

The YT-7625-A8 intelligence doorbell lens is encased in a robust metal barrel, showcasing its high-quality build. With a blue glass IR filter included for better MTF performance, this lens is designed to meet diverse needs. The option for a filter-free version is also available.
Rugged and Reliable for Extreme Conditions
With an IP69K rating for water and dust resistance and TS16949 certification, the YT-7625-A8 smart doorbell lens is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it suitable for all weather conditions.
Versatile Applications Across Diverse Fields
The YT-7625-A8 3mp face recognition lens's utility extends beyond smart door locks. It is suitable for in-vehicle 360-degree surveillance, side view monitoring, backup cameras, passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and more.
In Summary
The YT-7625-A8 consumer electronic lens is the epitome of smart lock lens technology, offering a combination of ultra-wide field of view, high-definition imaging, and durable construction. Its advanced features make it an indispensable tool for smart home security and a wide range of imaging applications. Experience the versatility and excellence of the YT-7625-A8, ensuring that every entrance is well-documented and secure with a clear perspective.
