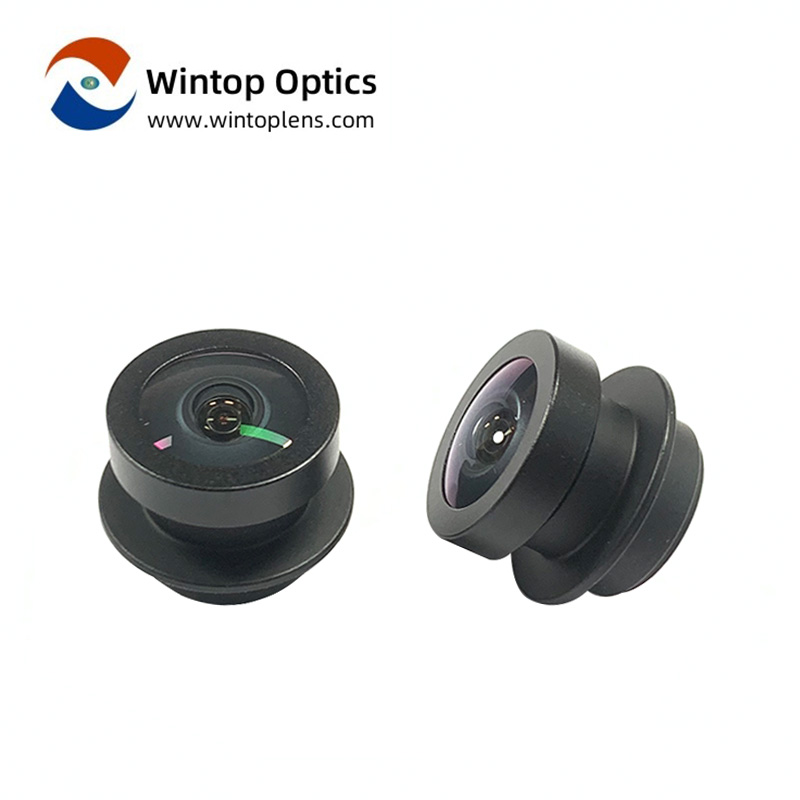

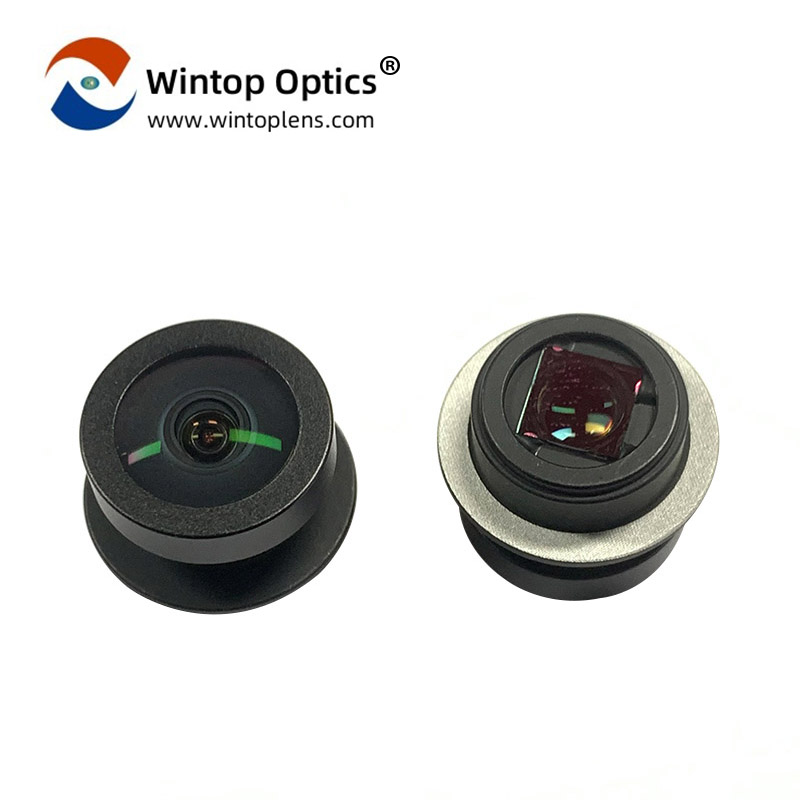

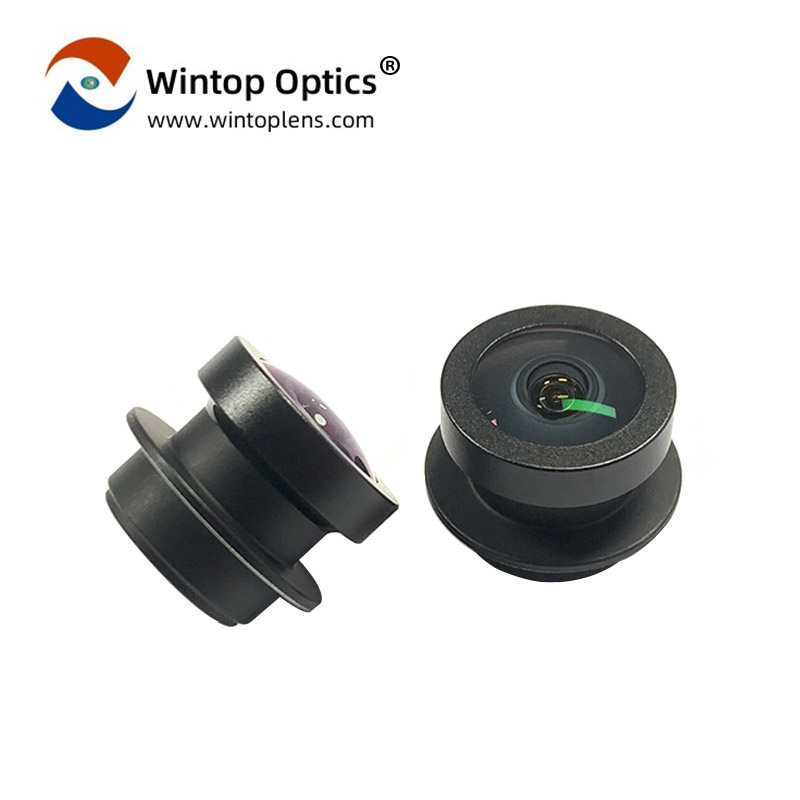

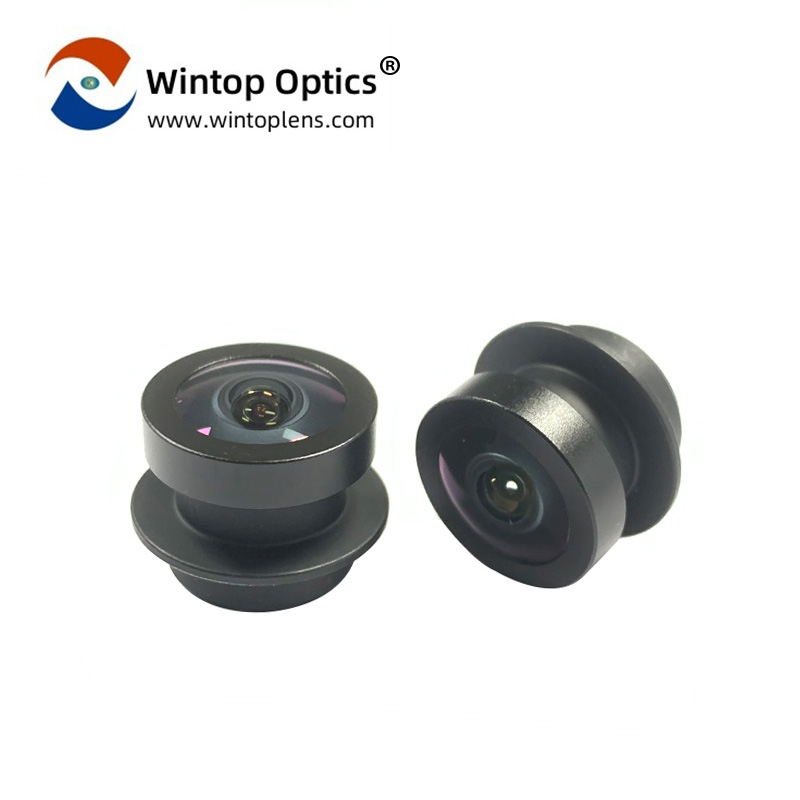

IP67 Hfov 200 Degree Fisheye Surround View AA Lenses YT-7007-E1-A

  • Horizontal 200 degree field of view board lenses
  • 1/3'' AR0130 Surround view camera lenses
  • Low DistortionWide Angle IP69K AA Lenses
  • Support Customized M12 Lens
  • Item No :

    YT-7007-E1-A
  • Sensor :

    AR0130 1/3"
  • F/NO. :

    2.2
  • EFL :

    1.3
  • Optical TTL :

    14.79
  • Thread Size :

    AA diameter 12mm
  • FOV(H/V/D) :

    194°/148°/>200°
  • Structure :

    /

YT-7007-E1-A: The Panoramic Guardian for Vehicle Surveillance



know more about YT-7007-E1-A Car Surround View Lens parameters
EFL (mm) 1.3
F/NO. 2.2
Optical TTL 14.79
BACK FOCAL LENGTH 2.71
FLANGE BACK LENGTH 1.57
TV DISTORTION <-5.7%
Relative lllumination
≥55%
CRA 11.4°
For Pixel Size(μm)

3.75μm*3.75μm

Storage At Temperature

-40℃~+85 ℃

Recent Camera Distance

0.2

WAVELENGTH

@420~620nm    Tavg>=90%

Water Level

IP67





A 360° View for Enhanced Vehicle Perception

The YT-7007-E1-A wide angle lens is a cutting-edge panoramic surveillance lens designed for automotive camera and consumer electronics device applications, featuring a EFL1.3mm optical focal length and a compact 14.79mm optical total length with a Back Focal Length (BFL) of 2.71mm. This ultra-wide angle lens covers every angle around the vehicle, ensuring complete awareness of the surroundings.



High-Resolution Imaging with an Expansive Field of View

Tailored to match the CMOS sensor AR0130 (1/3'' inch), the YT-7007-E1-A car camera lens delivers 1.3 million clear pixels, providing clear imaging. The surround view lens offers a Dfov 200 degree (diagonal field of view), a Hfov 194°  (horizontal field of view), and a 148° vertical angle, with a maximum imaging circle diameter of 4.9mm, creating a comprehensive view that is unmatched.



F/NO2.2 Aperture for Superior Night Visibility

Equipped with an F/NO2.2 large aperture, the YT-7007-E1-A panoramic lens ensures superior visibility in low-light conditions. This feature is crucial for maintaining safety during nighttime driving, providing clear and bright images even in the darkest hours.



Customizable Mounting Options for Seamless Integration

The automotive camera lens features an AA Gluing interface (dia 12mm) and a lens end cover diameter of 14mm, allowing for easy integration into various vehicle camera systems. It can be customized to an M12 mount lens (M12*P0.5) according to specific customer project requirements, ensuring versatility in application.



Durable Construction with Advanced Lens Technology

The YT-7007-E1-A car camera lens is housed in a robust metal lens barrel, showcasing its high-quality build. It combines glass and plastic lenses for optimal performance and is equipped with an IR filter, ensuring excellent MTF performance and reliability. This advanced lens technology provides clear and vibrant images in all driving conditions.



Wide-Ranging Applications for Extended Utility

The YT-7007-E1-A car camera lens's utility extends beyond vehicle surveillance. It is suitable for a multitude of applications, including rearview mirrors, electronic monitoring, streaming media, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.



In Summary

The YT-7007-E1-A wide arround view lens is the epitome of automotive panoramic surveillance technology, offering a combination of high-resolution imaging, an expansive field of view, and superior night vision. Its durable construction and advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-7007-E1-A, ensuring comprehensive visibility and enhanced safety on the road.



Wide angle lens Wintop YT-7007
