Item No :
YT-1745-F8Sensor :
OX02A10F/NO. :
1.8EFL :
4.0mmOptical TTL :
22.84mmThread Size :
M12*P0.5 LensFOV(H/V/D) :
125°/64°/157°Structure :

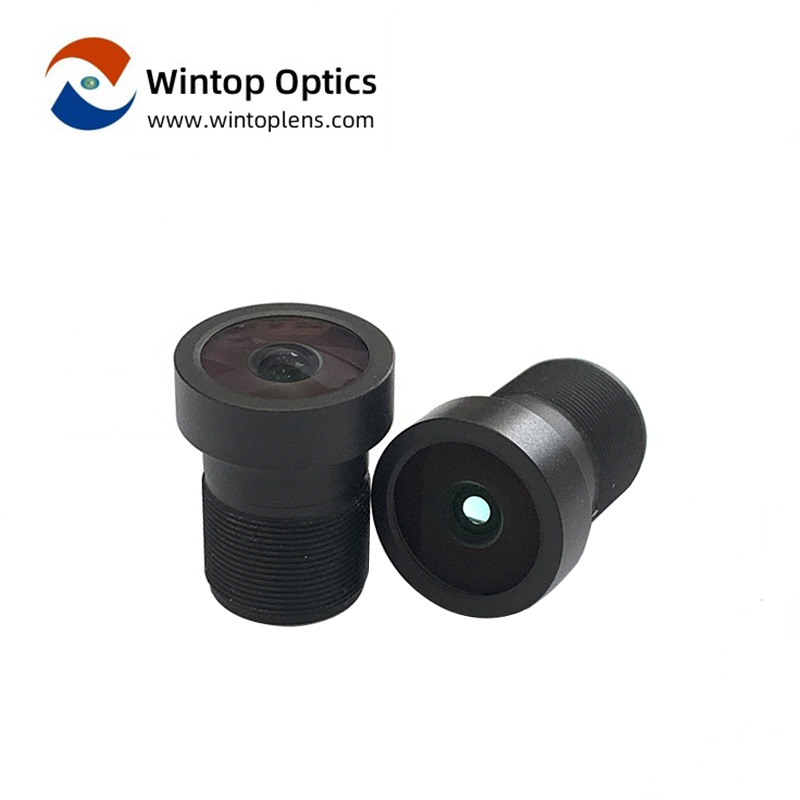

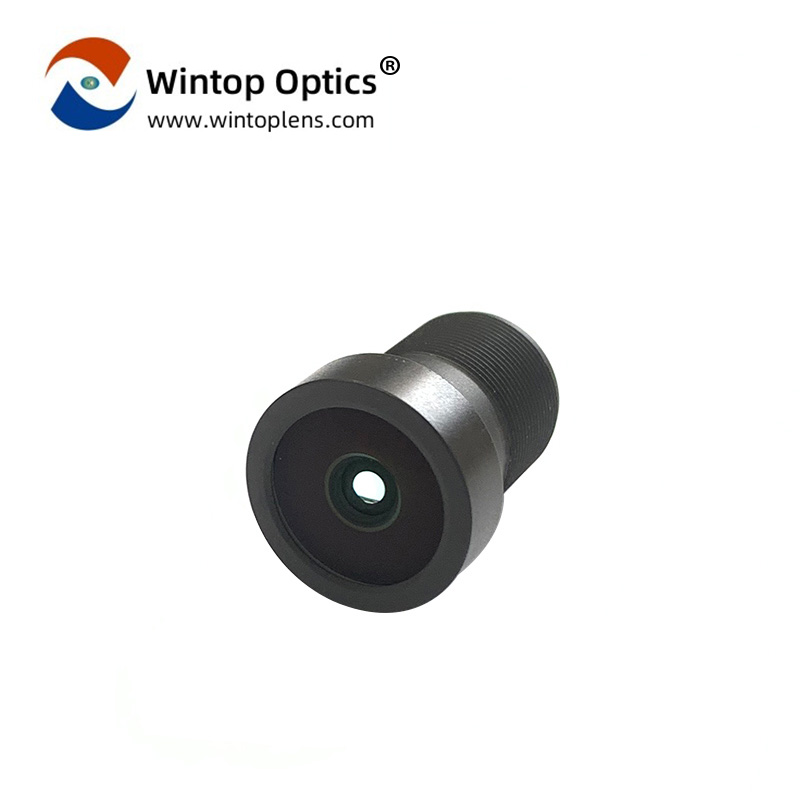

6E+1IRYT-1745-F8: The Pinnacle of 4K 8MP Dashcam Lens Clarity
know more about YT-1745-F8 Car DVR Camera Lens parameters |
||||
Img-Circle( mm) | ∅9.0 | |||
EFL( mm) | 4.0 mm | |||
F/NO. | 1.8 | |||
Optical TTL | 22.84 | |||
Mechanical TTL | 22.84 | |||
BACK FOCAL LENGTH | 2.29 | |||
FLANGE BACK LENGTH | 3.00 | |||
TV DISTORTION | <-23% | |||
RELATIVE ILLUMINATION | >=42% | |||
CRA | 7.5° | |||
Pixel Size (μm) | 4.2um*4.2um | |||
Storage At Temperature | -40℃~+85℃ | |||
Recent Camera Distance | 0.2 | |||
Infrared | Non-infrared | |||
WAVELENGTH | @455~585nm Tavg≥90% @640nm±10nm T=50% |
|||
Dust Level | IP4X | |||
STRUCTURE |
6E+1Blue Glass IR filter |
Unmatched Detail for the Road Ahead
The YT-1745-F8 car dvr lens is a 4K 8MP dashcam lens that raises the bar for automotive safety and recording technology. With an optical focal length (EFL) of 4.0mm and a total length (TTL) of 22.84mm, this car dvr lens is engineered to capture every detail of the road ahead with precision. The Back Focal Length (BFL) of 2.29mm ensures optimal image projection for high-definition recording.
Superior Image Resolution for Clear Recording
Equipped with a CMOS sensor OX02A10, the YT-1745-F8 car dvr lens delivers an 8-million-pixel ultra-high-definition resolution lens. The car dvr lens provides a 157-degree diagonal field of view (Dfov), a 125-degree horizontal field of view (Hfov), and a 64° vertical angle, with a maximum imaging circle diameter of 9.0mm. This wide field of view, combined with the high pixel count, ensures comprehensive coverage of the vehicle's surroundings.
F/NO1.8 Aperture for Enhanced Night Vision
The F/NO1.8 large aperture of the YT-1745-F8 car dvr lens allows for superior light intake, ensuring that the dashcam records clear footage even in low-light conditions. This lens feature is crucial for maintaining visibility and safety during nighttime driving.
Customizable Mounting for Seamless Integration
Featuring an M12 mount lens, the YT-1745-F8 car dvr lens offers a standardized and secure connection to various dashcam systems. The lens front cover diameter is 15mm, and the car lens can be customized to an AA Gluing lens according to specific project requirements, ensuring adaptability for different applications.
Durable Construction with Advanced Optical Technology

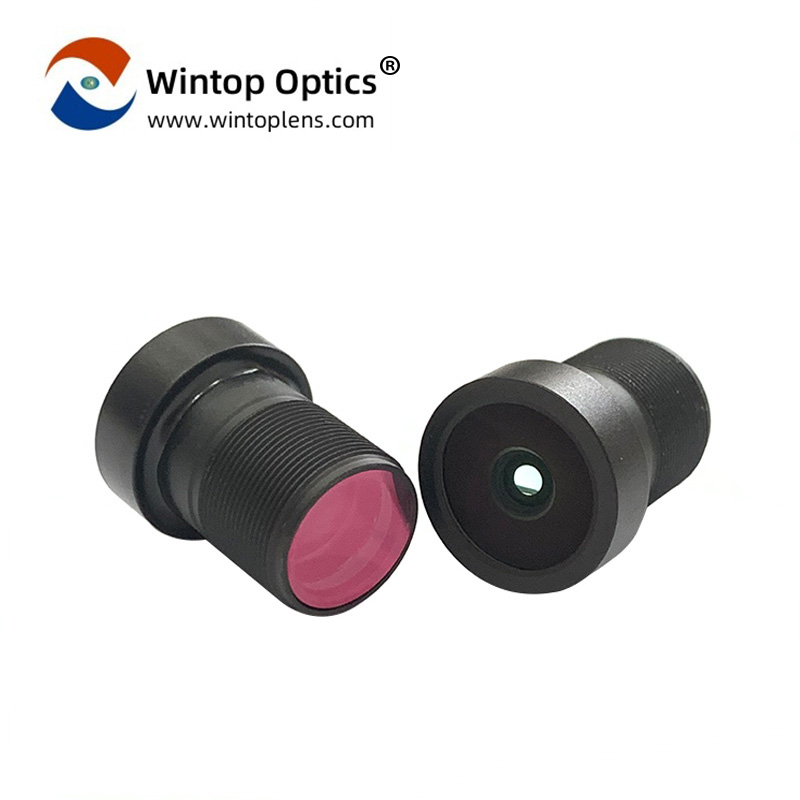

The YT-1745-F8 car dvr lens is encased in a robust metal lens barrel and utilizes a all-glass lens structure, ensuring durability and reliability. The inclusion of a blue glass 640nm IR filter enhances the car dvr lens's performance in various lighting conditions, while the excellent MTF effect guarantees high-quality imaging.
Rugged and Reliable for Extreme Conditions
With an IP4X rating for water and dust resistance and TS16949 certification, the YT-1745-F8 car dvr lenses is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it suitable for all weather conditions.
Successfully Implemented in Global Dashcam Brands
The YT-1745-F8 car dashcam lens has been successfully integrated into both domestic and international dashcam brands, showcasing its reliability and performance in real-world applications.
Versatile Applications for Extended Utility
The YT-1745-F8 car dvr lens's utility extends beyond dashcams. It is suitable for a multitude of applications, including passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-1745-F8 imaging lens is the epitome of automotive lens technology, offering a combination of ultra-high-definition imaging, a wide field of view, and reliable visibility in any light. Its durable construction and advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-1745-F8, ensuring comprehensive surveillance and enhanced safety on the road.
