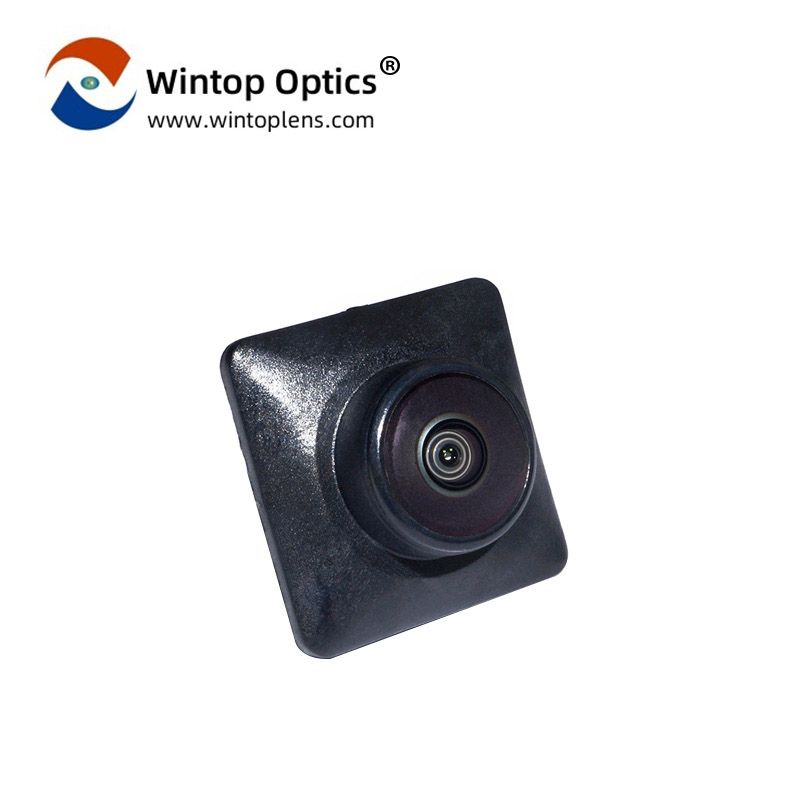

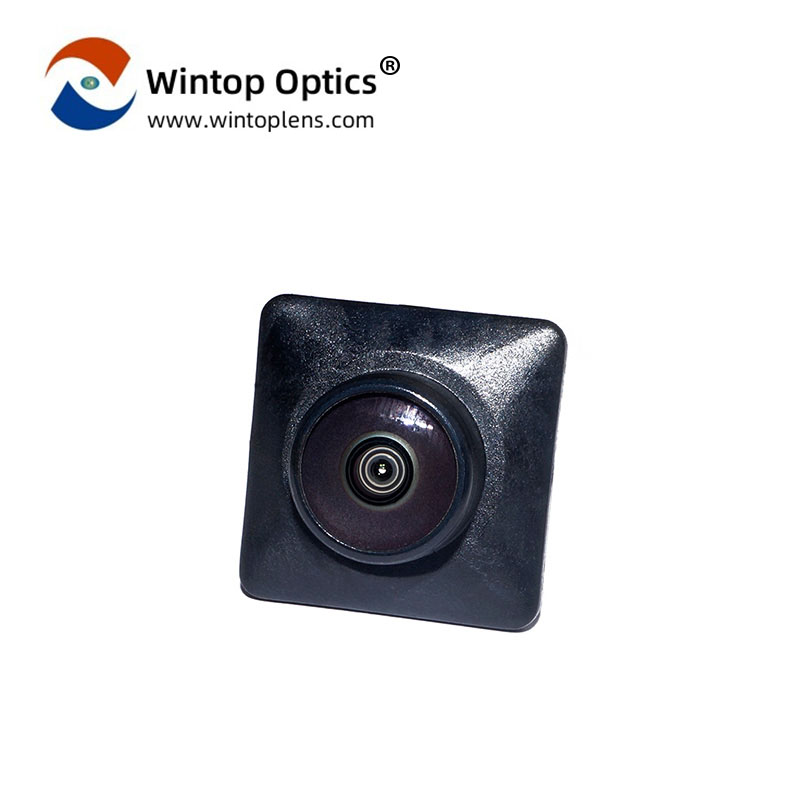

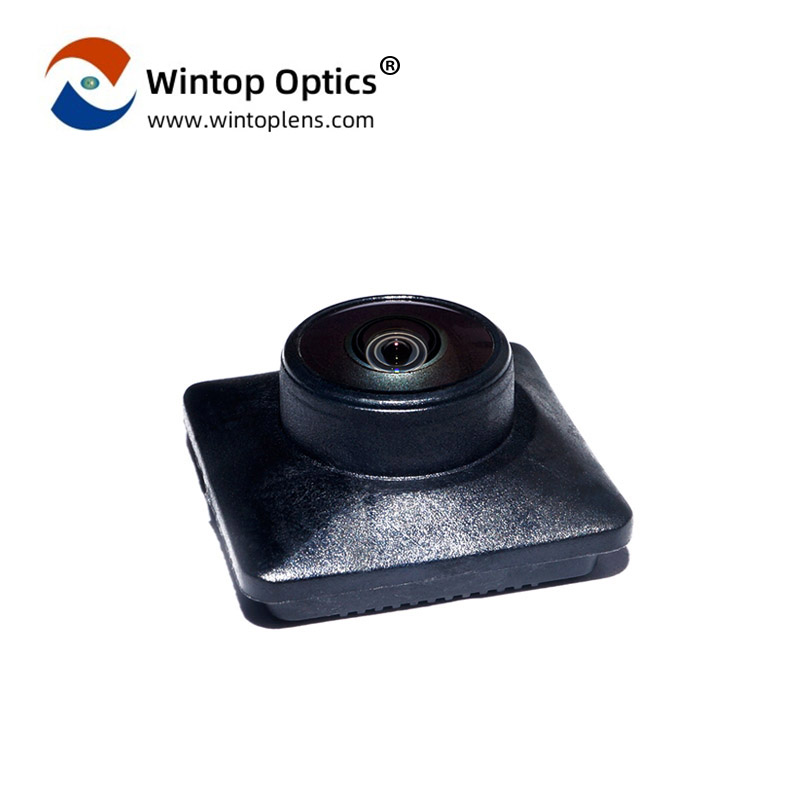

Square Integrated AA Lens 1/4'' 160 Degree Surround View Car Lens YT-7042P-F1

YT-7042P-F1: The Custom-Crafted Lens for Omnidirectional

Precision Customization for Ultimate Flexibility

The YT-7042P-F1 AA lens is a customized camera lens that sets new standards in optical customization. With a 1.29mm optical focal length and a compact 13.06mm optical total length, this AA lens is designed to meet the specific requirements of a wide range of imaging applications.

High-Resolution Imaging with an Ultra-Wide Field of View

Engineered to match the 1/4" inch CMOS sensor ASX340, the YT-7042P-F1 customized lens achieves 1.3 million clear pixels, ensuring high-resolution imaging. The lens offers an ultra-wide field of view with a dfov 165°degree diagonal,hfov 137 degree horizontal, and 107 degree vertical angle, making it perfect for capturing expansive scenes with minimal distortion of less than -60%.

Optimized Aperture for Varied Lighting Conditions

The customized lens features an F/NO.2.6 aperture, which is optimized for various lighting conditions. This ensures that the AA lens performs exceptionally well, providing clear and detailed images whether in bright sunlight or dimly lit environments.

Robust Construction for All-Weather Reliability

Built to withstand the elements, the YT-7042P-F1 customized lens is rated IP67 for dust and water resistance, ensuring reliable operation in temperatures ranging from -30℃ to +85℃. This robust construction guarantees driving safety in all weather conditions.

Versatile and Customizable Interface

The customized lens interface is designed as an AA structure lens, with a square integrated lens end cap measuring 14mm in diameter. This customizable interface allows for seamless integration with various camera systems, meeting the diverse needs of different clients.

Innovative Design with High-Transmittance IR Filter

The YT-7042P-F1 AA lens is housed in a durable plastic barrel and includes a 650nm IR filter, enhancing the lens's performance in infrared lighting conditions. The lens delivers excellent MTF performance and reliability, with a high transmittance rate of over 90% in the 420~620nm spectral band and a relative illumination of greater than 50%.

Extensive Applications Across Diverse Fields

The YT-7042P-F1 customized is not confined to a single application. Its versatility makes it suitable for a multitude of uses, including vehicle dvr camera lens, rearview camera lens, surround view camera lens, front and side surveillance camera lens, AI robot monitoring camera lens, video conference camera lens, smart home monitoring lens, USB surveillance lens, IP camera lens, and facial recognition camera lens.

In Summary

The YT-7042P-F1 AA lens is a custom lens that exemplifies the pinnacle of optical innovation. Its high-resolution imaging, ultra-wide field of view, versatile aperture, robust construction, and innovative design make it an ideal choice for a broad spectrum of imaging applications. Experience the adaptability and excellence of the YT-7042P-F1, a lens that is crafted to exceed the specific demands of your vision.
