OX01F10 360 Degree AVM system F2.0 Arround View Monitoring Lens YT-7047P-C1

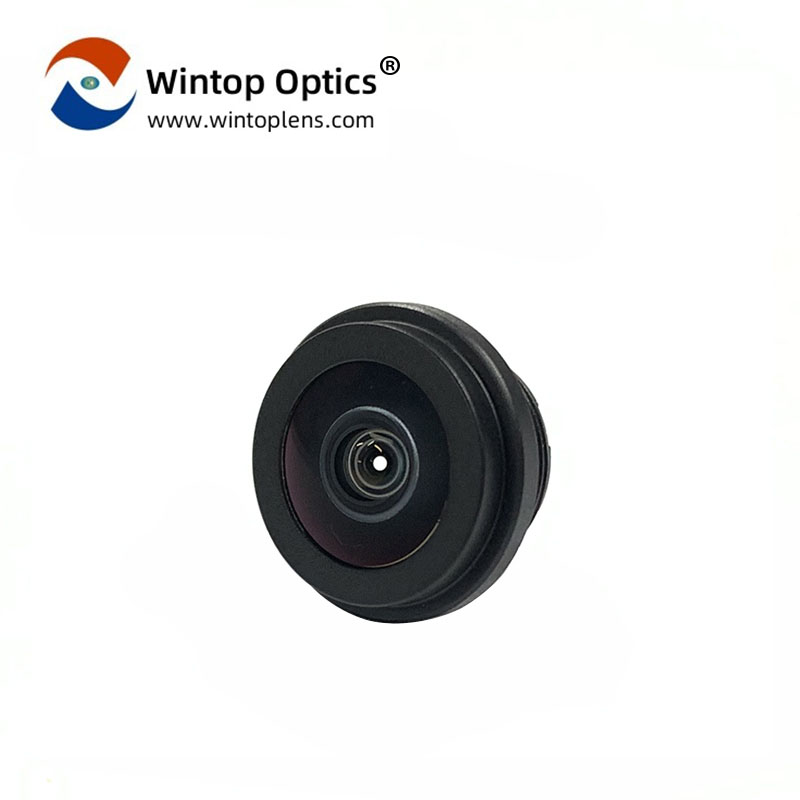

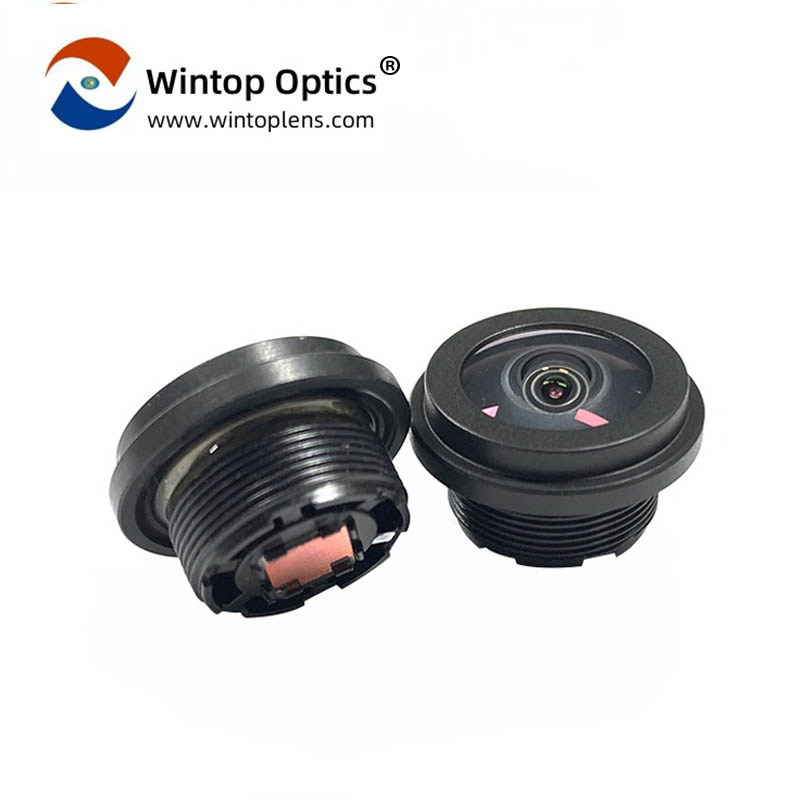

YT-7047P-C1: The Omniscient Eye for Vehicle Surveillance

A Panoramic Perspective for Vehicle Safety

The YT-7047P-C1 car surround view lens is a cutting-edge around view monitoring lens designed to provide a 360-degree perspective for comprehensive vehicle surveillance. With an lens optical focal length (EFL) of 1.36mm and a total length (TTL) of 12.80mm, this lens offers a wide field of vision that is unmatched in the automotive industry.

Ultra-Wide Field of View for Complete Coverage

The YT-7047P-C1 wide angle lens is tailored to match the high-performance OmniVision CMOS chip, delivering a Dfov 188-degree diagonal field of view, a Hfov 148-degree horizontal field of view, and an 114° vertical angle. This ultra-wide coverage ensures that every angle around the vehicle is captured, leaving no blind spots and enhancing safety during maneuvers.

F/NO2.0 Aperture for Enhanced Night Vision

Equipped with an F/NO2.0 large aperture, the YT-7047P-C1 arround view monitoring lens is designed to perform exceptionally well in low-light conditions. This ensures that the lens captures clear images, even in the darkest of nights, providing reliable recording for your driving safety.

High-Definition Imaging with 2MP Resolution

The car camera lens achieves a 2MP high-definition resolution, allowing for the capture of intricate details and clear images of the vehicle's surroundings. This clarity is essential for accurate monitoring and recording of the road conditions.

Customizable Mounting Options for Versatile Integration

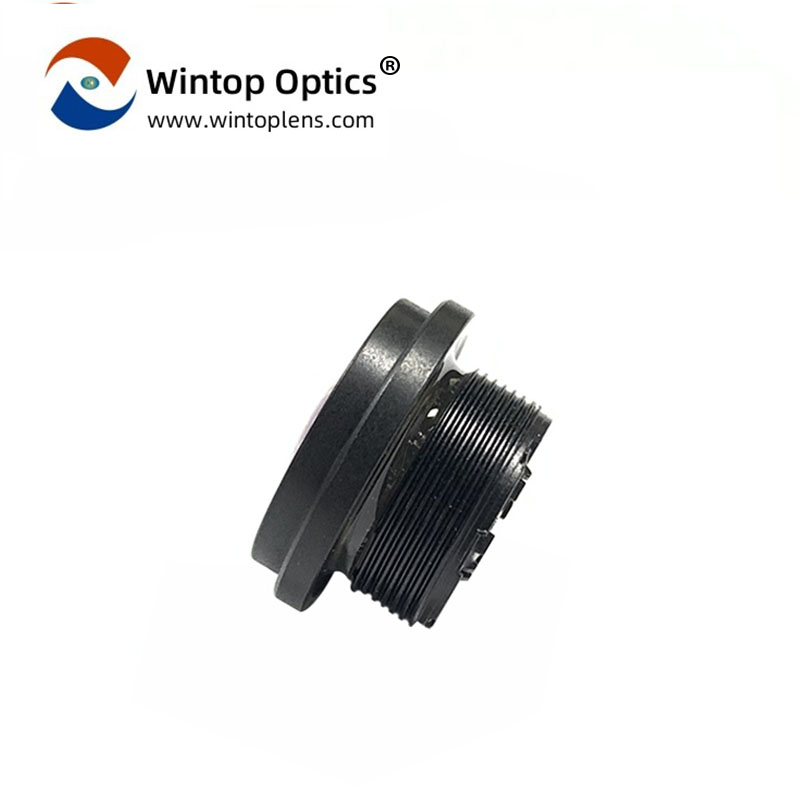

The 2mp lens features an M12*P0.5 mount, with a front cover diameter of 14mm, offering a secure and standardized connection to various vehicle camera systems. It can be customized to M7, M8, M9, M10 mounts, or an AA lens according to specific project requirements, ensuring adaptability for different automotive applications.

Durable Plastic Barrel with Low Distortion

The YT-7047P-C1 360 lens is encased in a robust plastic barrel, showcasing its high-quality build. With -26% distortion, it is considered a low-distortion lens, which is crucial for accurate and reliable recording in various driving conditions. The lens is composed of five glass-plastic hybrid lenses, ensuring durability and optical performance.

Versatile Applications Across Diverse Fields

The YT-7047P-C1 panoramic lens's utility extends beyond around view monitoring. It is suitable for side view monitoring camera, backup cameras, passenger monitoring camera, driver monitoring camera, cabin surveillance camera, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.

In Summary

The YT-7047P-C1 fisheye lens is the epitome of automotive lens technology, offering a combination of ultra-wide field of view, high-definition imaging, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-7047P-C1, ensuring that every journey is well-documented and secure with a 360-degree perspective.
