Item No :
YT-5559-C1Sensor :
OV16035(1280*800)F/NO. :
F2.2EFL :
2.25mmOptical TTL :
16.74mmThread Size :
M12*P0.5FOV(H/V/D) :
144degree/88degree/176degreeStructure :
6E+IRYT-5559-C1: The Ultimate Rearview Guardian for Vehicles
know more about YT-5559-C1 Rear view Lens parameters |
|
EFL (mm) | 2.25mm |
F/NO. | 2.2 |
Optical TTL | 16.94mm |
Mechanical TTL | 16.94mm |
BACK FOCAL LENGTH | 4.74mm |
FLANGE BACK LENGTH | 3.64mm |
OPTICAL DISTORTION | -29% |
Recent Camera Distance |
0.2M |
Water Level |
IP67 |
A Crystal Clear Perspective for Enhanced Safety
The YT-5559-C1 rearview lenses is a precision-engineered marvel designed for heavy-duty vehicles, offering an optical focal length (EFL) of 2.25mm and a total length (TTL) of 16.74mm. Its Back Focal Length (BFL) of 4.74mm ensures a focused and sharp image, providing a clear perspective for all rearview monitoring needs.
Ultra-Wide Field of View for Comprehensive Surveillance
Tailored to match the OV16035 chip, the YT-5559-C1 reversing assist lenses delivers a 176-degree diagonal field of view (Dfov), a 144-degree horizontal field of view (Hfov), and an 88° vertical angle. This ultra-wide coverage ensures that the driver has a complete view of the area behind the vehicle, significantly reducing blind spots and enhancing safety during reversing and driving.
F/NO2.2 Aperture for Exceptional Low-Light Performance
Equipped with an F/NO2.2 aperture, the YT-5559-C1 rear view lens offers exceptional performance in low-light conditions. This feature ensures that the lens captures clear and bright images, even in the darkest environments, providing reliable visibility for nighttime operations.
Customizable Mounting Options for Seamless Integration

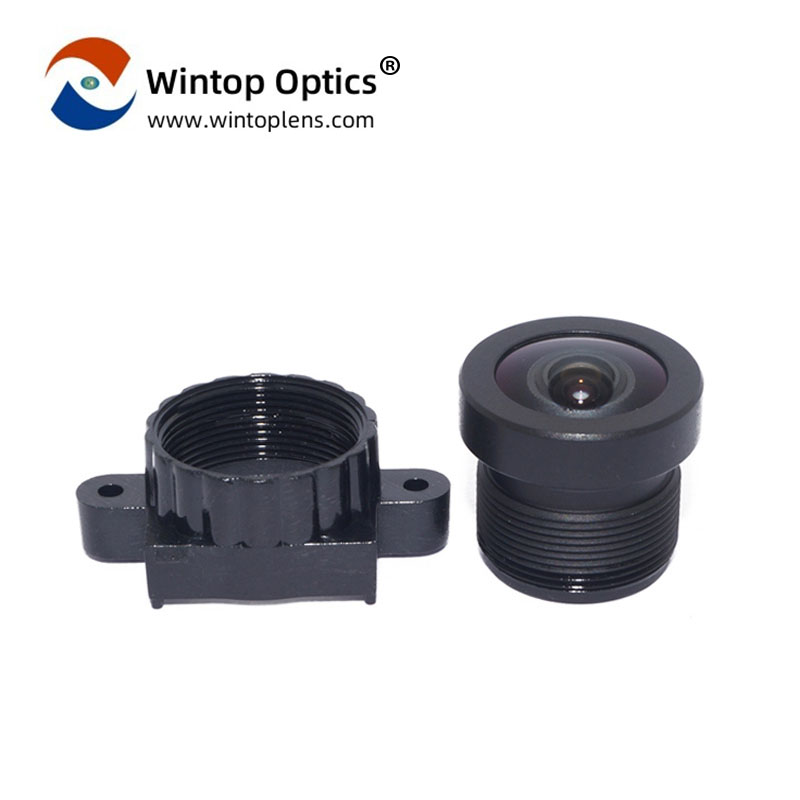

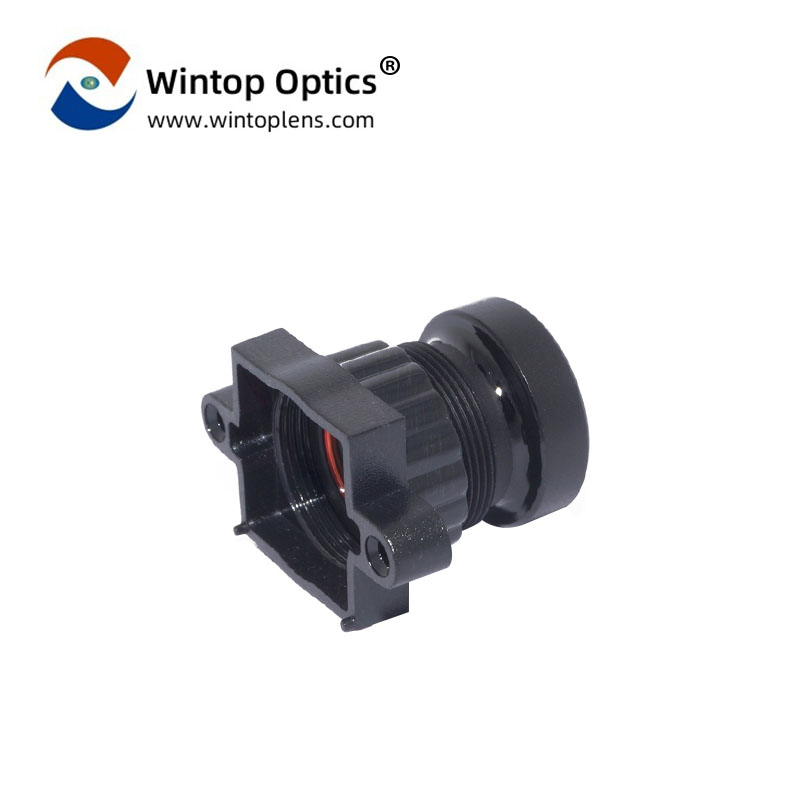

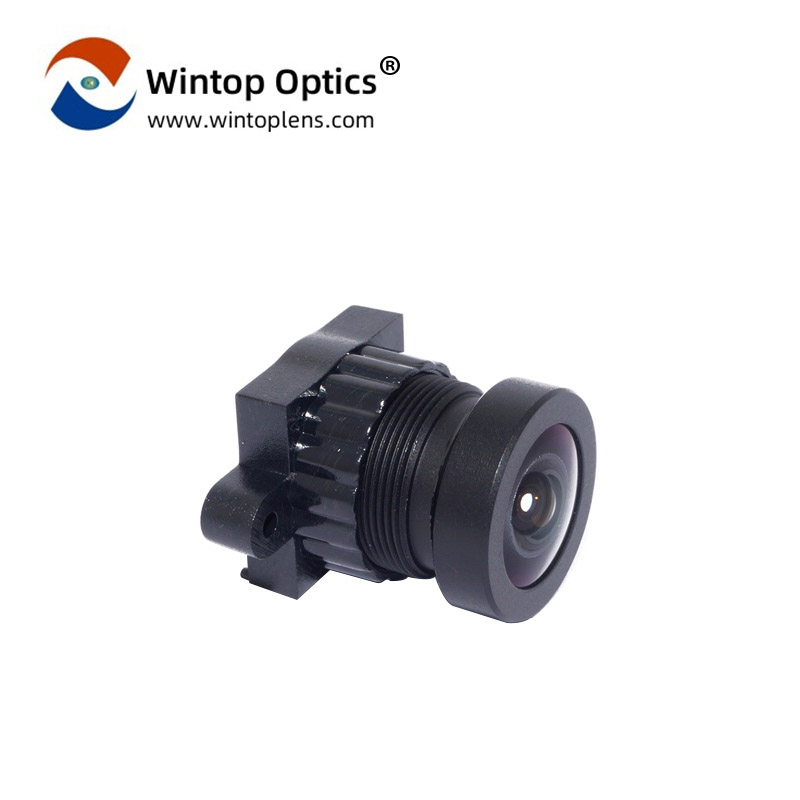

The reverse camera lens features an M12*P0.5 mount, with a front cover diameter of 14mm, providing a secure and standardized connection to various camera systems. It can be customized to an AA Gluing lens according to specific project requirements, ensuring adaptability for different heavy-duty vehicle applications.
Durable Metal Housing with Advanced Optical Technology
The YT-5559-C1 rear view lens is encased in a robust metal barrel, showcasing its high-quality build. It includes a 650nm IR filter, enhancing the lens's performance in various lighting conditions and ensuring clear and vibrant images.
Rugged and Reliable for Extreme Conditions
With an IP67 rating for water and dust resistance and TS16949 certification, the YT-5559-C1 rearview lens is built to withstand the harshest environments.
Versatile Applications Beyond Rearview Monitoring
The YT-5559-C1 rear view lens's utility extends beyond rearview monitoring. It is suitable for a multitude of applications, including passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-5559-C1 rearview lenses is the epitome of heavy-duty vehicle rearview lens technology, offering a combination of ultra-wide field of view, exceptional low-light performance, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-5559-C1, ensuring comprehensive surveillance and enhanced safety on the road.
