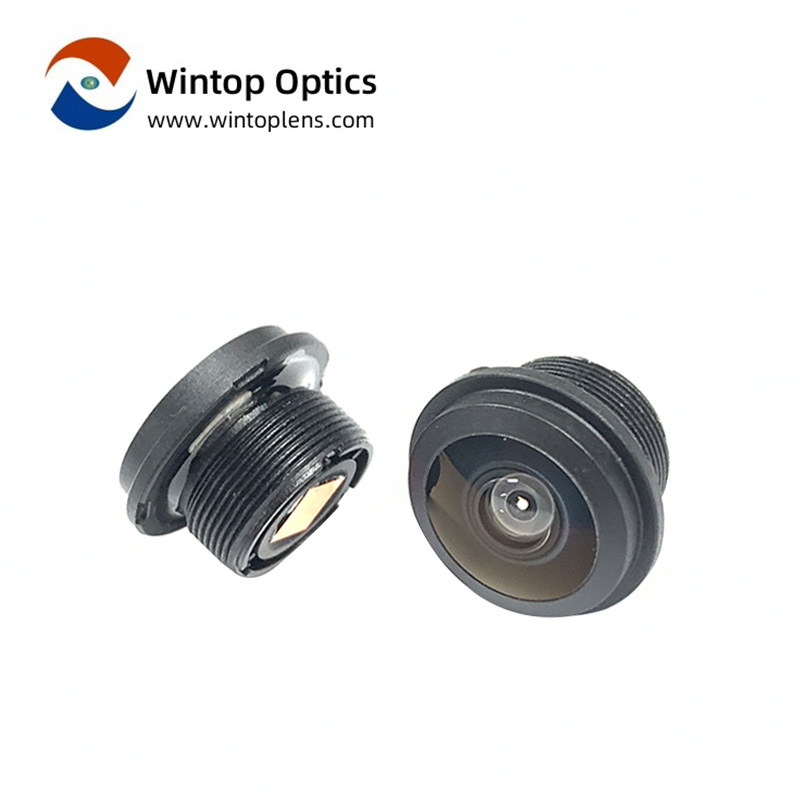

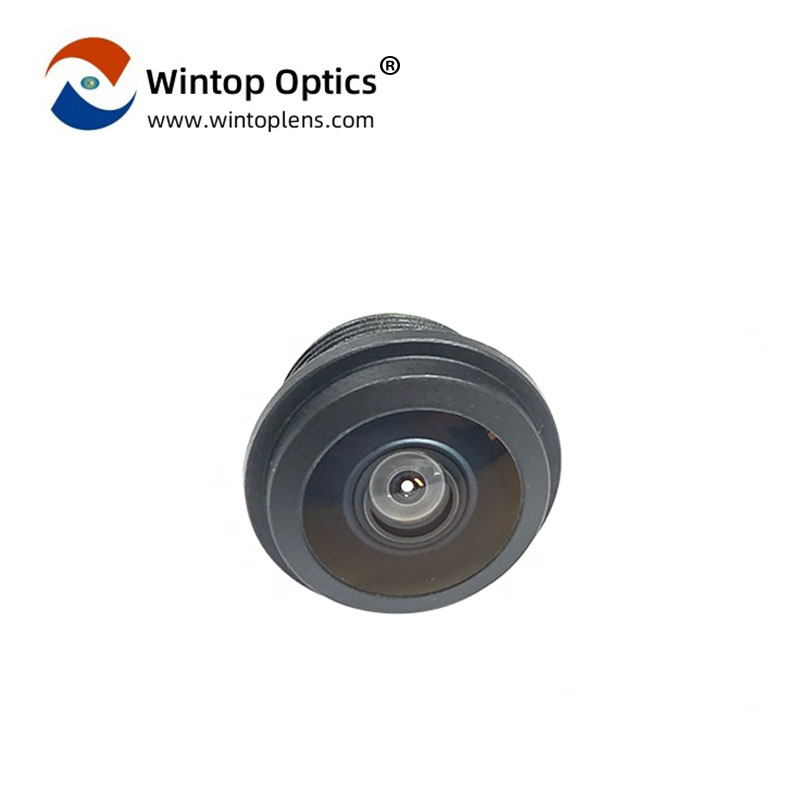

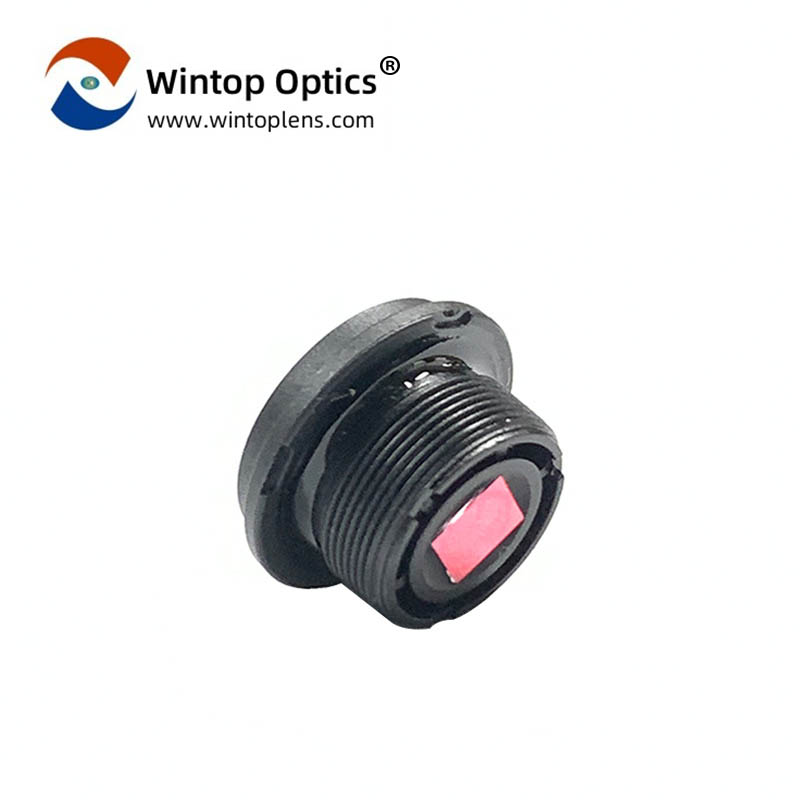

High-Definition 1/4'' CMOS sensor Car Camera Fisheye Lens YT-6716P-E1

The Versatile Fisheye Lens for Enhanced Surveillance and Clarity

High-Definition Integration:

Pair the YT-6716P-E1 with the GC0328 chip for a 1/4" inch sensor that delivers million clear pixels. With a lens height of 3.45mm, this fisheye lens captures high-definition images, perfect for detailed surveillance and monitoring.

Compact and Precise Optics:

Designed with an optical focal length of 0.95mm and a total optical length of 12.74±0.2mm, the YT-6716P-E1 ensures precision in every shot. The Back Focal length of 2.82mm and Flange Back Length of 1.95mm contribute to its compact form factor while maintaining exceptional image quality.

Exceptional Low-Light Performance:

The F1.7 large aperture lens is engineered to perform brilliantly in low-light conditions. It maintains excellent image quality even in the dimmest of environments, making it an outstanding choice for night vision applications.

Ultra-Wide Field of View:

With a diagonal angle exceeding 200 degrees, the YT-6716P-E1's fisheye lens is designed for applications that require a broad perspective. Ideal for facial recognition in smart doorbells, video conferencing, in-vehicle surveillance, webcam monitoring, and smart home surveillance systems, this lens covers every angle.

Optimal Light Transmission:

The Chief Ray Angle of 14 degrees and a relative illuminance of over 75% ensure that the lens captures light effectively, enhancing image brightness and clarity.

Durable and Weather-Resistant Design:

Featuring a conventional M12*P0.5 mount, the lens is constructed with a combination of one glass and four plastic lenses. It is waterproof and equipped with a 650nm filter that offers a transmission rate greater than 90% within the 420-610nm spectral band, ensuring clear and accurate color reproduction.

The YT-6716P-E1 is a comprehensive solution for surveillance and monitoring needs. With its ultra-wide field of view, low-light capabilities, and durable construction, it's the go-to choice for a wide range of applications. Experience the clarity and versatility that the YT-6716P-E1 brings to your surveillance and imaging needs.
