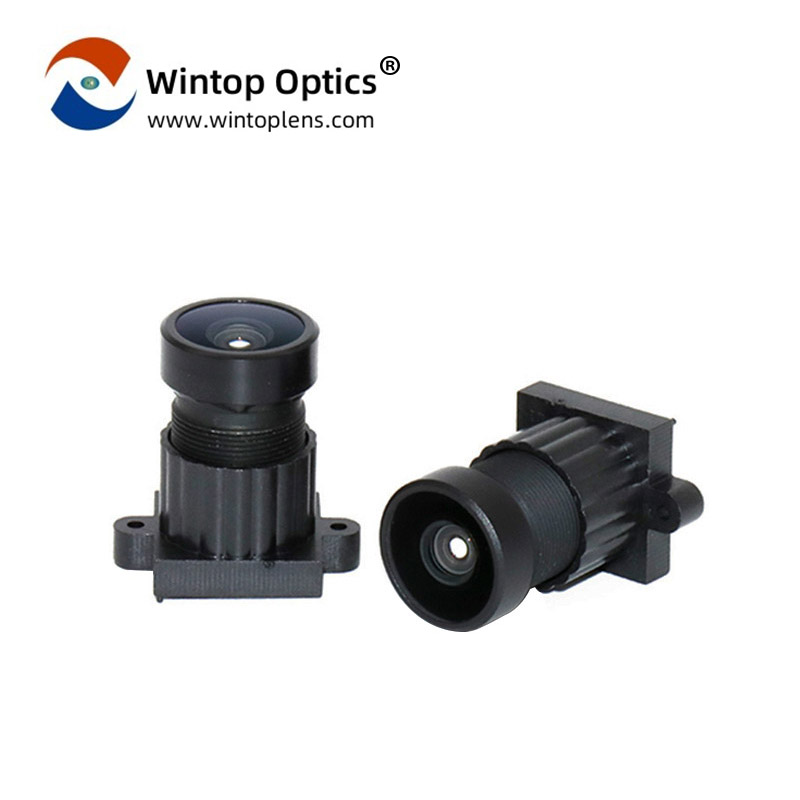

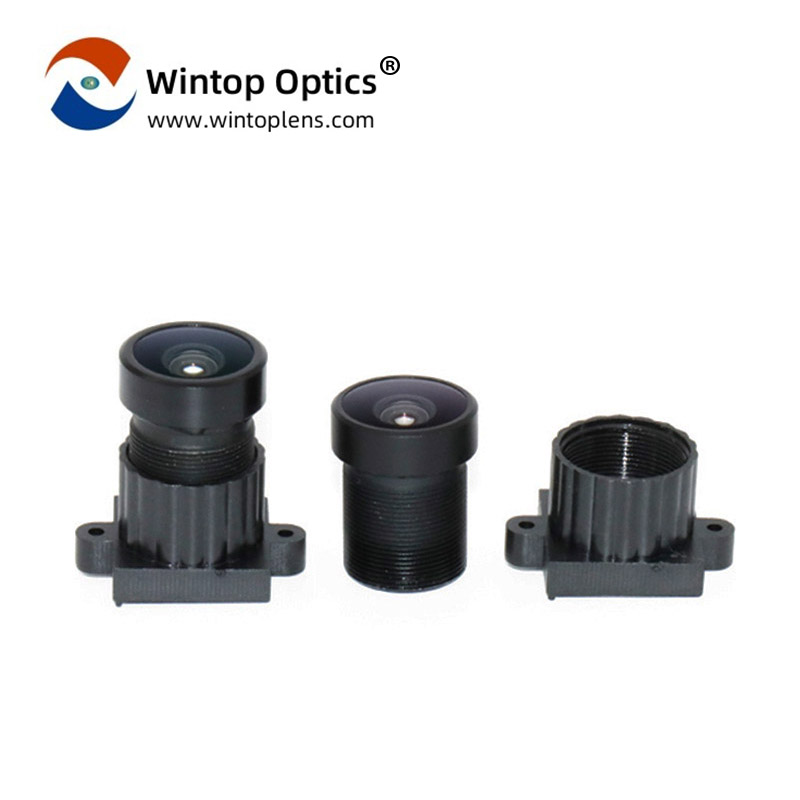

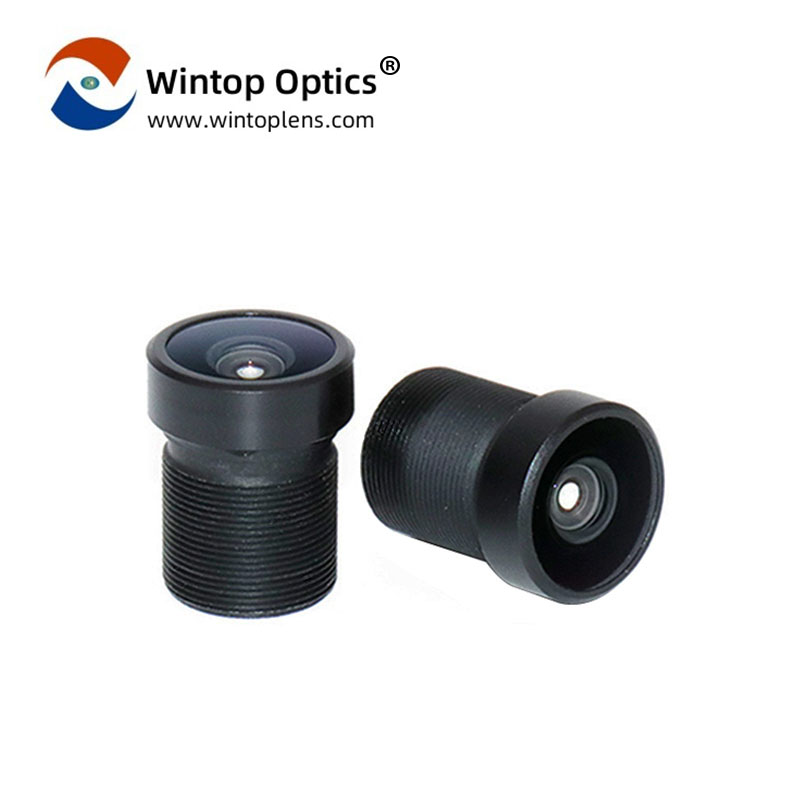

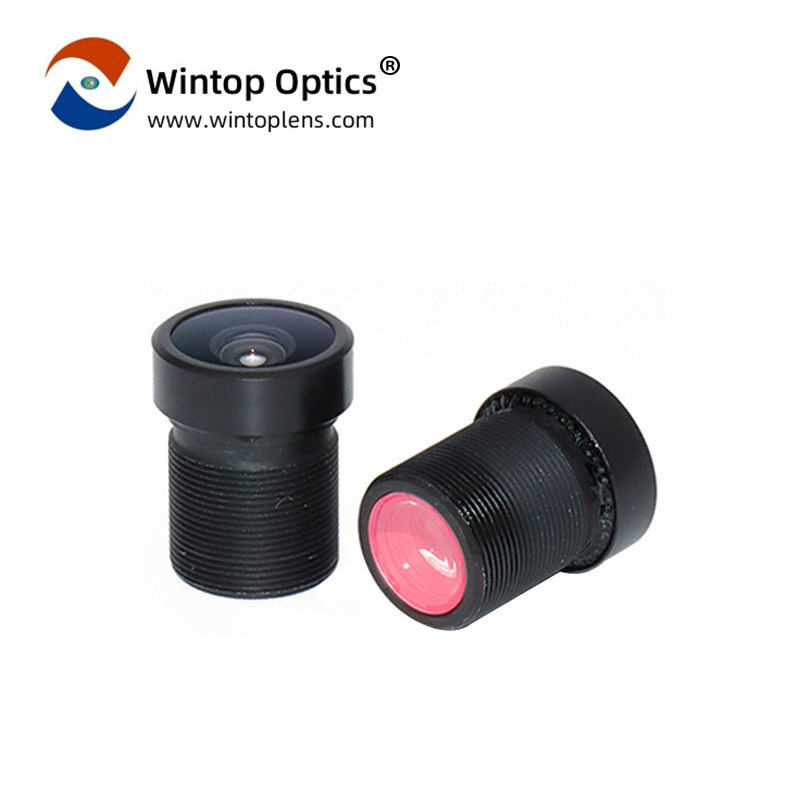

YT-1699-C1: The High-Definition Dashcam Lens for Unmatched Road Coverage
know more about YT-1699-C1 Car DVR Camera Lenses parameters |
Sensor Circle(mm) |
1/2.7(1920*1080 3um) |
Focal Length(EFL) |
3.25mm |
F/NO.(Infinite) |
F2.2 |
Optical TTL |
17.98mm |
Back Focal Length |
5.74mm |
Flange Back Length |
3.32mm |
TV Distortion |
-18% |
Capturing the Road with Precision
The YT-1699-C1 dashcam lenses is designed to provide high-definition imaging for your vehicle's surveillance needs. With an optical focal length (EFL) of 3.25mm and a total length (TTL) of 17.98mm, this lens offers a clear and expansive view of the road ahead, ensuring that every detail is captured with precision.
Ultra-Wide Field of View for Complete Road Coverage
Featuring a diagonal field of view (Dfov) of 159 degrees, a horizontal field of view (Hfov) of 113 degrees, and a vertical angle of 58°, the YT-1699-C1 wide angle lens ensures complete coverage of the vehicle's surroundings. The maximum imaging circle diameter of 6.9mm allows for broad surveillance without missing any critical angles.
F/NO2.2 Aperture for Clear Imaging in All Lighting Conditions
Equipped with an F/NO2.2 aperture, the YT-1699-C1 car camcorder lens is adept at handling various lighting conditions, from bright daylight to dimly lit streets. This ensures that the lens captures clear images, regardless of the time of day, providing reliable recording for your driving safety.
Customizable Mounting Options for Versatile Applications
The vehicle black box lens comes with an M12*P0.5 mount, and the front cover diameter is 14mm, offering a secure and standardized connection to dashcam systems. It can be customized to M7, M8, M9, or M10 mounts according to specific project requirements, ensuring adaptability for a wide range of automotive applications.
Durable Metal Housing with Low Distortion
The YT-1699-C1 video recorder lens is encased in a robust metal barrel, showcasing its high-quality build. With only 18% distortion, it is considered a low-distortion lens, which is crucial for accurate and reliable recording in various driving conditions. The wifi GPS auto camera lens is composed of four glass lenses, ensuring durability and optical performance.
Versatile Applications Across Diverse Fields
The YT-1699-C1 car dvr lens's utility extends beyond dashcams. It is suitable for backup cameras, passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-1699-C1 dashcam dual-lens is the epitome of automotive lens technology, offering a combination of high-definition imaging, an ultra-wide field of view, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-1699-C1, ensuring that every journey is well-documented and secure.
