Item No :
YT-6052P-A1Sensor :
OV4689F/NO. :
2.0EFL :
1.29Optical TTL :
13.01Thread Size :
M12*P0.5FOV(H/V/D) :
208/124/208Structure :

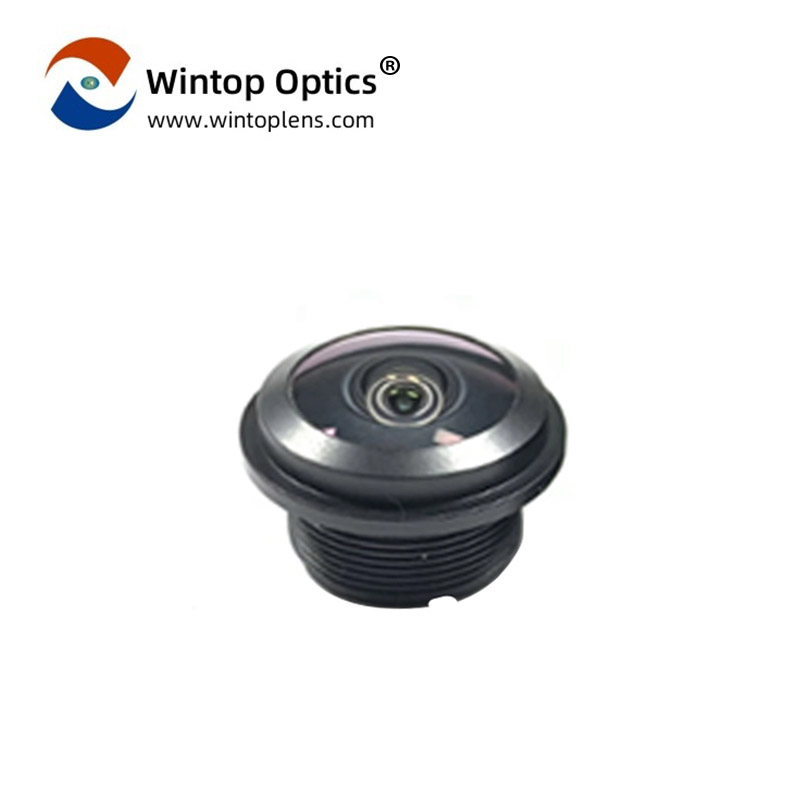

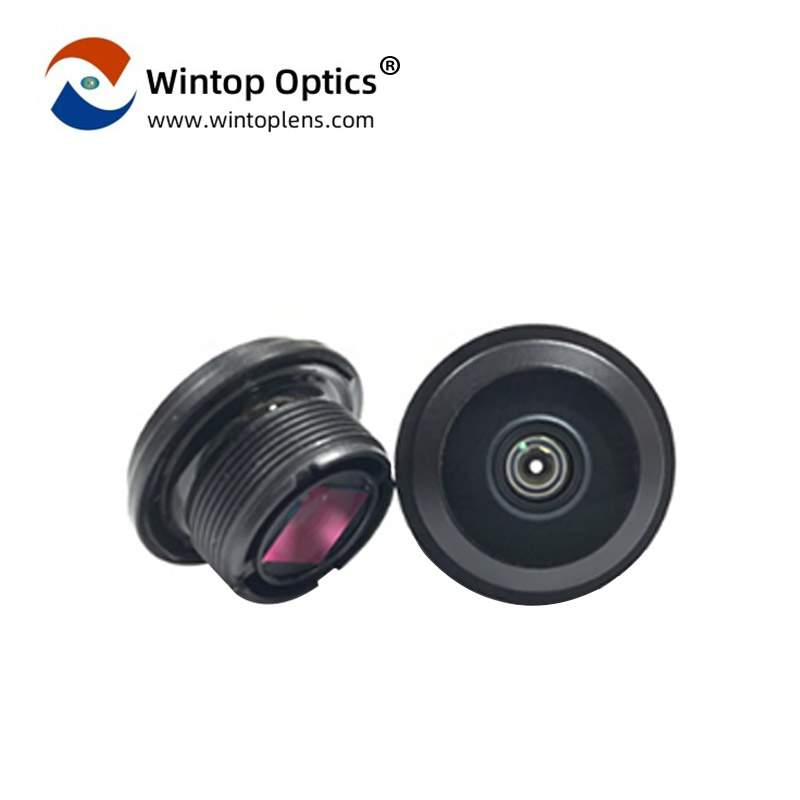

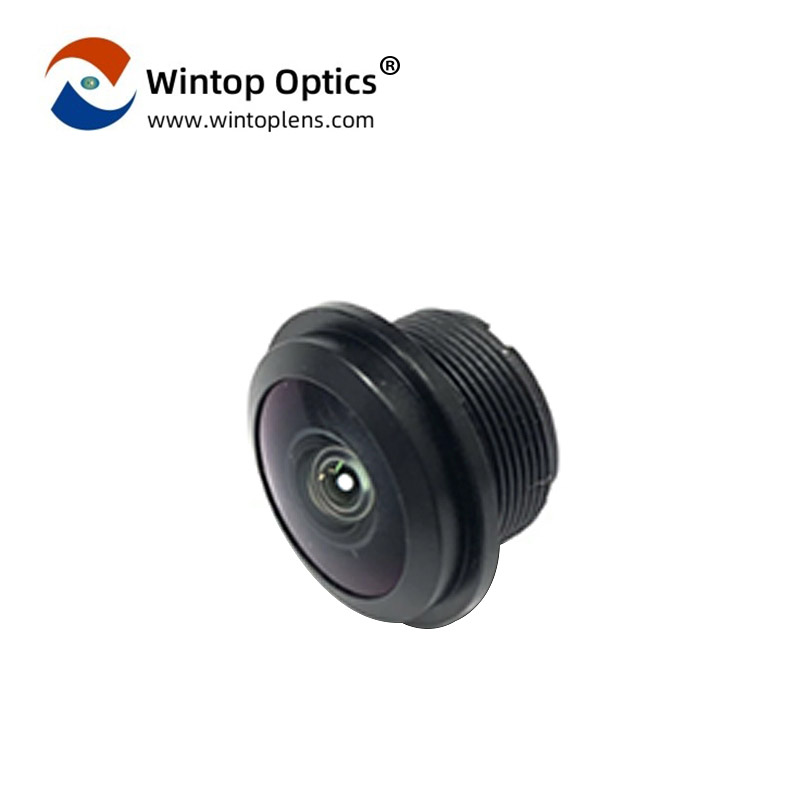

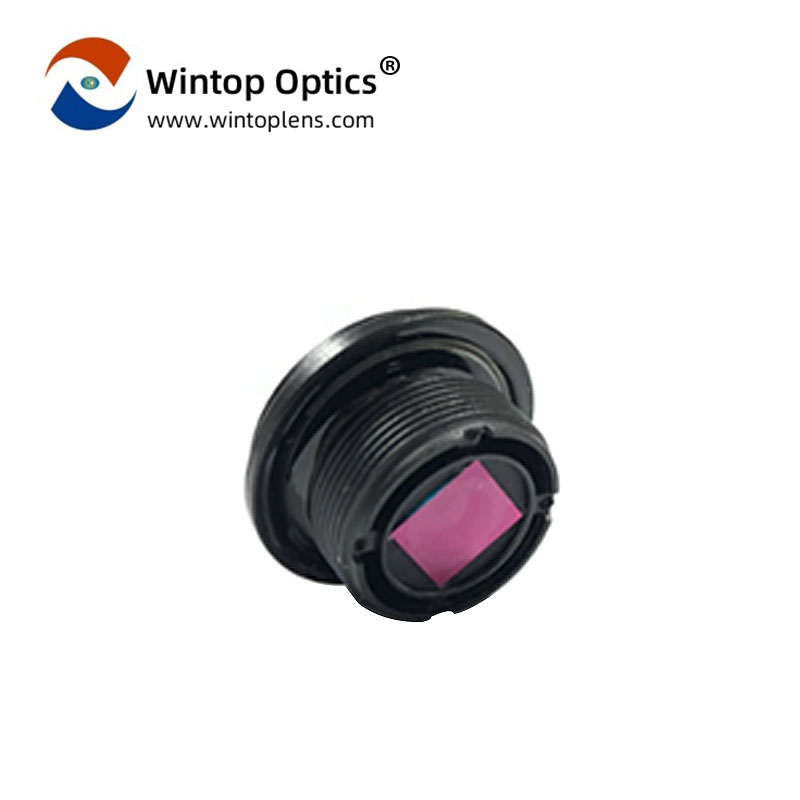

2G3P+IRYT-6052P-A1:The best choice in the field of security
know more about YT-6052P-A1 around view Lens parameters |
|
MAX Img-Circle( mm) | ∅4.76 |
EFL( mm) | 1.29 |
F/NO | 2.0 |
Optical TTL | 13.01 |
Mechanical TTL | 13.01 |
BACK FOCAL LENGTH | 3.54 |
FLANGE BACK LENGTH | 2.67 |
TV DISTORTION | -44% |
RELATIVE ILLUMINATION | ≥60% |
CRA | 25° |
Storage At Temperature | -20℃~+70℃ |
Recent Camera Distance |
0.2 |
WAVELENGTH |
@420~610nm Tacg≥90% T=50% @650±10nm |
Dust Level |
IP67 |
Structure |
2G3P+IR |
360 degree vr panorama camera lens
Increasing the monitoring range and field of view, a wider perspective can provide a more hidden monitoring area, so that the monitoring target has nowhere to hide, so as to monitor and protect the target more comprehensively, which can effectively reduce the monitoring blind spot and improve the overall quality. This perspective can be used to monitor large areas, such as parking lots, halls, plazas or buildings. It provides a more comprehensive and accurate security camera lens, and helps to prevent criminal behavior and detect potential security risks in advance.
650 filter camera lens
Filters can improve the image quality and focus of security monitoring closed-circuit television (CCTV) lenses, providing a clearer and more accurate monitoring picture by filtering out interference components in the light, helping to capture details, reduce reflections, and reduce light source interference, providing more reliable monitoring results.
1.29 inch chip size camera lens
The chip can enhance the resolution and performance of the monitoring system in low-light environments, enabling it to perform perfectly in night vision environments, providing more accurate and reliable image information for security monitoring.
M12 board camera lens
Provide the function of interchangeable lenses to enable the security system to adapt to different surveillance scenarios and needs. By replacing different types of M12 lenses, different field of view ranges, focal lengths and image quality can be achieved to meet the monitoring requirements of national defense, thereby improving the flexibility and effect of the security monitoring system.
fixed focus camera lens
A fixed-focus lens has a fixed focal length and can usually be selected according to the needs of the monitoring area. For specific areas that need to be monitored regularly, using a fixed-focus lens can adjust the focal length at night to ensure that the targets in the monitoring area are clearly visible.
