YT-1727P-W1: The Vanguard of High-Definition Driving Recorder Lenses
know more about YT-1727P-W1 Car Camera Lenses parameters |
Sensor Circle(mm) |
IMX323/AR0230/OV4689 |
Focal Length(EFL) |
3.18mm |
F/NO.(Infinite) |
F1.9 |
Optical TTL |
20.83mm |
Back Focal Length |
4.49mm |
Flange Back Length |
3.05mm |
TV Distortion |
-18% |
Thread Size |
M12*P0.5 Mount |
FOV(D/H/V) |
(IMX323)136°/111°/58°
(OV2710)146°/119°/61°
(AR0330)120°/100°/62°
|
Unparalleled Clarity for the Road Ahead
The YT-1727P-W1 driving recorder lens is an engineering marvel, designed to provide the utmost clarity for in-vehicle surveillance. With an optical focal length (EFL) of 3.18mm and a total length (TTL) of 20.83mm, this lens offers a detailed view of the road, ensuring that every moment is captured with precision.
Ultra-Wide Field of View for Enhanced Visibility
Featuring a diagonal field of view (Dfov) of 136 degrees, a horizontal field of view (Hfov) of 111 degrees, and a vertical angle of 58°, the YT-1727P-W1 dashcam dual-lenses ensure that your vehicle's surroundings are fully within sight. The maximum imaging circle diameter of 7.0mm allows for extensive coverage, making this lens ideal for capturing the broadest perspective of your drive.
F/NO1.9 Aperture for Exceptional Night Vision
Equipped with an F/NO1.9 large aperture, the YT-1727P-W1 video recorder lens is designed to perform exceptionally well in low-light conditions. This ensures that the lens captures clear images, even in the darkest of nights, providing reliable recording for your driving safety.
High-Definition Imaging with 4MP Resolution
The car dvr lens is tailored to match the high-resolution IMX323 OV4689 chip, delivering a 4MP image quality. This clarity allows for the capture of intricate details, making the YT-1727P-W1 4mp lens perfect for high-definition driving recorders that demand the finest image quality.
Customizable Mounting Options for Seamless Integration
The dashboard camera lens comes with an M12*P0.5 mount, and the front cover diameter is 17mm, offering a secure and standardized connection to driving recorder systems. It can be customized to M7, M8, M9, or M10 mounts according to specific project requirements, ensuring adaptability for various automotive applications.
Durable Plastic Barrel with Low Distortion
The YT-1727P-W1 car camera lens is encased in a robust plastic barrel, showcasing its high-quality build. With -18% distortion, it is considered a low-distortion lens, which is crucial for accurate and reliable recording in various driving conditions. The lens is composed of four lenses, ensuring durability and optical performance.
Versatile Applications Across Diverse Fields
The YT-1727P-W1 car camcorder lens's utility extends beyond driving recorders. It is suitable for backup cameras, passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-1727P-W1 dashboard camera lens is the epitome of automotive lens technology, offering a combination of high-definition imaging, a wide-angle field of view, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-1727P-W1, ensuring that every journey is well-documented and secure.

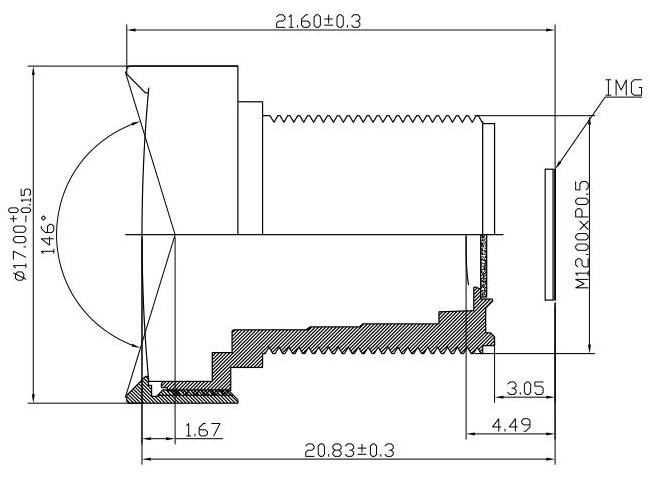

![car dvr lens YT-1727P car dvr lens YT-1727P](/storage/uploads/images/202407/17/1721185920_VQfbHqhjGR.jpg)
