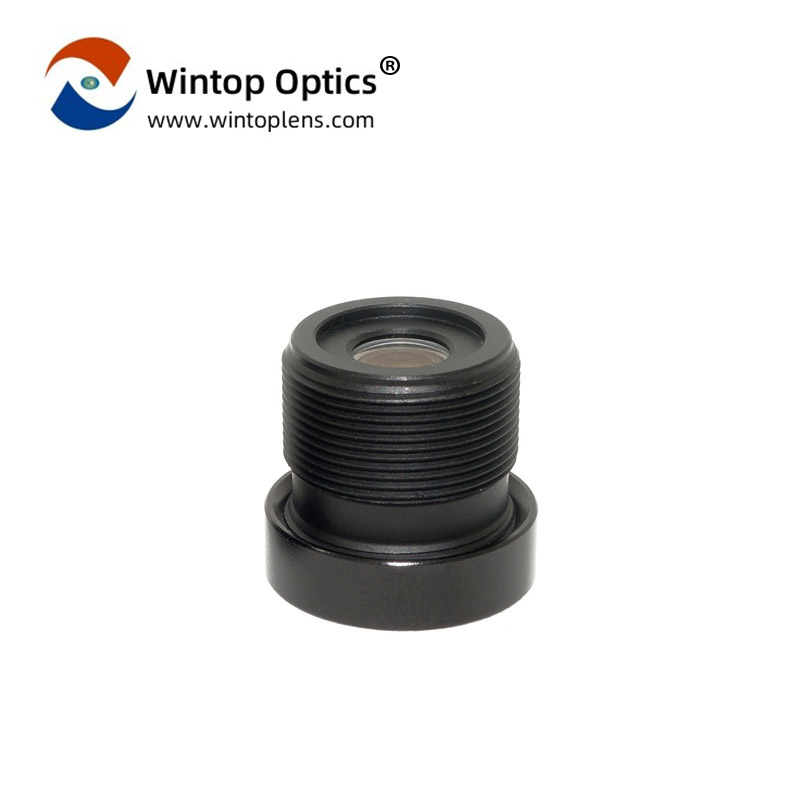

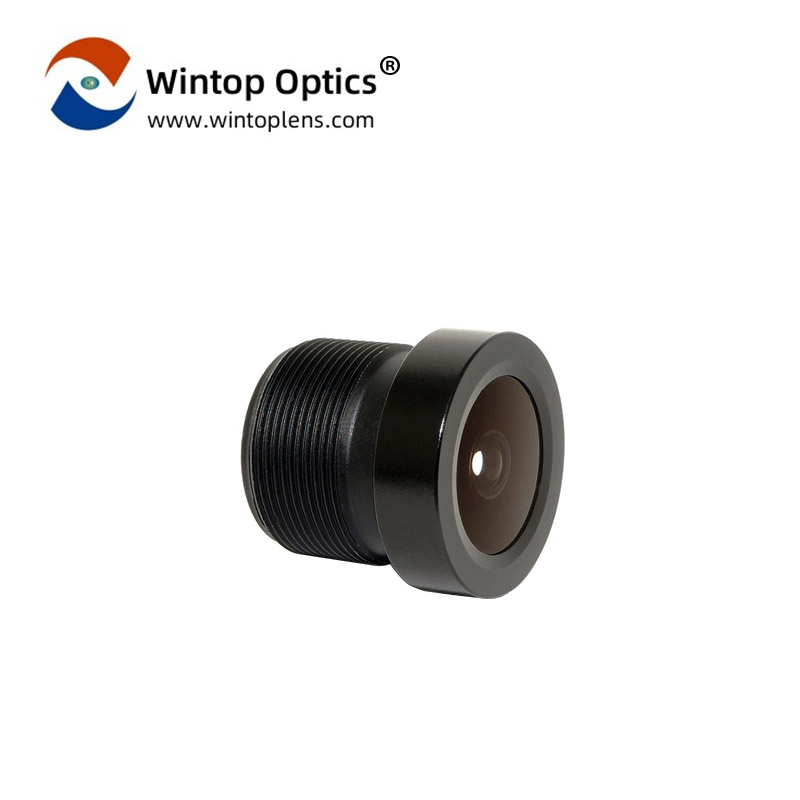

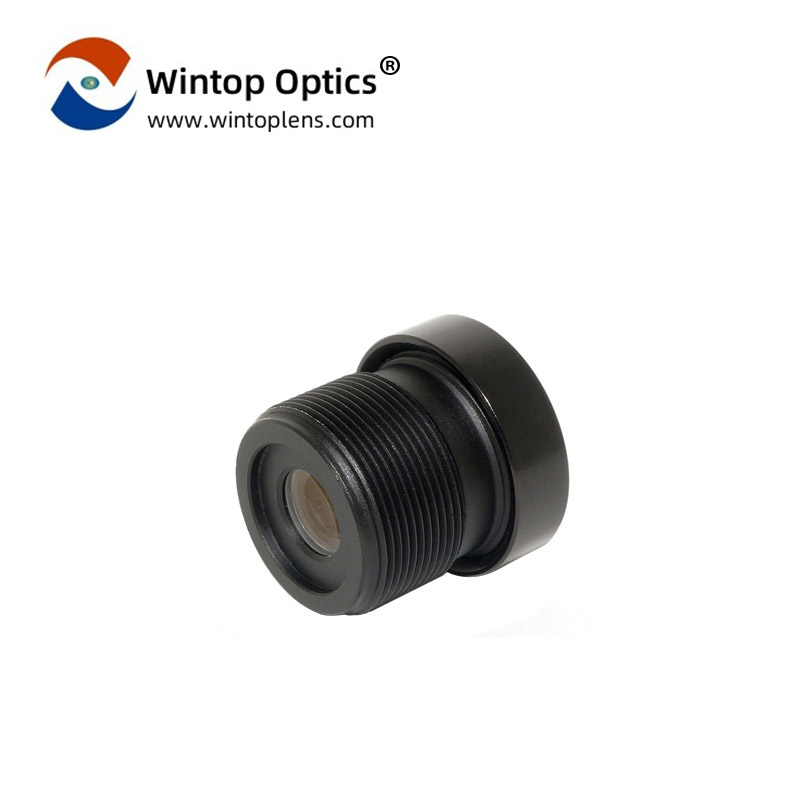

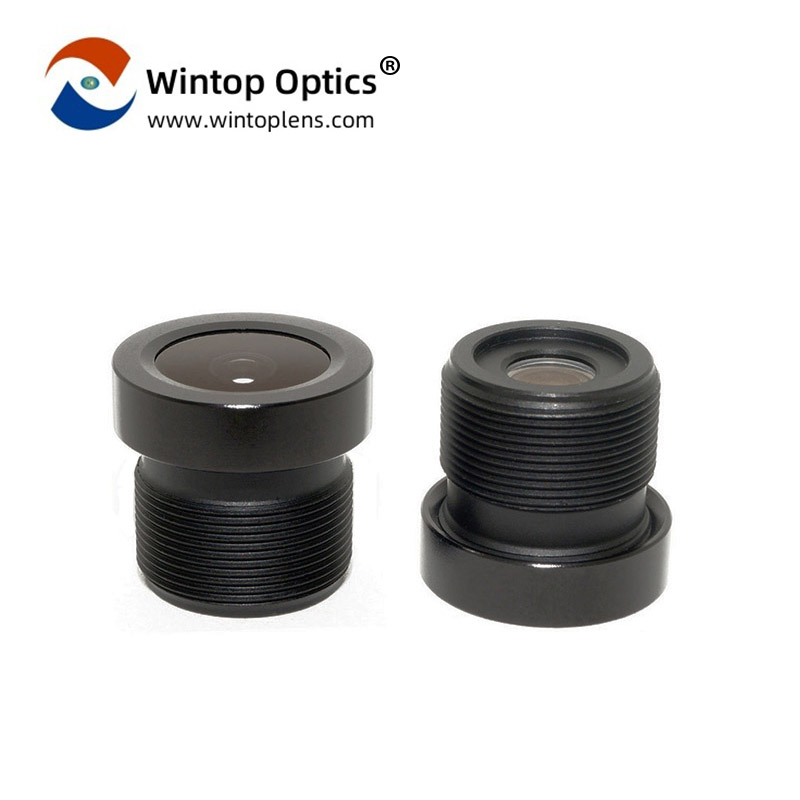

YT-1684P-D2: The High-Definition Chronicler for Your Drives
know more about YT-1684P-D2 Car Driving Recorder Lenses parameters |
Sensor Circle(mm) |
1/3'' |
Focal Length(EFL) |
2.96mm |
F/NO.(Infinite) |
2.4 |
Optical TTL |
16.95mm |
Back Focal Length |
5.0mm |
Flange Back Length |
4.26mm |
TV Distortion |
-14% |
Wave Length |
460~620nm T≥88%
650±10nm T=50%
|
Capturing the Road Ahead with Clarity
The YT-1684P-D2 car DVR lens is designed to provide high-definition imaging for your vehicle's surveillance needs. With an optical lens focal length (EFL) of 2.96mm and a total length (TTL) of 16.95mm, this dachcam lenses offers a clear and expansive view of the road, ensuring that every detail is captured with precision.
Ultra-Wide Field of View for Complete Coverage
Featuring a diagonal field of view (Dfov) of 140 degrees, a horizontal field of view (Hfov) of 105 degrees, and a vertical angle of 75°, the YT-1684P-D2 car dvr lenses ensures complete coverage of the vehicle's surroundings. The maximum imaging circle diameter of 6.7mm allows for broad surveillance without missing any critical angles.
F/NO2.4 Aperture for Diverse Lighting Conditions
Equipped with an F/NO2.4 aperture, the YT-1684P-D2 car dvr camera lenses is adept at handling various lighting conditions, from bright daylight to dimly lit streets. This ensures that the lens captures clear images, regardless of the time of day, providing reliable recording for your driving safety.
Customizable Mounting Options for Versatile Applications
The dvr lens comes with an M12*P0.5 mount, and the front cover diameter is 14mm, offering a secure and standardized connection to car DVR systems. It can be customized to M7, M8, M9, or M10 mounts according to specific project requirements, ensuring adaptability for a wide range of automotive applications.
Durable Construction with Low Distortion
The YT-1684P-D2 car black box lens is encased in a robust plastic barrel and composed of four glass lenses, ensuring durability and optical performance. With only 14% distortion, it is considered a low-distortion lens, which is crucial for accurate and reliable recording in various driving conditions.
Versatile Applications Across Diverse Fields
The YT-1684P-D2 car dvr lens's utility extends beyond car DVRs. It is suitable for backup cameras, passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-1684P-D2 driving recorder lens is the epitome of automotive lens technology, offering a combination of high-definition imaging, an ultra-wide field of view, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-1684P-D2, ensuring that every journey is well-documented and secure.
