Customized Lens Supplier 1/3 "f/2.2 6G Structure Tachograph Car DVR Aerial Lens YT-1559-A1

  • F2.2Camera Lenses
  • High-resolution driving recorder camera lens
  • Item No :

    YT-1559-A1
  • Sensor :

    1/3''
  • F/NO. :

    2.2
  • EFL :

    2.25
  • Optical TTL :

    16.85
  • Thread Size :

    M12*P0.5
  • FOV(H/V/D) :

    126/94/164
  • Structure :

    6G
know more about YT-1559-A1 lens parameters
EFLmm 2.25
F/NO. 2.2
Optical TTL 16.85
Mechanical TTL 13.1
BACK FOCAL LENGTH 4.74
FLANGE BACK LENGTH 3.75
TV DISTORTION -13%
CRA 15.8
Field of view(H/V/D) 126/94/164
STRUCTURE 6G

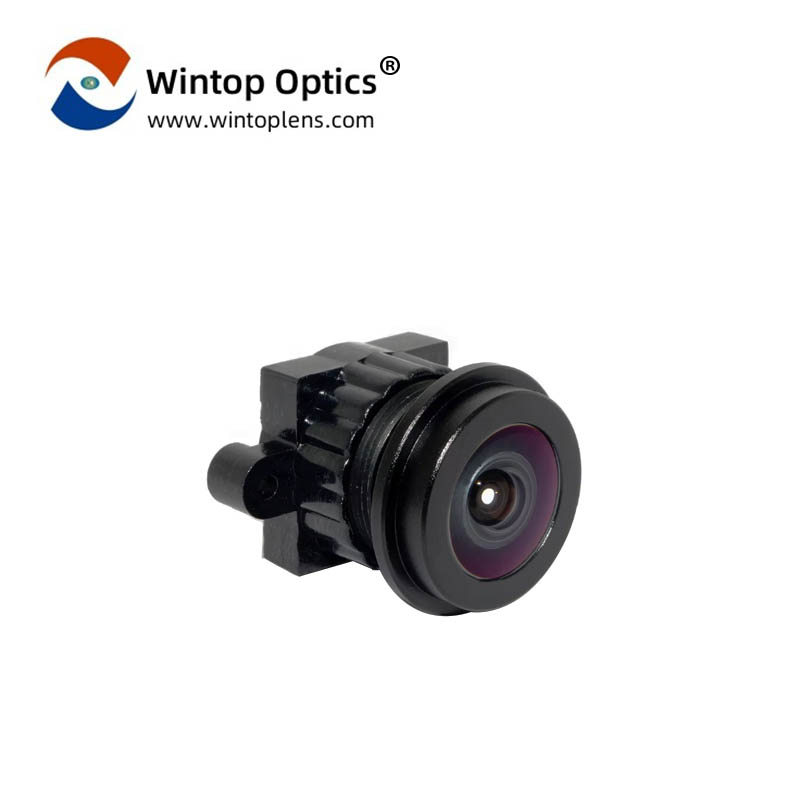

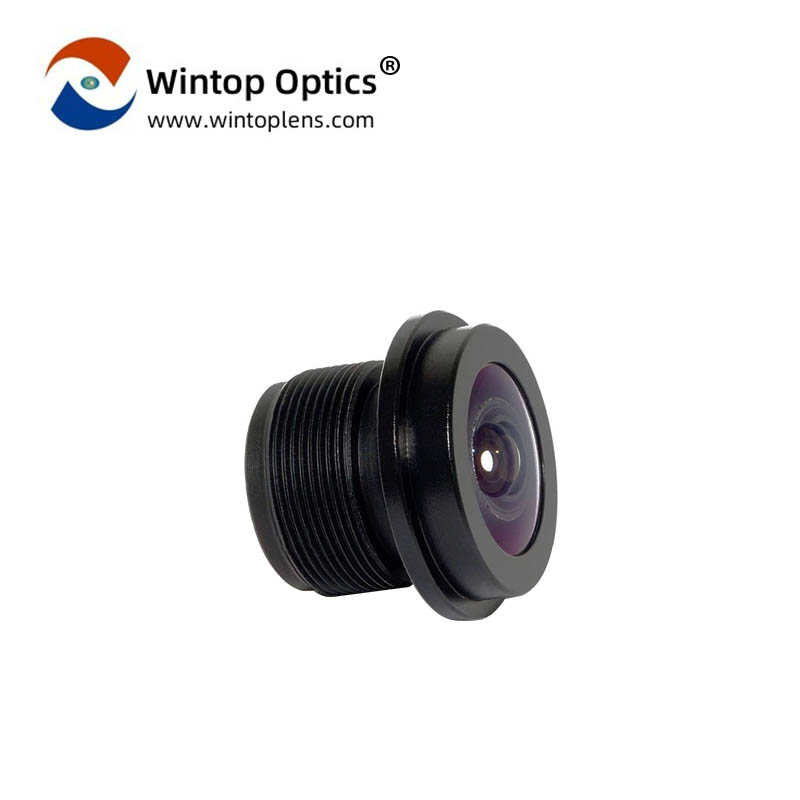

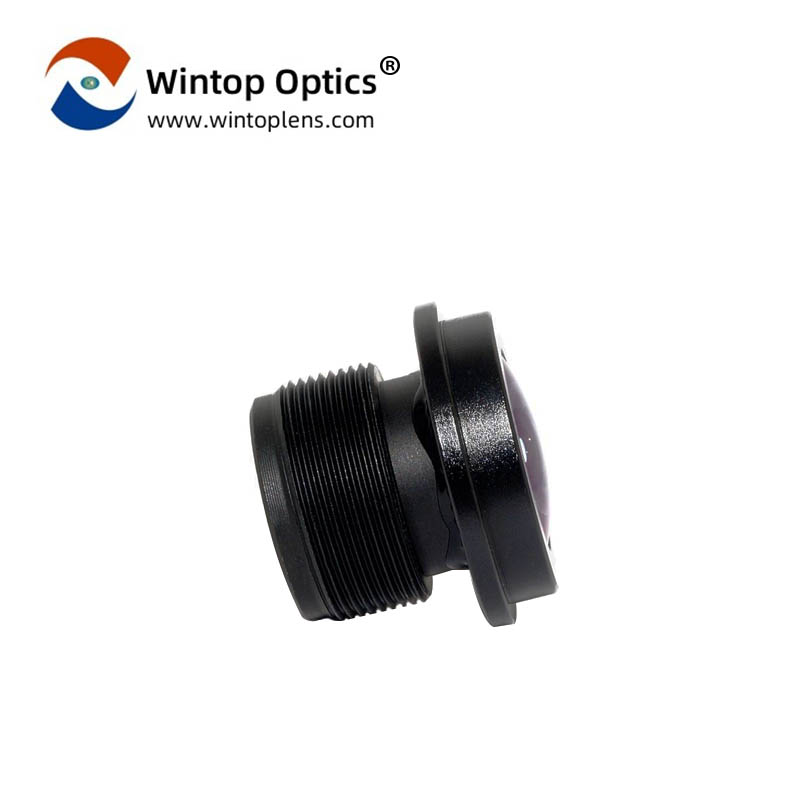

Yunding optical YT-1559-A1 front driving recorder high definition lens

The Yunding Optical YT-1559-A1 is a high-quality front-facing lens specially designed for tachographs, known for its excellent optical performance and advanced technology. It features a 2.25mm focal length and 2.2 aperture, providing you with clear and bright images and a wide field of view, enabling you to capture every detail on the road.

The total optical length is 16.85, which naturally integrates into the appearance of the tachograph without taking up too much space, while maintaining the overall appearance. The resolution is 1280 * 960, which provides high definition video and image quality, allowing you to clearly distinguish details such as vehicle number plates or road signs.
