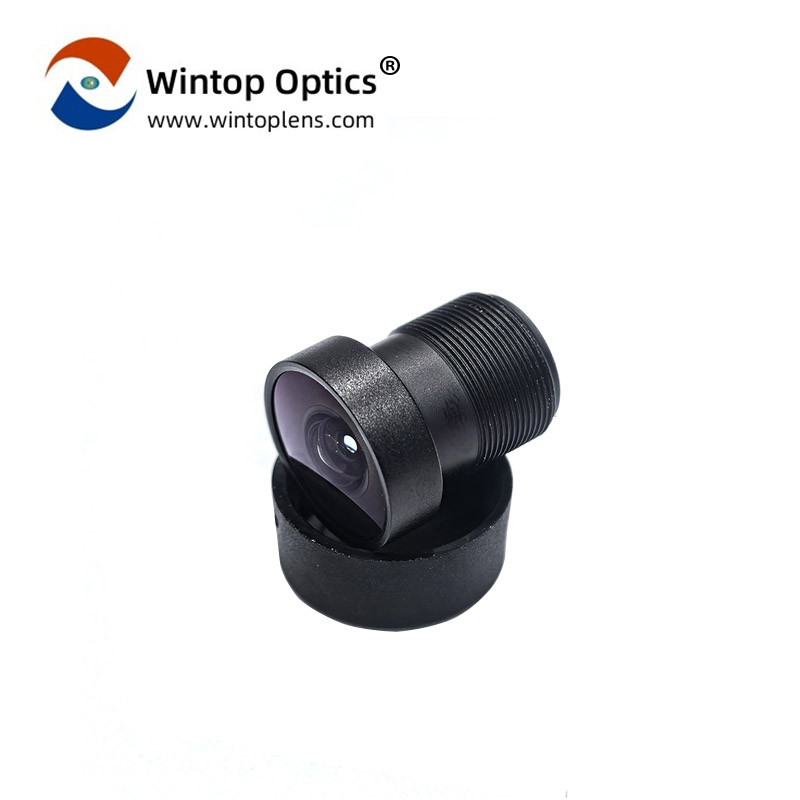

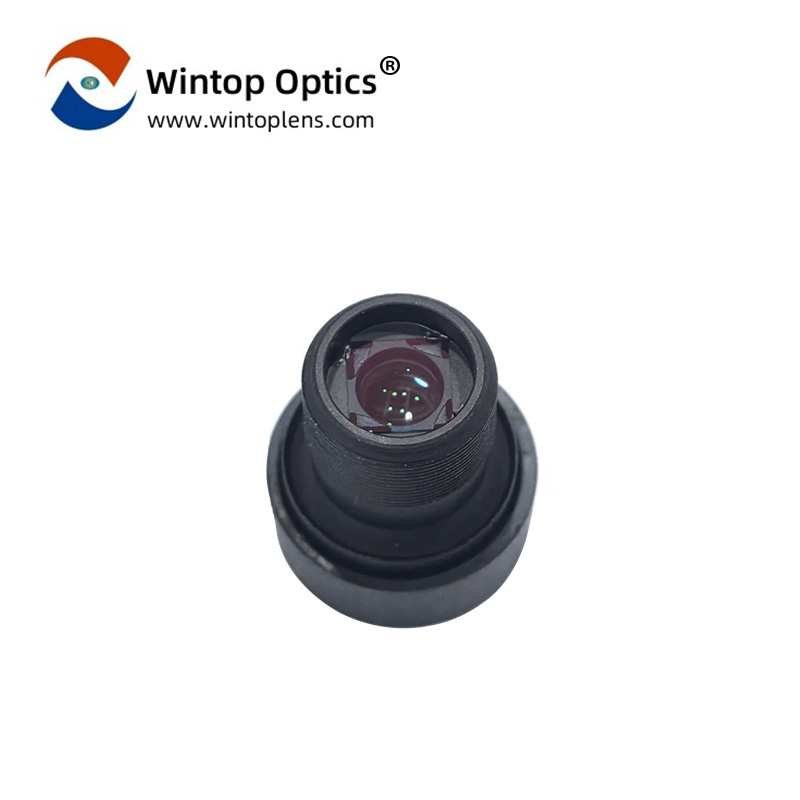

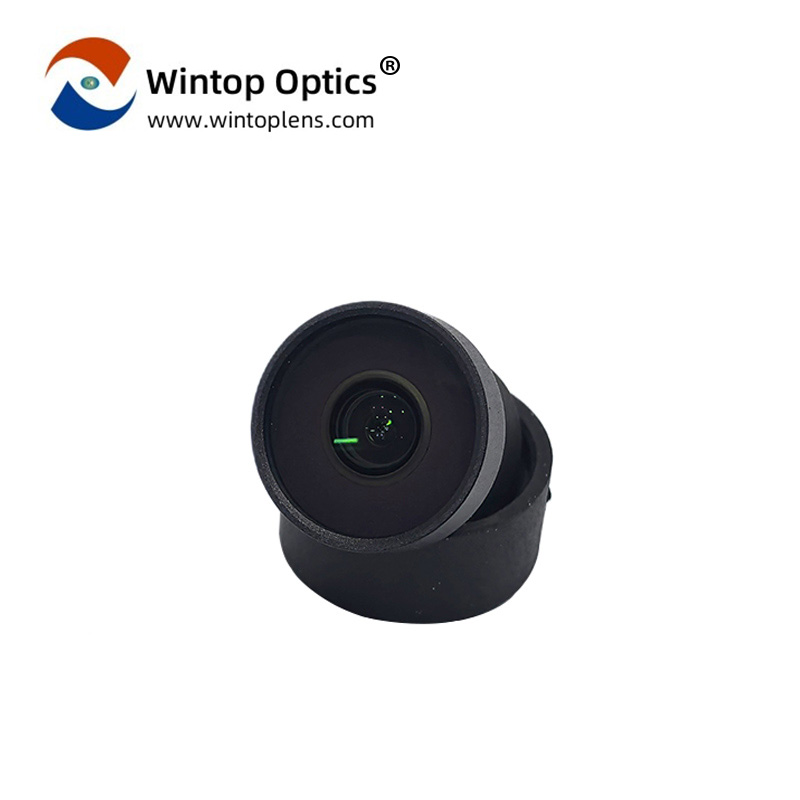

All-Glass Blue Glass IR IMX675 5MP Dashcam Lens for car monitoring camera YT-1739-F8

  • IMX335 IMX675 Sensor Dashcam Lens
  • Fisheye Hfov 120 Degree Lens
  • 5MP Driving Recorder Lens
  • Metal Lens Barrel with Blue Glass IR Filter
  • F/NO.2.1 Aperture Car DVR Lens
  • Item No :

    YT-1739-F8
  • Sensor :

    IMX675 IMX335(2560*1440)
  • F/NO. :

    2.1
  • EFL :

    2.6mm
  • Optical TTL :

    20.99mm
  • Thread Size :

    M12 Lens
  • FOV(H/V/D) :

    120 degree/141°/65 degree
  • Structure :

    /



YT-1739-F8: The High-Definition DVR Lens of the Road



know more about YT-1739-F8 Car DVR Camera Lens parameters
MAX Img-Circle( mm) ∅6.60
EFL( mm) 2.6
F/NO 2.1
Optical TTL 20.99mm
BACK FOCAL LENGTH 6.16mm
FLANGE BACK LENGTH 3.25mm
TV DISTORTION <-20%
CRA 15°
Recent Camera Distance

0.2

Sensor

IMX675 IMX335



Unparalleled Clarity for Vehicle Monitoring

The YT-1739-F8 dashcam lens is a specialized lens designed for in-vehicle recording applications, offering a EFL 2.6mm (optical focal length) and a compact TTL 20.99mm (optical total length). This lens is meticulously engineered to provide high-definition imaging in the most demanding road conditions.



Exceptional Imaging with Premium CMOS Sensor Compatibility

Pairing perfectly with the 1/2.8" inch CMOS sensors IMX335 and IMX675, the YT-1739-F8 dvr lens achieves a stunning 5-megapixel/5MP lens high-definition resolution. The driving recorder lens captures a Dfov 141°diagonal angle,Hfov 120 degree lens horizontal ultra-wide-angle field of view, and a 65° vertical angle, with distortion controlled to less than -20%. The maximum imaging circle diameter of 6.6mm ensures complete scene coverage.



Optimized Aperture for Diverse Lighting Conditions

Featuring an F/NO.2.1 aperture, the YT-1739-F8 dvr lens is optimized for various lighting conditions, ensuring clear and bright images throughout the day and into the night. This advanced aperture technology guarantees reliable recording of the driving process in all weather and light conditions.



Robust Construction for All-Weather Reliability

Built to withstand the harshest environments, the YT-1739-F8 car camera lens operates smoothly in temperatures ranging from -40℃ to +85℃. The vehicle lens remains functional and provides clear recordings, safeguarding driving safety in all conditions.



Customizable Interface for Seamless Integration

The automotive lens features an M12 mount (M12*P0.5 lens) for easy integration with various in-vehicle DVR systems. The YT-1739-F8 dvr lens front cover diameter is 15mm, and the interface can be customized according to specific customer requirements, allowing for versatile installation options.



Advanced Lens Construction with Superior Optical Performance

The YT-1739-F8 dashcam lens is encased in a durable metal lens barrel, signifying its high-quality build. As a all-glass lens with a blue glass IR filter, it offers excellent MTF performance and reliability. The lens provides high transmittance (greater than 90%) in the 420~620nm spectral band and a relative illumination of greater than 68%, ensuring clear and vibrant images.



Versatile Applications for Extended Utility

The YT-1739-F8 dashcam lens is not limited to vehicle DVR applications. Its wide field of view and high imaging quality make it suitable for a range of uses, including rearview cameras, surround view cameras, front view cameras, consumer electronics camera, AI robot monitoring, video conferencing, smart home surveillance, USB monitoring, IP cameras, facial recognition cameras and so on.



In Summary

The YT-1739-F8 DVR lens is the epitome of DVR camera technology, offering a combination of high-definition imaging, an ultra-wide field of view, superior night vision, and robust construction. Its advanced features make it an indispensable tool for vehicle safety and surveillance applications. Experience the reliability and excellence of the YT-1739-F8 imaging 4k lens, ensuring that every journey is documented with clarity and precision.



In the world of optics, web searches are no substitute for our direct, comprehensive, customer-tailored application assistance.   Send specific requirements email (lina@yuntal.com) to have a professional lens application engineer contact you for personal assistance.

Our lens specification include: AA lens,M12*P0.5 lens, M10*P0.5 lens, M9*P0.5 lens,M8*P0.5 lens, M7*P0.35 lens, 2 megapixel lens, 3 megapixel lens, 5 megapixel lens, 12 megapixel lens, 14 megapixel lens, 16 megapixel lens,low distortion lens,zero distortion lens,F1.6 Lens, F2.0 lens,F2.2 lens, F2.4 lens, F2.5 lens, F2.8 lens....Support Customized Lenses!
