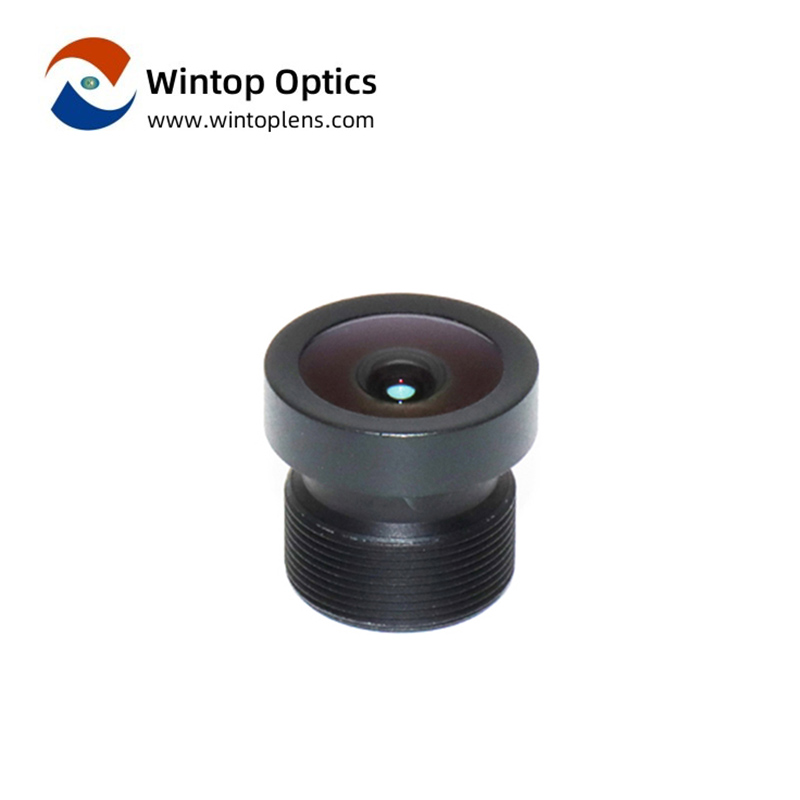

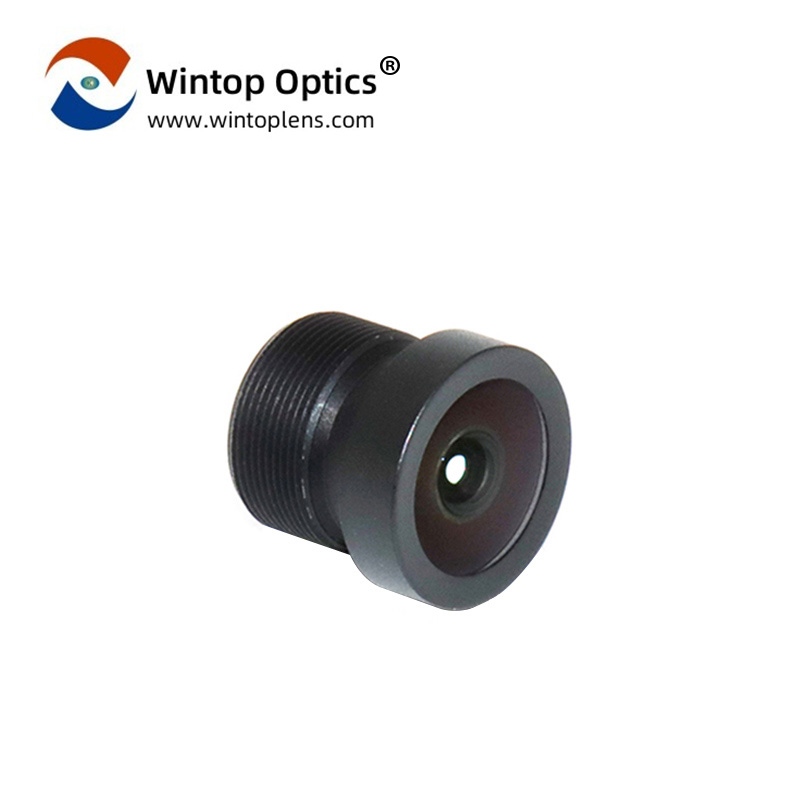

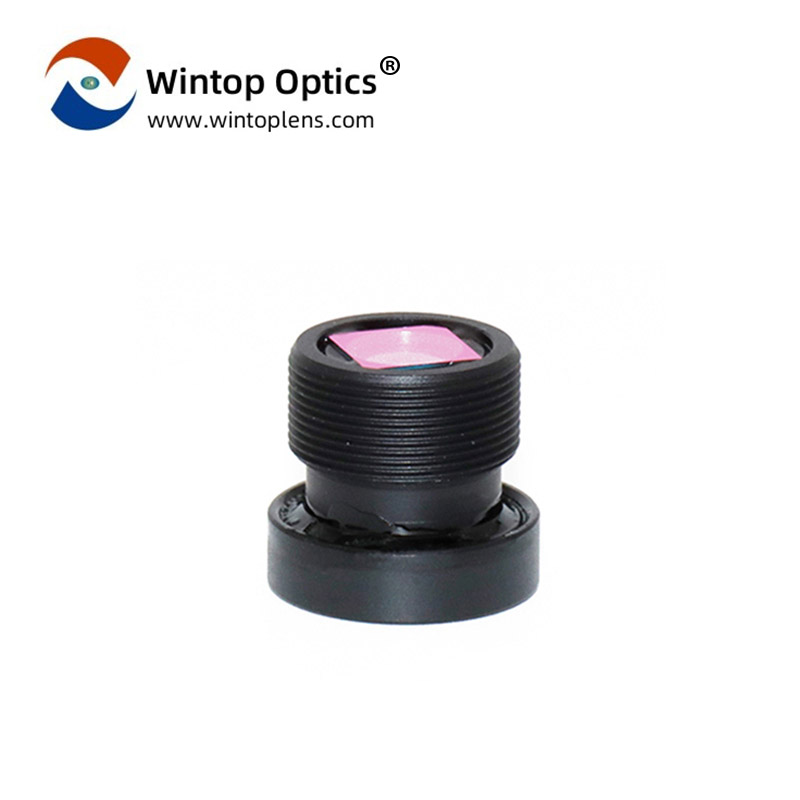

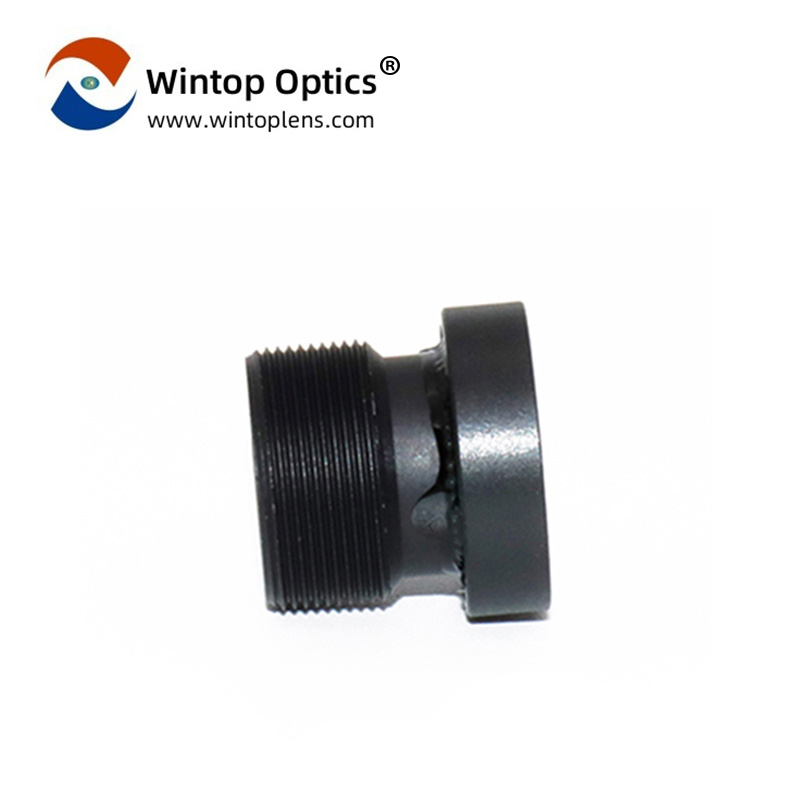

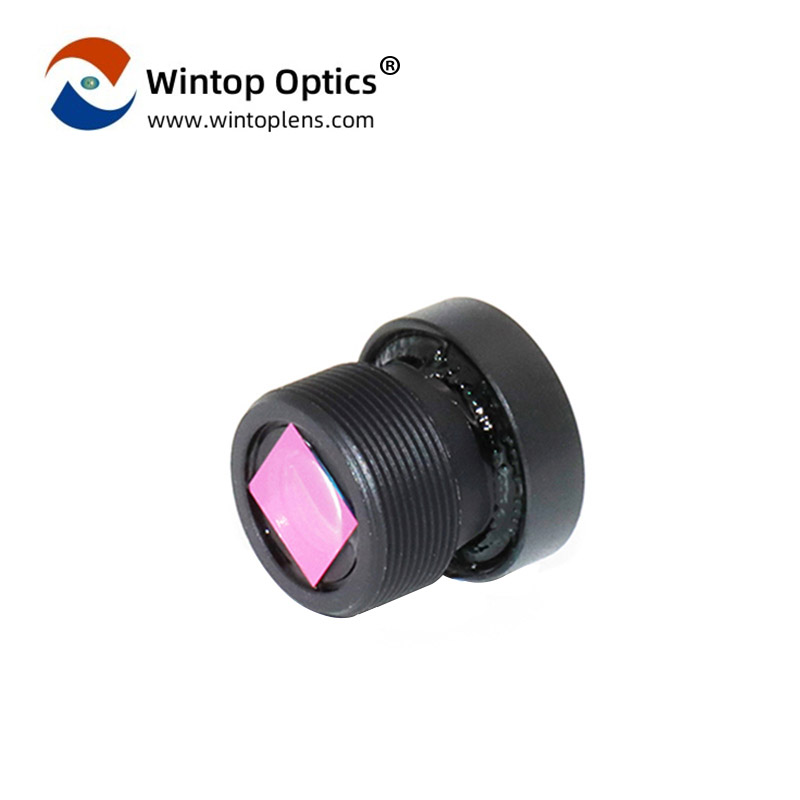

4MP IMX307 1/2.8'' Blue Glass IR Filter M12 Mount Lens Driving Recorder Lens YT-1734-F8

YT-1734-F8: clear record, safe driving.

The camera lens is one of the key components of a camera, and its parameters and characteristics directly affect the quality and effect of the image. Here are the details of the camera lens introduced in this article:

Maximum image circle (MAX Img-Circle): Ø 6.7mm

This parameter indicates the diameter of the maximum image circle that the camera lens can cover, and refers to the maximum area where the image can be displayed completely on the sensor.

Distortion value: -24%

Distortion refers to the image distortion phenomenon generated during the imaging process of the camera lens. Negative values indicate that the distortion is barrel distortion, and positive values indicate that the distortion is pillow distortion. The distortion value of this lens is -24%, which is a relatively small distortion.

Recent Camera Distance: 0.2m

The closest shooting distance refers to the closest distance that the camera lens can achieve from the subject. The closest shooting distance of this camera lens is 0.2 meters, which means that a clear image can be obtained within this distance.

Pixel Size: 2.9μm × 2.9μm

The pixel size represents the physical size of each pixel on the camera sensor. The pixel size of the lens of this camera is 2.9 microns x 2.9 microns. This parameter is related to image detail capture and noise control.

Central ray angle (CRA): 14 °

The central ray angle is the angle between the light emitted from the center of the camera lens and the optical axis. The central ray angle of the lens of this camera is 14 degrees. This parameter determines the field of view of the image and the wide-angle capability of the camera lens.

Wavelength range (WAVELENGTH):

In the wavelength range of 420 to 600 nm, the transmittance through the lens is 90%.At a wavelength of 650 + 10nm, the transmittance is 50%.the above is the key parameters and features of this camera lens.

Products are mainlyused in high-end imaging fields such as automotive monitoring camera lenses, Car DVR lenses, vehicle ADAS/CMS/OMS lenses, security surveillance cctv camera lenses, intelligence home devices lenses, face recognition camera lenses .
