Item No :
YT-7625-B8Sensor :
1960*1080 2.79umF/NO. :
f2.0 lensEFL :
3.07mmOptical TTL :
13.54mmThread Size :
M8 mount LensFOV(H/V/D) :
102°/57°/120°Structure :
4E+ blue glass IR FilterYT-7625-B8: The Auto Panoramic Camera Lens for Enhanced Driving Security
know more about YT-7625-B8 Automotive Panoramic Camera Lens parameters |
||||
Img-Circle( mm) | ∅6.9 | |||
EFL( mm) | 3.07mm | |||
F/NO. | 2.0 | |||
Optical TTL | 13.54 | |||
Mechanical TTL | 13.71 | |||
BACK FOCAL LENGTH | 4.22 | |||
FLANGE BACK LENGTH | 2.98 | |||
TV DISTORTION | -42% | |||
RELATIVE ILLUMINATION | 50% | |||
CRA | 18° | |||
Pixel Size (μm) | 2.79um*2.79um | |||
Storage At Temperature | -40℃~+85℃ | |||
Recent Camera Distance | 0.2 | |||
Infrared | Non-infrared | |||
WAVELENGTH | @420~600nm Tavg≥90% @650nm±10nm T=50% |
|||
Dust Level | IP69K | |||
STRUCTURE | 4E+ Blue Glass IR Filter |
Unparalleled Peripheral Vision for Vehicles**
The YT-7625-B8 fisheye lens is a state-of-the-art side view monitoring lens designed for comprehensive vehicle surveillance. With an optical focal length (EFL) of 3.07mm and a total length (TTL) of 13.54mm, this lens provides a detailed view of the areas adjacent to the vehicle, ensuring that every angle is covered.
Wide-Angle Panoramic Coverage
Featuring a diagonal field of view (Dfov) of 120 degrees, a horizontal field of view (Hfov) of 102 degrees, and a vertical angle of 57°, the YT-7625-B8 M8 mount lens ensures that the vehicle's surroundings are fully within sight. The maximum imaging circle diameter of 6.9mm captures the full spectrum of activity, leaving no blind spots.
F/NO2.0 Aperture for Exceptional Low-Light Performance
Equipped with an F/NO2.0 large aperture, the YT-7625-B8 parking monitoring lens is designed to perform exceptionally well in low-light conditions. This ensures that the lens captures clear images, even in the darkest of nights, providing reliable recording for vehicle security systems.
High-Definition Imaging with 3MP Resolution
Tailored to match the OmniVision CMOS sensor with 1080P resolution, the YT-7625-B8 high resolution lens delivers 3MP high-definition imaging. This clarity allows for the capture of intricate details and clear images of the vehicle's surroundings, essential for accurate monitoring and recording.
Customizable Mounting Options for Seamless Integration
The car surround view lens features an M8 mount, with a front cover diameter of 12mm, offering a secure and standardized connection to various vehicle camera systems. It can be customized to AA Gluing lenses or other thread sizes such as M12, according to specific project requirements, ensuring adaptability for different automotive applications.

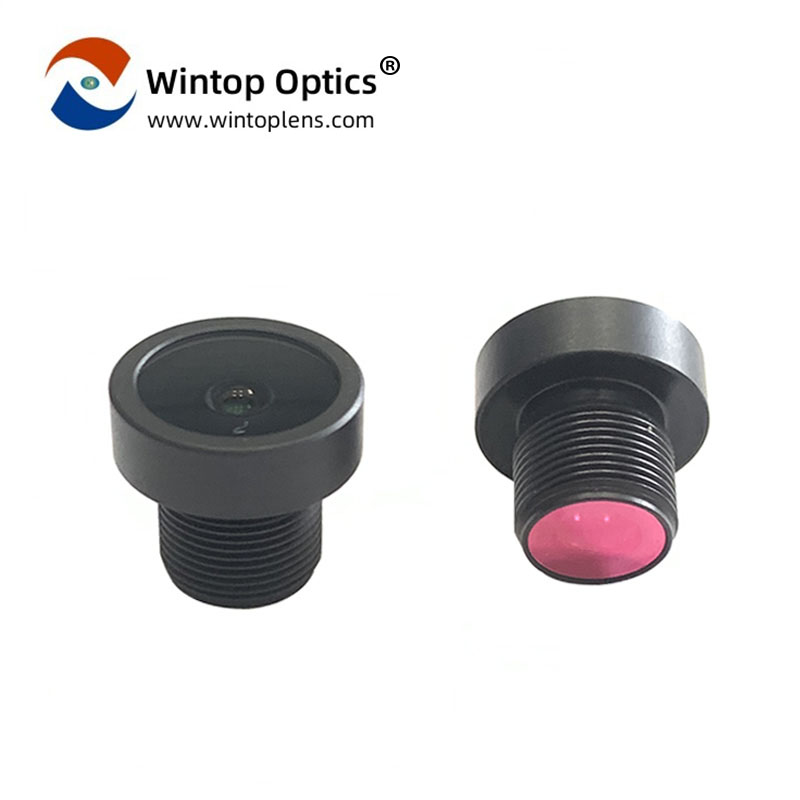

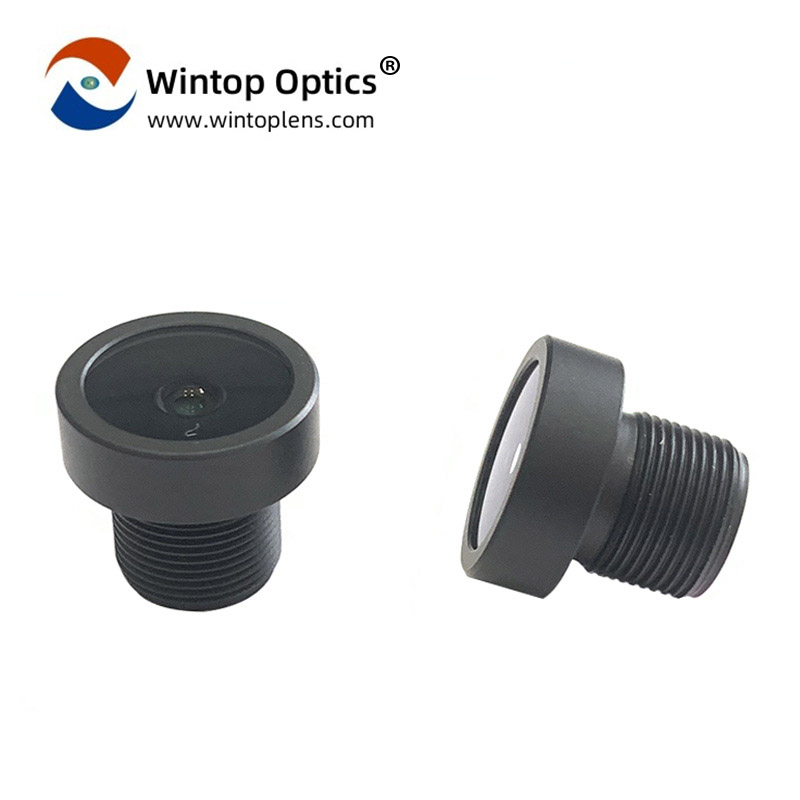

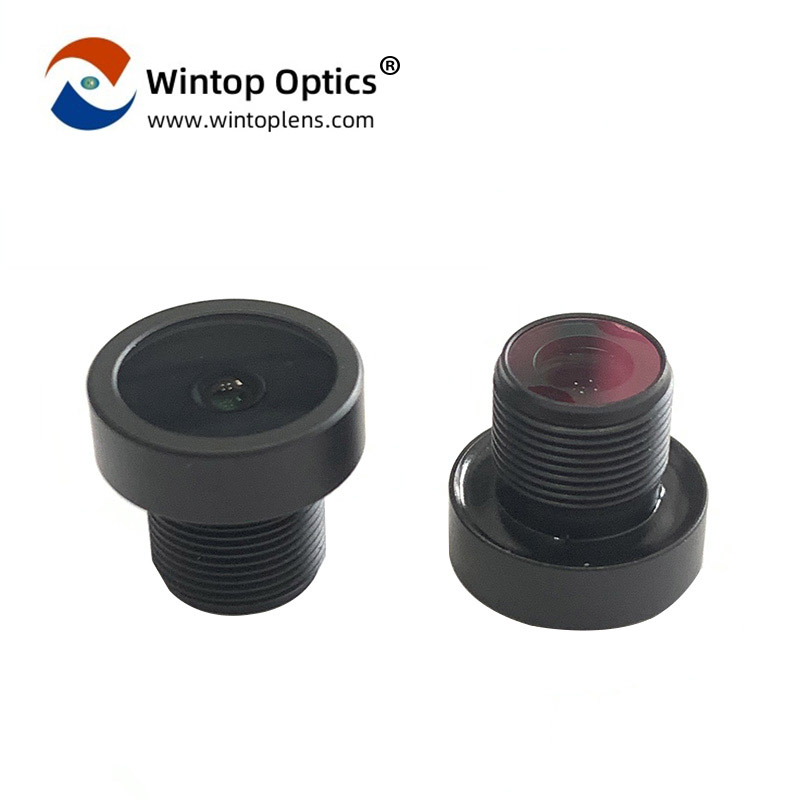

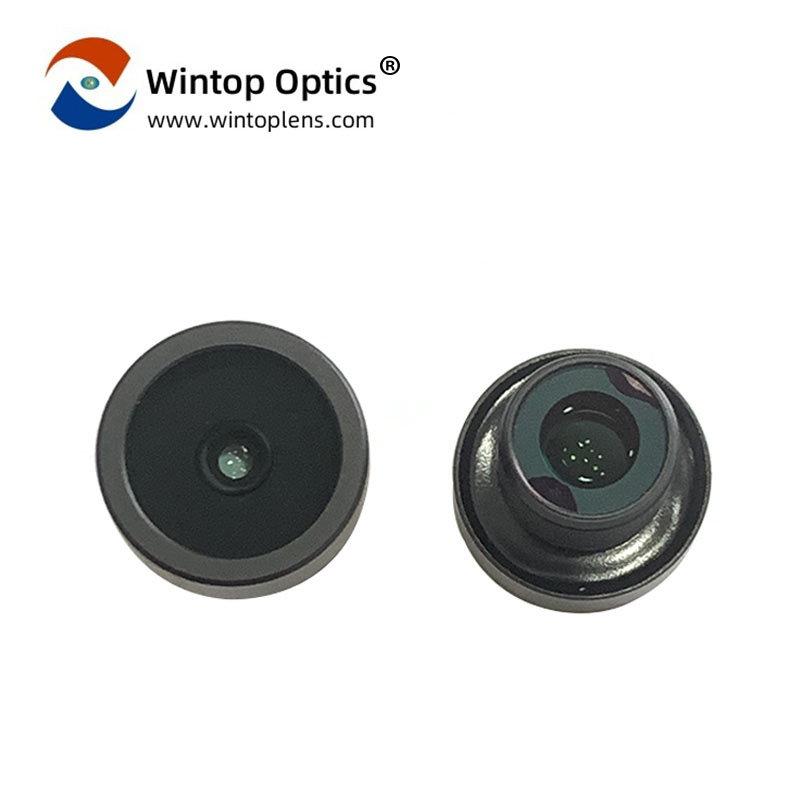

Durable Metal Housing with Advanced Optical Technology
The YT-7625-B8 fisheye lens is encased in a robust metal barrel, showcasing its high-quality build. With a blue glass IR filter included for better MTF performance, this lens is designed to meet diverse needs. The option for a filter-free version is also available.
Rugged and Reliable for Extreme Conditions
With an IP69K rating for water and dust resistance and TS16949 certification, the YT-7625-B8 car camera lens is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it suitable for all weather conditions.
Versatile Applications Across Diverse Fields
The YT-7625-B8 panoramic lens's utility extends beyond vehicle monitoring. It is suitable for smart door lock surveillance, facial recognition systems, backup cameras, passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and more.
In Summary
The YT-7625-B8 m8 mount lens is the epitome of vehicle surveillance lens technology, offering a combination of wide-angle panoramic coverage, high-definition imaging, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-7625-B8, ensuring that every journey is well-documented and secure with a clear perspective.
