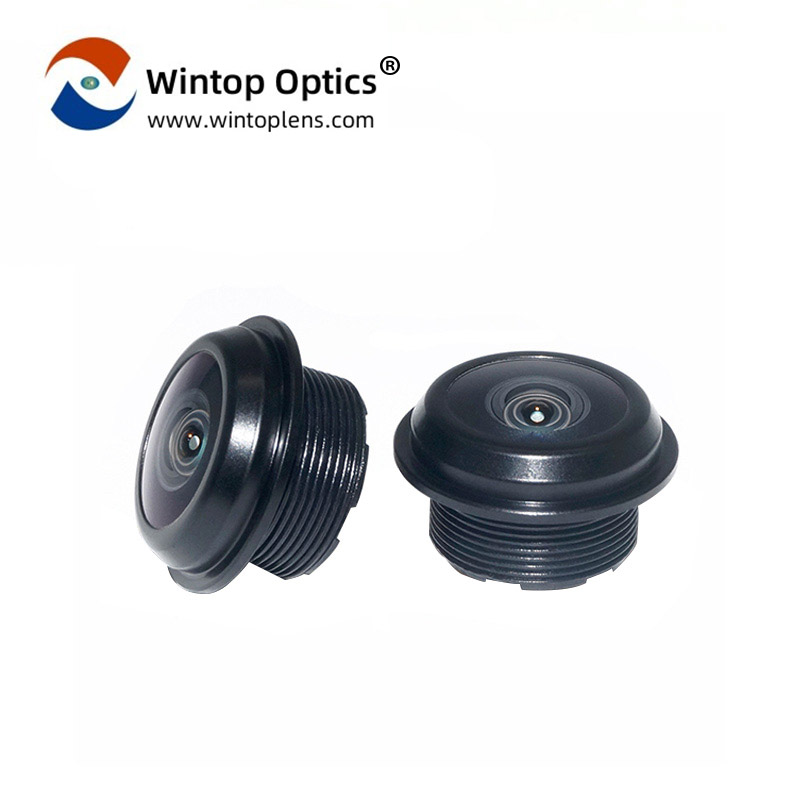

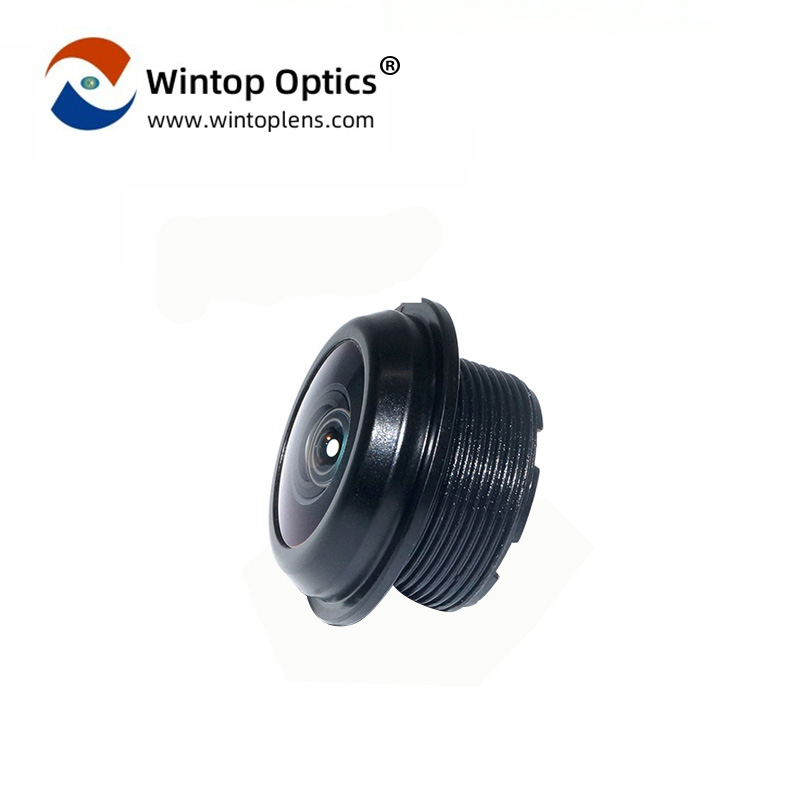

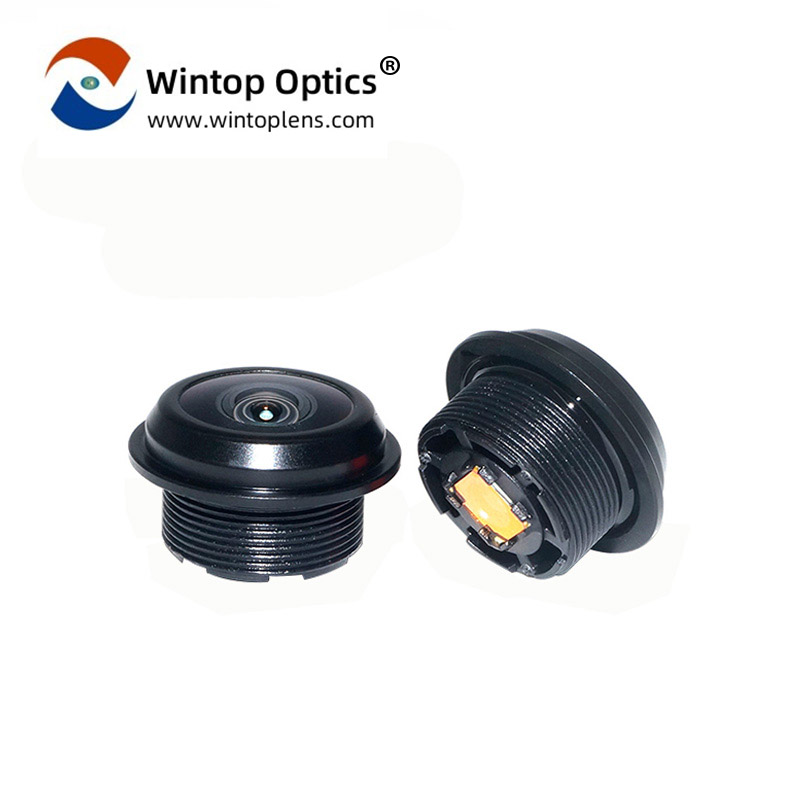

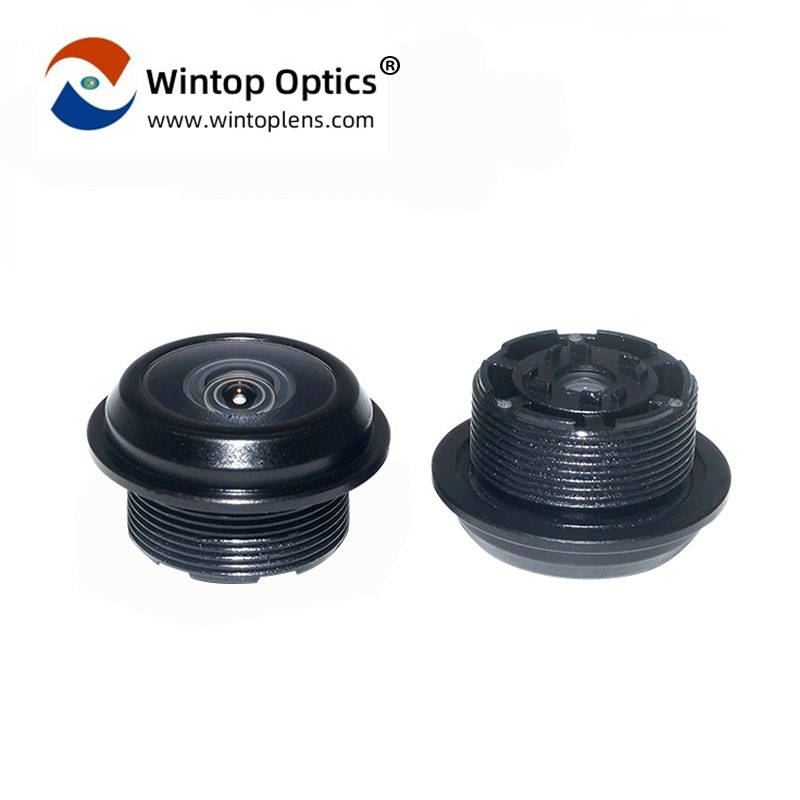

360 Degree Wide Angle Hfov200 Surround View Car Camera Lens YT-7042P-A1

YT-7042P-A1: The Ultimate Vehicle Surround View Monitoring Lens

The YT-7042P-A1 in-vehicle surround view monitoring lens is a high-performance, cutting-edge product designed to meet your diverse surveillance needs on the road. Here are the outstanding competitive advantages of this exceptional lens:

1. Outstanding Optical Parameters

The optical focal length (EFL) of the YT-7042P-A1 surround view lens is 1.29mm, with a total optical length (TTL) of 12.95mm and a back focal length (BFL) of 3.48mm. This precise optical design ensures clear and accurate imaging, allowing you to capture every detail on the road with ease.

2. Wide-Angle and High-Resolution Imaging

Matched with a 1/3'' sensor, the YT-7042P-A1 is a fisheye lens that achieves a wide-angle effect. With a diagonal field of view (Dfov) of 200 degrees, a horizontal field of view (Hfov) of 200 degrees, and a vertical field of view of 140 degrees, this lens provides a broad perspective and a maximum imaging circle diameter of 4.8mm. Whether it's monitoring the front, rear, sides, or interior of the vehicle, the YT-7042P-A1 panoramic lens ensures a comprehensive and clear view, enhancing your driving safety and awareness.

3. Large Aperture and High-Definition Pixels

The aperture of the YT-7042P-A1 arround view lens is F/NO 2.4, which allows more light to enter and enables clear imaging even in low-light conditions.

You'll enjoy sharp and vivid images with high-resolution pixels, ensuring that every detail is captured with precision and clarity.

4. Versatile Mounting Options

The interface of the YT-7042P-A1 optical lens is an m12*P0.5 mount lens, and the diameter of the front cover is 14mm. To meet the specific requirements of your projects, it can be custom-adjusted to m7 mount, m9 mount, m10 mount, or AA lens, providing you with flexibility and convenience in installation and application.

5. Low-Distortion and Customizable Design

The YT-7042P-A1 car camera lens is a wide-angle low distortion lens with a plastic barrel. Equipped with 1 IR filter, it can also be customized as a lens without a filter according to your needs. With a distortion of -6.5%, this low-distortion lens is composed of 2 glass lenses and 3 plastic lenses, ensuring high-quality imaging without significant distortion or aberration.

6. Extensive Application Scenarios

The YT-7042P-A1 is widely applicable in various fields, including in-vehicle surround view monitoring lenses, fisheye wide-angle lenses, dash cam lenses, reversing assistance monitoring lenses, passenger monitoring lenses, driver monitoring lenses, in-cabin monitoring lenses, automotive electronic rearview mirror lenses, automotive streaming media rearview mirror lenses, automotive streaming media dash cam lenses, in-car passenger monitoring lenses, automotive streaming media monitoring lenses, sports cameras, handheld gimbal cameras, drone cameras, smart robot cameras, artificial intelligence cameras, consumer electronics cameras, USB high-definition cameras, AI robot monitoring cameras, video conference cameras, smart home monitoring, USB monitoring, IP cameras, and face recognition cameras.

With the YT-7042P-A1 surround view car camera lens, you'll experience unparalleled imaging quality, flexibility, and functionality. It's the ideal choice for enhancing your vehicle's monitoring and safety systems, as well as for various other applications in the field of imaging and surveillance.
