Item No :
YT-5112P-C1Sensor :
1/4''F/NO. :
F2.7EFL :
1.95mmOptical TTL :
12.93mmThread Size :
M12*P0.5FOV(H/V/D) :
112degree/100degree/170degreeStructure :

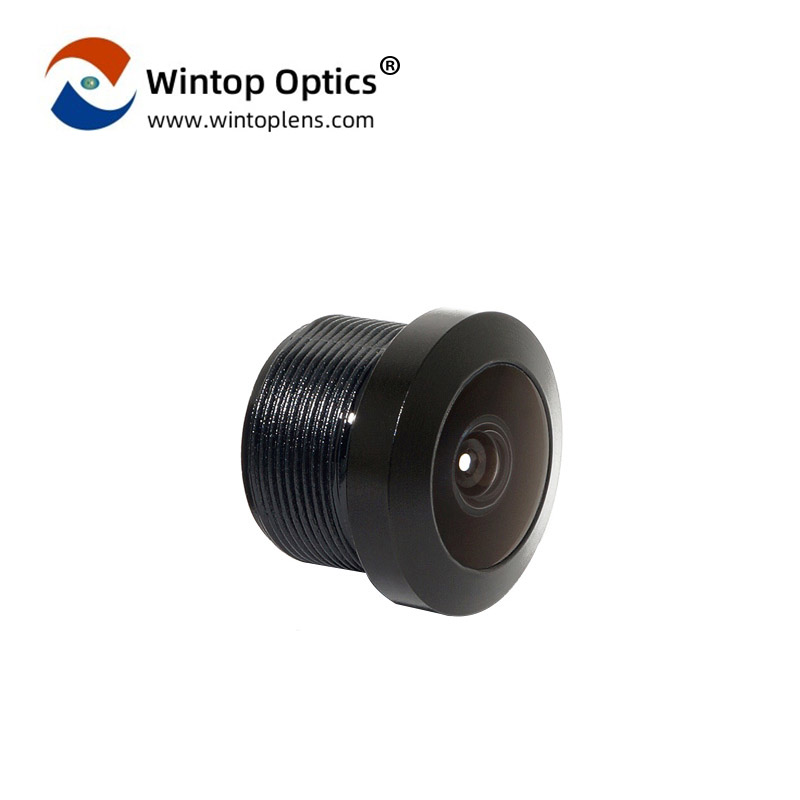

2G2PYT-5112P-C1: The All-Seeing Eye for Heavy-Duty Vehicle Surveillance
know more about YT-5112P-C1 Rearview Lens parameters |
|
EFL (mm) | 1.95mm |
F/NO. | 2.7 |
Optical TTL | 12.93 |
Mechanical TTL | 12.93 |
BACK FOCAL LENGTH | 3.78 |
FLANGE BACK LENGTH | 2.2 |
OPTICAL DISTORTION | -18% |
Storage At Temperature |
-20 ℃~+70 ℃ |
Recent Camera Distance |
0.2M |
Water Level |
IP67 |
Unparalleled Rearview Coverage for Enhanced Safety
The YT-5112P-C1 rearview lenses is specifically designed for trucks, offering an extensive field of vision with an optical focal length (EFL) of 1.95mm and a total length (TTL) of 12.93mm. Its Back Focal Length (BFL) of 3.78mm ensures a clear and focused image, making it the perfect choice for truck rearview surveillance.
Ultra-Wide Field of View for Complete Surveillance
This truck rearview lens is tailored to match Sony's 1/4'' CMOS chip, delivering a 170 degree diagonal field of view (Dfov), a 112 degree horizontal field of view (Hfov), and a 100 degree vertical angle. The maximum imaging circle diameter of 4.9mm captures the entirety of the scene behind the vehicle, providing a comprehensive view that is crucial for safety and awareness.
F/NO2.7 Aperture for Reliable Low-Light Performance
Equipped with an F/NO2.7 lens aperture, the YT-5112P-C1 reversing camera lenses ensures reliable visibility in various lighting conditions. This feature is essential for maintaining a clear view of the road and surroundings, day or night, ensuring that drivers have the confidence to make safe maneuvers.
Customizable Mounting Options for Seamless Integration

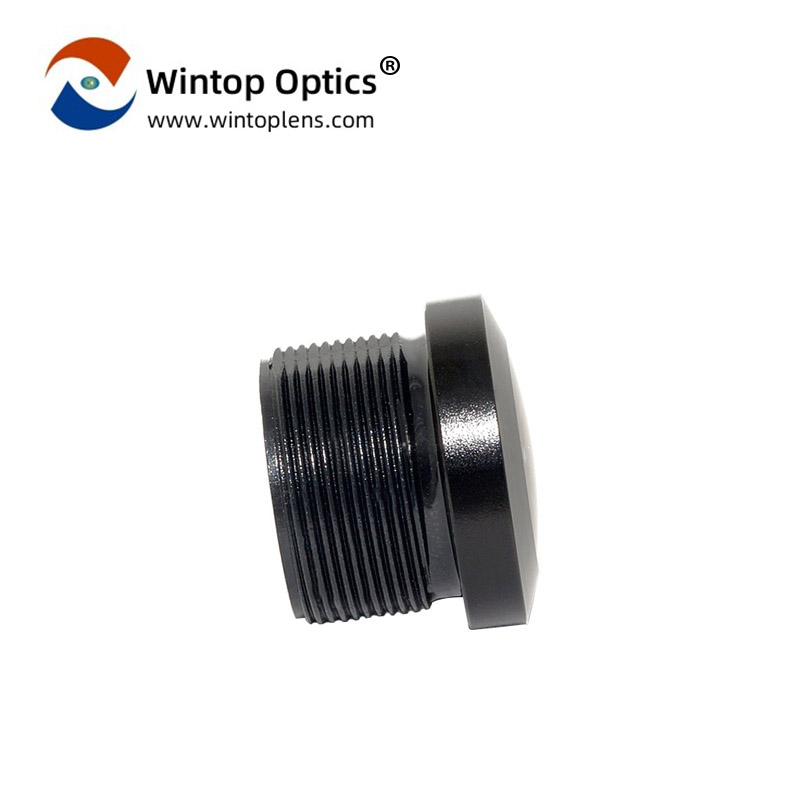

The lens features an M12*P0.5 lens mount, with a front cover diameter of 14mm, offering a secure and standardized connection to various camera systems. It can be customized to an AA Gluing lens according to specific project requirements, ensuring adaptability for different heavy-duty vehicle applications.

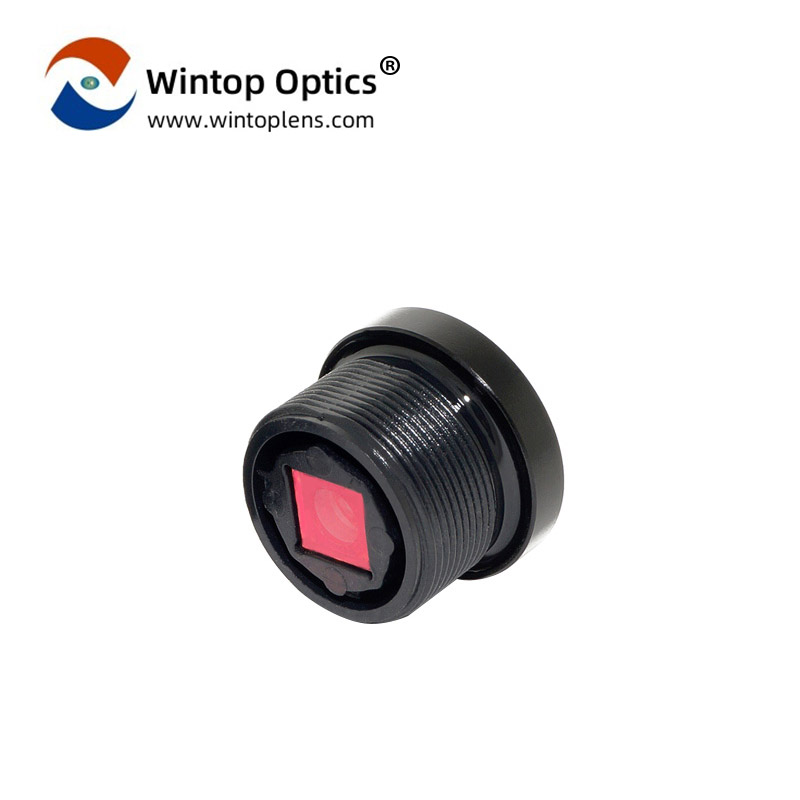

Durable Construction with Advanced Optical Technology
The YT-5112P-C1 rearview lens is encased in a robust plastic barrel, showcasing its high-quality build. It includes a 650nm IR filter, enhancing the lens's performance in various lighting conditions and ensuring clear and vibrant images.
Rugged and Reliable for Extreme Conditions
With an IP67 rating for water and dust resistance and TS16949 certification, the YT-5112P-C1 Reverse Assist Lens is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it suitable for all weather conditions.
Versatile Applications Beyond Rearview Monitoring Lenses
The YT-5112P-C1 rearview lens's utility extends beyond rearview monitoring camera system. It is suitable for a multitude of applications, including passenger monitoring, driver monitoring, cabin surveillance, electronic rearview mirrors, streaming rearview mirrors, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-5112P-C1 truck rearview lenses is the epitome of vehicle rearview lens technology, offering a combination of ultra-wide field of view, reliable visibility in various lighting conditions, and durable construction. Its advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-5112P-C1, ensuring comprehensive surveillance and enhanced safety on the road.
